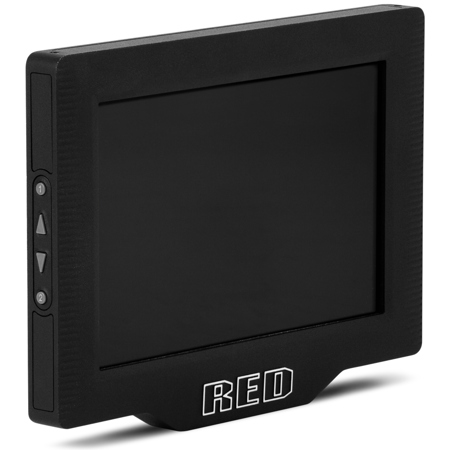

RED Digital Cinema 7" Touchscreen Ultra-Brite LCD Monitor for DSMC2 Camera, 1920x1200

SKU: RD7300026

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor?

The DSMC2 Touch 7.0" Ultra-Brite LCD Monitor boasts a high resolution of 1920 x 1200, providing clear and detailed images.

Can the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor be used in bright outdoor environments?

Yes, the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor is designed with a display panel that provides 2200 nits of brightness, making it ideal for use even in bright outdoor environments.

Does the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor have a touchscreen?

Yes, the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor features a robust, optically-bonded touchscreen with Gorilla Glass for intuitive navigation and review of .R3D clips.

Can the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor be mounted to a camera?

Yes, the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor is lightweight and easily mounts to your BRAIN or any other 1/4-20 mounting surface.

Is the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor suitable for use with gimbals and cranes?

Yes, the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor is an excellent choice for use with gimbals, cranes, and remote viewing, providing flexibility and adaptability in various shooting scenarios.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

RED Digital Cinema LCD Monitor Specifications

  • Material

    Aluminum Alloy

  • Resolution

    1920 x 1200

  • Pixel Density

    323 pixels per inch (ppi)

  • Refresh Rate

    60Hz

  • Response Time

    30ms (black to white)

  • Contrast

    1200:1

  • Brightness

    2200 cd/m2

  • Color Depth

    8-bit RGB, 4:4:4 progressive scan (16.7 million colors)

  • Colors

    83% NTSC

  • Viewing Angle

    +/- 85 deg. all axes

  • Display Orientation

    Landscape, 180 deg. rotation

  • Touch

    Projected Capacitive (PCAP), multi-touch

  • Brain Connection

    Power and Communication via LCD/EVF cable

  • Mounting

    23x 1/4-20 mounting points
    2x 3/8-16 mounting points

  • Hood Mounting

    M3x0.5 x 5mm (max depth)

  • Buttons

    Up, Down, User 1, User 2

  • Power Consumption

    6.1W at full 2200 nits brightness

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Operating Humidity

    0% to 85%, non-condensing

  • Storage Humidity

    0% to 85%, non-condensing

  • Firmware Requirement

    Compatible with DSMC2 firmware v7.2.0 or later

  • Dimensions (HxWxD)

    5.70 x 7.70 x 1.40" (14.48 x 19.56 x 3.56cm)

  • Weight

    1.45 lbs (0.66kg)

  • UPC Code

    856672007881

About RED Digital Cinema LCD Monitor

Are you a filmmaker or videographer in search of a high-quality, durable, and portable touchscreen monitor for your DSMC2 camera Look no further than the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor. This versatile and easy-to-use device offers a superior high-definition viewing experience, even in direct sunlight, making it an ideal companion for outdoor shoots.

With a high resolution of 1920 x 1200, this monitor displays more detail and provides a clearer image than many alternatives on the market. Its display panel boasts 2200 nits of brightness, overcoming viewing difficulties in bright outdoor environments. The wide color gamut display enhances color accuracy, ensuring your footage looks as true-to-life as possible.

The DSMC2 Touch 7.0" Ultra-Brite LCD Monitor stands out with its high pixel density of 323 ppi and a 1200:1 contrast ratio, both of which contribute to delivering exceptional image quality. The robust, optically-bonded touchscreen is fortified with Gorilla Glass, offering the most intuitive way to navigate menus, adjust camera parameters, and review your .R3D clips directly out of the camera.

Designed for convenience, this lightweight display easily mounts to your BRAIN or any other 1/4-20 mounting surface. It also features a LEMO connection for seamless integration with your camera. This monitor is an excellent choice for use with gimbals, cranes, and remote viewing, providing flexibility and adaptability in various shooting scenarios.

For ergonomic monitoring solutions on the move, consider pairing the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor with a DSMC2 LEMO Adaptor A for convenient mounting options away from the DSMC2 camera BRAIN. Experience the difference in clarity, color accuracy, and ease of use with the DSMC2 Touch 7.0" Ultra-Brite LCD Monitor.

RED Digital Cinema LCD Monitor Features

  • High-resolution 7.0" Ultra-Brite LCD Monitor for DSMC2 cameras
  • 1920 x 1200 resolution with 2200 nits of brightness for clear viewing in outdoor environments
  • Wide color gamut display for enhanced color accuracy
  • Robust, optically-bonded touchscreen with Gorilla Glass for intuitive navigation and review of .R3D clips
  • Lightweight and easily mounts to BRAIN or any 1/4-20 mounting surface
  • Ideal for use with gimbals, cranes, and remote viewing, offering versatile shooting options

Key Features

  • High-resolution 7.0" Ultra-Brite LCD Monitor for DSMC2 cameras
  • 1920 x 1200 resolution with 2200 nits of brightness for clear viewing in outdoor environments
  • Wide color gamut display for enhanced color accuracy
  • Lightweight and easily mounts to BRAIN or any 1/4-20 mounting surface
  • Ideal for use with gimbals, cranes, and remote viewing, offering versatile shooting options

What's in the box:

  • RED Digital Cinema 7 " Touchscreen Ultra-Brite LCD Monitor
  • 18 " Right-to-Straight LCD/EVF Cable
  • 9 " RED Arm
  • Large Microfiber Bag
  • RED Digital Cinema 1 Year Limited Warranty
