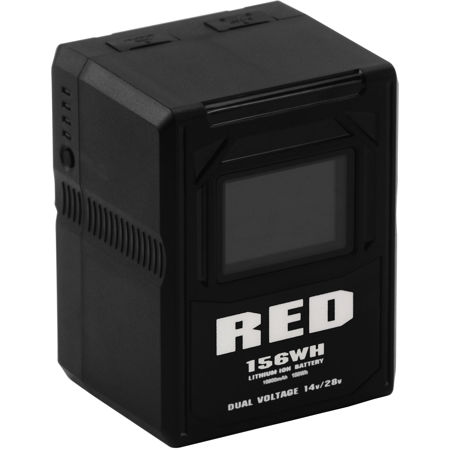

RED Digital Cinema REDVOLT XL 156Wh 14.4V/28.8V Dual Voltage Gold-Mount Rechargeable Lithium-Ion Battery

The REDVOLT XL-G is a Native Dual Voltage battery that can support both High Voltage cameras such as the V-RAPTOR XL and 14 V cameras such as the V-RAPTOR. This battery provides 156 Wh capacity, camera-aware automatic output switching between 14 V or 28 V, and is capable of delivering up to 400 watts of power.

The Core SWX Helix style Gold Mount technology can detect when the battery is mounted to a V-RAPTOR XL, and it switches output to 28 volts at 12 amps by dynamically switching the pack's circuit from a parallel to series cellular arrangement with no power regulation or up-conversion. When placed on a V-RAPTOR, or any other 14 V camera, the battery provides 14 volts at a 24 amps output through the parallel cellular design.
