RED Digital Cinema RED ROCKET-X Specifications

  • Video Output

    DisplayPort - (2), HDMI through adaptor cable
    Serial digital 4:2:2 8/10/12 bit (dual link) - 2BNC
    Stereo 3D Support

  • Audio Output

    Embedded audio - 1BNC (via video out)

  • Timecode

    Vertical (VITC) - 1BNC (via video out)

  • Color Modes

    YCbCr 4:2:2 RGB 4:4:4

  • Internal Processing

    Faster than real-time REDCODE decoding, debayering and scaling up to 6K. Up to 5x faster than RED ROCKET.

  • Audio Formats

    48 kHz, 24-bit

  • System Requirements

    Mac OS X 10.7 or later
    Windows 7 or later
    Linux (Red Hat)
    2048 MB RAM Minimum
    Thunderbolt Compliant

  • PCI Bus Requirements

    PCIe x 16 physical slot + one 6-pin PCI-e power cable

  • Form Factor

    Full length PCIe (approx 12" length), single slot

  • Operating Temperature

    5 Degree C to 40 Degree C (41 Degree F to 104 Degree F)

  • Storage Temperature

    -20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)

  • Operating Humidity

    20% to 80% relative humidity, non-condensing

  • Storage Humidity

    10% to 80% relative humidity, non-condensing

  • Compatibility

    WEAPON 6K
    SCARLET-W
    RAVEN
    EPIC/SCARLET DRAGON
    EPIC/SCARLET M-X
    RED ONE

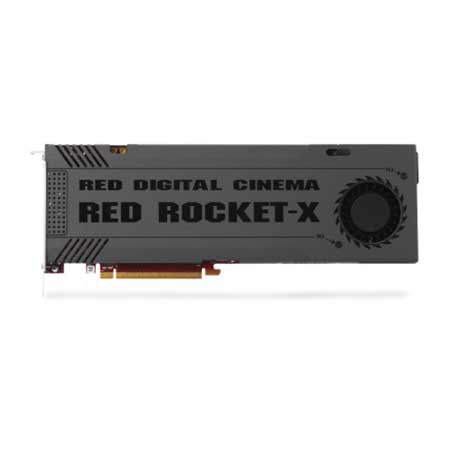

About RED Digital Cinema RED ROCKET-X

Optimized for the 6K RED DRAGON sensor, this product is designed to accelerate your R3D workflow. Using SDI (3G or 1.5G) or Display Port outputs, RED ROCKET-X allows for direct 4K playback and works with 6K files faster than realtime. Compared to the previous RED ROCKET, RED ROCKET-X processes and transcodes files up to 5x faster. A redesigned chassis works to protect the card, which uses a full-length x16 PCI port for installation in your Mac or PC.

The RED ROCKET-X supports all HELIUM, RED DRAGON, RED DRAGON Monochrome, MYSTERIUM, MYSTERIUM-X, and Monochrome R3D files.

RED ROCKET-X comes with a 2-year factory warranty, which can be extended to three years with RED Armor.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • RED ROCKET-X
  • RED Digital Cinema 2 Year Warranty
