RED Digital Cinema DSMC2 Production Kit
See all Red Digital Cinema items

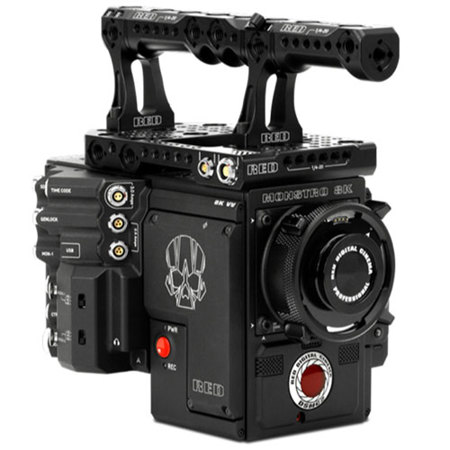

RED Digital Cinema DSMC2 Production Kit, Includes Top Plate and Top Handle, Gold Mount

SKU: RD7900671
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Red Digital Cinema Outrigger Handle: Picture 1 regular
RED Digital Cinema KOMODO Outrigger Handle
$475.00
Red Digital Cinema Top Handle: Picture 1 regular
RED Digital Cinema V-RAPTOR Top Handle
$699.00
Red Digital Cinema Riser Plate: Picture 1 regular
RED Digital Cinema Riser Plate for V-RAPTOR XL Camera
$249.00
Red Digital Cinema Top Handle: Picture 1 regular
RED Digital Cinema Top Handle with Extensions for V-RAPTOR XL Camera
$1,698.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

RED Digital Cinema Production Kit Specifications

  • Material

    Aluminum Alloy

  • Brain Mounting

    4x M4 captive mounting screws

  • Brain Connections

    Power delivery via Rear pogo connector (13-Pin)
    Communication via Rear I/O connector (4x40 Pin)

  • Connectors

    2x 3G-SDI outputs (75 Ohms BNC), 60Hz max frame rate
    Monitor output (75 Ohms BNC), 60Hz max frame rate
    2x 24V Aux Power / Remote Start/Stop Outputs (3-Pin Fischer), 2.5A Shared
    Aux Power Output (2-Pin 0B), 3.0A
    Aux Power Output (2-Pin P-Tap), 3.0A
    DC IN (6-Pin 1B socket)
    2x Balanced Audio inputs (3-Pin, full size XLR female)
    Stereo Headphone output (3.5 mm jack)

  • Connectors (Cont.)

    Timecode (5-pin 0B)
    Genlock input (75 Ohms BNC)
    Gigabit Ethernet input/output (9-Pin 0B)
    CTRL (Tally OUT / RS-232 Rx and Tx) (4-Pin 00)
    USB Power output (Type A socket), 1.5A

  • Audio

    Dual 3-pin XLRs with preamplifiers, uncompressed, 24-bit, 48 KHz
    Input Formats: Balanced Line, Balanced Mic (w/o Phantom Power), Balanced Mic (w/ 48 V Phantom Power)

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 50 deg. C / -4 to 122 deg. F)

  • Operating Humidity

    0% to 85%, non-condensing

  • Storage Humidity

    0% to 85%, non-condensing

  • Firmware Requirement

    Compatible with all DSMC2 firmware v7.2.4 or later

  • Dimensions (WxDxH)

    5.6 x 3.7 x 4.6" (14.22 x 9.40 x 11.68cm)

  • Weight

    2 lbs (0.91kg)

  • UPC Code

    810016940586

About RED Digital Cinema Production Kit

The DSMC2 Production Kit (Gold Mount) combines the DSMC2 Production Module, Production Top Plate and Production Top Handle to provide a comprehensive array of professional I/O connections and mounting points to support studio and lightweight configurations. The Production Top Plate provides 1/4-20 and 3/8-16 mounting points and features an integrated 16-pin 1B LCD/EVF port and 3-pin Fischer port for remote start/stop support. The modular design of the Production Top Handle provides a configurable, rugged handle with an array of 1/4-20 and 3/8-16 mounting points for industry standard accessories. It can be setup in a compact or extended configuration to suit various shooting needs.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • RED Digital Cinema DSMC2 Production Module (Gold Mount)
  • Top Plate
  • Top Handle
  • RED Digital Cinema 1 Year Limited Warranty
