RED Digital Cinema DSMC3 Compact EVF Pack

SKU: RD7900762 MFR: 790-0762
Earn VIP Reward Points

Key Features

  • Experience superior clarity with the DSMC3 Compact EVF's vibrant 1920x1080 OLED display.
  • Achieve precise focus with focus peaking, enhancing your RED Digital Cinema workflow.
  • Enjoy flexible mounting options with the included EVF mount & 15mm rod support system.
  • The RED Digital Cinema Compact EVF is compatible with KOMODO-X, V-RAPTOR & other systems.
  • Operate confidently in diverse conditions; this EVF handles temperatures from 32°F to 104°F.
  • Customize your view with diopter correction (-2.5 to +2.5) for comfortable, clear monitoring.
See More Product Details
Pre Order Now?
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RED Digital Cinema DSMC3 EVF Pack Specifications

DSMC3 Compact EVF: Display

DSMC3 Compact EVF: Display

Jump to...
  • Color/Monochrome

    Color

  • Panel Type

    OLED

  • Screen Resolution

    1920 x 1080

  • Viewing Angle

    32 Degree

  • Touchscreen

    No

  • Contrast Ratio

    10,000:1

  • Image Controls

    Focus Peaking

DSMC3 Compact EVF: Inputs / Outputs

Jump to...
  • Video I/O

    1x Proprietary (Unspecified Signal) Input

  • System Connection

    DSMC2 LEMO

DSMC3 Compact EVF: Optics

Jump to...
  • Diopter Correction

    -2.5 to +2.5

  • Field of View

    32 Degree

DSMC3 Compact EVF: Power

Jump to...
  • Power Consumption

    2.5 W

DSMC3 Compact EVF: Environmental

Jump to...
  • Operating Humidity

    0 to 85%

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Humidity

    0 to 85%

  • Storage Temperature

    -4 to 122 Degree F (-20 to 50 Degree C)

DSMC3 Compact EVF: General

Jump to...
  • Mounting

    1/4"-20 Female

  • Material of Construction

    Aluminum

  • Dimensions

    4.8 x 2.5 x 2.4" (121.9 x 62.5 x 61.7mm)

  • Weight

    12.7 oz (360g)

EVF Mount: General

Jump to...
  • Compatibility

    RED DIGITAL CINEMA RED Compact EVF / DSCM2 RED EVF / DSMC2 Camera Systems / DSMC3 Camera Systems / RED EVF Extension Arm

EVF Mount: Environmental

Jump to...
  • Environmental Protection

    No

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)

  • Operating Humidity

    0% to 85%, non-condensing

  • Storage Humidity

    0% to 85%, non-condensing

EVF Mount: Physical

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Camera Mounting

    Via 15mm bracket. Refer to RED 15mm Top Handle Bracket and V-RAPTOR XL Top 15mm LWS Rod Support Bracket for DSMC3 mounting options.

  • EVF Mounting

    Via attachment wheel

  • Mounting

    2x 15mm Rod
    1x Attachment Wheel
    1x Screw-On EVF Clamp

  • Dimensions

    5.3 x 2.6 x 2.5" (134.9 x 67.3 x 62.5mm)

  • Weight

    13.8 oz (390.1g)

DSMC3 Adapter A: General

Jump to...
  • Compatibility

    RED DIGITAL CINEMA KOMODO-X / V-RAPTOR / V-RAPTOR XL / RED Compact EVF / DSMC2 RED EVF

DSMC3 Adapter A: Inputs / Outputs

Jump to...
  • Ports

    1x LEMO 1B 16-Pin Output (Power, Video, Control)
    1x Run/Stop Trigger Pass-Through

DSMC3 Adapter A: Power

Jump to...
  • Power Source

    Plug-In Power

DSMC3 Adapter A: Environmental

Jump to...
  • Environmental Protection

    No

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Operating Humidity

    0 to 85%

  • Storage Temperature

    -4 to 122 Degree F (-20 to 50 Degree C)

  • Storage Humidity

    0 to 85%

DSMC3 Adapter A: Physical

Jump to...
  • Mounting

    2x 1/4"-20 Mounting Screw
    2x 1/4"-20 Thread

  • Color

    Black

  • Material of Construction

    Aluminum

  • Dimensions

    5.2 x 1.4 x 1.3" (132.1 x 36.1 x 33mm)

  • Weight

    4 oz (113.4g)

EVF Cable

Jump to...
  • Connector 1

    1x LEMO Male Right Angle

  • Connector 2

    1x 16-Pin LEMO Male

  • Cable Length

    18" (45.7cm)

  • UPC Code

    810016944447

1 Accessories for RED Digital Cinema DSMC3 Compact EVF Pack

  • All Accessories (1)
  • Viewfinder Accessories (1)

Designed For Use With:

  • Red Digital Cinema

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About RED Digital Cinema DSMC3 EVF Pack

Experience the ultimate in camera monitoring solutions with the DSMC3 Compact EVF Pack by RED. Designed to be compatible with KOMODO-X (Firmware support arriving in Q1 2024), V-RAPTOR, and V-RAPTOR XL cameras, this pack is a must-have for professionals seeking a versatile and high-quality EVF monitoring solution for their DSMC3 camera system.

The pack includes the RED Compact EVF, a DSMC3 Adapter A, a RED EVF Mount, and an 18" Right-to-Straight EVF cable. The RED Compact EVF features a 1080p micro-OLED display, offering a clear, sharp viewing experience. It also includes user-assignable buttons for quick access to tools such as peaking and magnify, or to control key camera parameters like FPS, ISO, and White Balance.

The DSMC3 Adapter A, included in the pack, provides a single 16-pin output to supply power, video, and data to the EVF. It attaches to the top of the KOMODO-X, V-RAPTOR, or V-RAPTOR XL, and includes a Run-Stop trigger pass-through for added convenience.

The RED EVF Mount, also part of this pack, is a lightweight 15mm LWS rod-based EVF mounting solution. It features a multi-axis telescoping design, allowing you to easily find the optimal position for every shooting scenario. The mount includes a quick-connect screw-on EVF clamp, laser-etched distance and angle markers, machined thumb-screws for quick adjustability, and support for the RED EVF Extension Arm (sold separately).

The 18" Right-to-Straight EVF Cable, compatible with the DSMC3 Adapter A, supports the RED Compact EVF, providing a high-resolution video feed.

Please note, a 15mm mounting bracket is not included. For DSMC3 mounting options, refer to the RED 15mm Top Handle Bracket and V-RAPTOR XL Top 15mm LWS Rod Support Bracket. To prevent damage to the camera, the DSMC3 Adapter A should only be attached or removed while the camera is powered off.

In summary, the DSMC3 Compact EVF Pack offers a comprehensive, high-quality, and flexible EVF monitoring solution for DSMC3 camera systems.

RED Digital Cinema DSMC3 EVF Pack Features

  • Compatible with KOMODO-X, V-RAPTOR, and V-RAPTOR XL cameras
  • EVF monitoring solution for their DSMC3T camera system
  • DSMC3 Adapter A provides a single 16-pin output to supply power
  • Compact EVF gives a clear, sharp viewing experience, and allows the operator to control and adjust key camera parameters
  • EVF Cable Right-to-Straight is compatible with the DSMC3 Adapter A

Key Features

  • Experience superior clarity with the DSMC3 Compact EVF's vibrant 1920x1080 OLED display.
  • Achieve precise focus with focus peaking, enhancing your RED Digital Cinema workflow.
  • Enjoy flexible mounting options with the included EVF mount & 15mm rod support system.
  • The RED Digital Cinema Compact EVF is compatible with KOMODO-X, V-RAPTOR & other systems.
  • Operate confidently in diverse conditions; this EVF handles temperatures from 32°F to 104°F.
  • Customize your view with diopter correction (-2.5 to +2.5) for comfortable, clear monitoring.

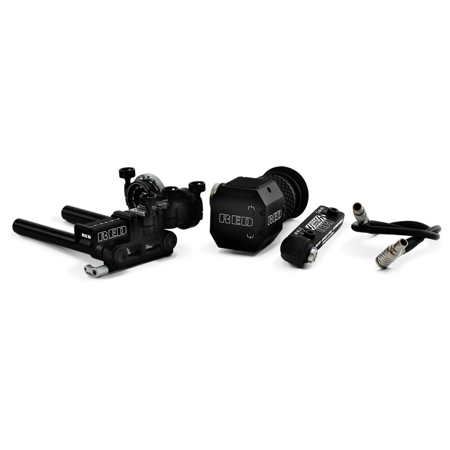

What's in the box:

  • RED Digital Cinema Compact EVF
  • EVF Mount
  • DSMC3 Adapter A
  • 1x 1/4-20 Mount Plate
  • 2x 15mm Rods (2.3")
  • 18" Right-to-Straight EVF Cable
  • RED Digital Cinema 1 Year Limited Warranty
