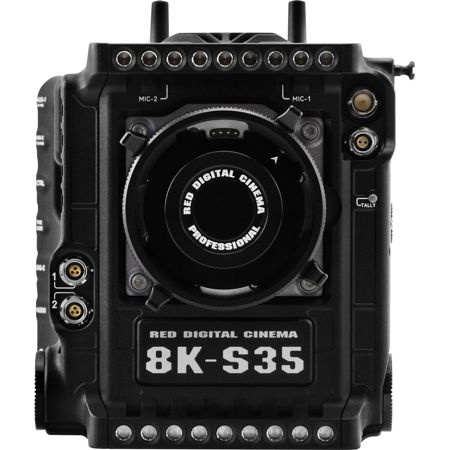

RED Digital Cinema V-RAPTOR XL 8K S35 Cinema Camera, PL, Gold Mount

SKU: RDC7100349 MFR: 710-0349
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the V-RAPTOR XL's 8K S35 CMOS sensor for unmatched image quality.
  • Achieve cinematic excellence with up to 16.5+ stops of dynamic range in your video capture.
  • Enjoy flexible lens options with the included shimmable PL Mount for cinema lenses.
  • Record high frame rate footage at 120fps in 8K or up to 600fps in 2K with Redcode RAW.
  • Utilize the internal ND filters (2-7 stops) for perfect exposure in any lighting condition.
  • Power your shoots with integrated Gold Mount battery interface for reliable, extended use.
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

RED Digital Cinema V-RAPTOR XL Specifications

  • Sensor Type

    V-RAPTOR 8K S35 35.4 Megapixel CMOS

  • Effective Pixels

    8192 x 4320

  • Sensor Size

    26.21 x 13.82mm (Diagonal: 29.63mm)

  • Dynamic Range

    16.5+ stops

  • Built-In ND

    Motorized clear filter and precision controlled electronic ND filter
    Electronic ND minimum density 2 stops, maximum density 7 stops
    Electronic ND selectable increments of 1/3 stops, 1/4 stops, and 1 stop

  • Mount Type

    Interchangeable Lens Mount, Included V-RAPTOR XL PL Mount (Shimmable)
    Optional V-RAPTOR XL Locking Canon EF Mount
    Physically compatible with DSMC Lens Mounts, but does not provide electronic communication or control

  • Battery

    Integrated Dual Voltage 14/26 V Gold Mount battery interface

  • Max Data Rates

    Up to 800 MB/s using RED branded or other qualified CFexpress media cards

  • Redcode Raw Max Frame Rates

    120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
    140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
    160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
    192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
    240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)

  • Redcode Raw Max Frame Rates (Contd.)

    320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
    480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)

  • Playback Frame Rates (Project Time Base)

    23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions

  • Internal Recording Modes

    REDCODE HQ:
    8192 x 4320 up to 60.00 fps
    6144 x 3240 up to 96 fps
    4096 x 2160 up to 240 fps
    2048 x 1080 up to 480 fps

    REDCODE MQ:
    8192 x 4320 up to 60.00 fps
    6144 x 3240 up to 160 fps
    4096 x 2160 up to 240 fps
    2048 x 1080 up to 480 fps

    REDCODE LQ:
    8192 x 4320 up to 120 fps
    6144 x 3240 up to 160 fps
    4096 x 2160 up to 240 fps
    2048 x 1080 up to 480 fps

  • Internal Recording Modes (Contd.)

    REDCODE RAW:
    8192 x 4320 up to 120 fps
    7168 x 3780 up to 140 fps
    6144 x 3240 up to 160 fps
    5120 x 2700 up to 192 fps
    4096 x 2160 up to 240 fps
    3072 x 1620 up to 320 fps
    2048 x 1080 up to 480 fps

  • Redcode Raw

    8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
    7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1
    6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1
    5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
    4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
    3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
    2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1

  • Apple Prores

    Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) 120P
    Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P.

  • Construction

    Aluminum Alloy

  • DC Power Input

    19.5-34 V via 4-pin 2B DC-IN

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)

  • Storage Relative Humidity

    0% to 85% non-condensing

  • Color Management

    Image Processing Pipeline 2 (IPP2)
    Supports 33 x 33 x 33 3D LUTs
    Supports import of CDLs

  • Audio

    Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
    Integrated dual channel mic/line/+48V input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz

  • Autofocus

    Phase Detect and Contrast

  • Focus Type

    Manual Focus Only

  • Focus Mode

    Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF

  • Remote Control

    Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
    Wired control via USB-C (compatible USB-C to Ethernet adapter required) or Gigabit Ethernet allowing remote camera control, live MJPEG preview video feed and remote media offload
    9-Pin 0B GIG-E (1000BASE-T)
    4-Pin 00B CTRL (RS-232)

  • Power Outputs

    Regulated 12 V Outputs
    2x P-TAP Connectors (3AMP Combined)
    1x Rear 2-Pin 0B (3 AMP)
    1x Rear 2-Pin 0B (1.5 AMP)
    1x Front 2-Pin 0B (1 AMP)
    Regulated 24 V Connectors
    2x Front 3-Pin Fischer (3 AMP Combined)

  • Monitor Outputs

    Proprietary Top Accessory Port for Monitoring and Control
    3x 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes (SDI 1/2/3)
    1x 3G-SDI with 3G-SDI and 1.5G-SDI modes (EVF)
    12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
    6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
    3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
    1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
    SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

  • Monitor Options

    DSMC3 RED Touch 7.0" LCD
    IP streamed 1080p live preview wirelessly or wired via USB-C or Ethernet.
    Integrated 2.4" LCD for camera control (no preview video)

  • Camera Sync Options

    Tri-Level Genlock through BNC
    Linear Timecode (LTC) through 5-Pin 0B
    PTP through 9-Pin 0B GIG-E
    Wireless Genlock and Timecode through Integrated Ambient Communication Network (ACN)

  • Red Control

    Access full camera controls and live preview from iOS or Android devices.
    Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C or Ethernet.

  • Media/Memory Card Slot

    Single Slot: CFexpress Type B (CFast 2.0)

  • Video I/O

    3x BNC (12G-SDI) Output
    1x BNC (3G-SDI) Monitor Output

  • Audio I/O

    1x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input
    1x 1/8" (3.5mm) TRS Stereo Headphone Output

  • Power I/O

    1x XLR 4-Pin (19.5 to 34VDC) Input
    2x D-Tap Output
    3x LEMO 2-Pin Output
    2x Fischer 3-Pin Output

  • Other I/O

    1x USB-C Control/Data/Video
    1x 9-Pin (Gigabit Ethernet) Control/Data Input/Output
    1x LEMO 4-Pin (RS-232) Control

  • Tripod Mounting Thread

    3x 1/4"-20 Female (Bottom)
    3x 3/8"-16 Female (Bottom)

  • Accessory Mount

    16x 1/4"-20 Female

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions

    8.5 x 6.5 x 6" (21.59 x 16.51 x 15.24cm)

  • Weight

    8.08 lbs (3.665kg)

  • UPC Code

    810016942122

32 Accessories for RED Digital Cinema V-RAPTOR XL 8K S35 Cinema Camera, PL, Gold Mount

  • All Accessories (32)
  • Digital Cinema Lenses (9)
  • Monitor & Recorder (3)
  • Memory & Storage (1)
  • Batteries & Power Supply (2)
  • Grips & Handles (2)
  • Microphones & Audio (4)
  • Camera Cages and Rigs (1)
  • Adapters & Mounts (1)
  • Lenses (3)
  • Flash & Lighting (6)

About RED Digital Cinema V-RAPTOR XL

V-Raptor 8K.

V-Raptor 8K S35 is a compact and powerful system, fully functional in its smallest form or ready to be built out for any style of production. With the release of the RED V-Raptor S35, you can now accommodate Super 35mm lenses and capture full 8K resolution — even at 8K 120fps. It also comes with 16.5+ stops of dynamic range, an integrated control display, and 4K 12G-SDI outputs. Cinematographers, production companies, rental houses, and independent filmmakers will appreciate the V-Raptor S35’s advanced capabilities. Adding this camera to your gear will prove to be a future- proof investment for years to come.

V-Raptor 8K

Compact Form Factor.

A small & versatile form factor that can accomodate small run & fun shooting styles as well as rigged up on a larger production.

Compact Form Factor.

Integrated Control Display.

With an array of in comprehensive, easy to use controls, in-camera format selection, full button customization & status updates, all in a user friendly display.

Integrated Control Display.

Red Control.

Operate V-Raptor remotely with wireless connectivity via the free Red Control app, available on iOS & Android.

Red Control.

Find the ultimate solution for high-end television and motion picture productions with the V-RAPTOR XL 8K S35 Cinema Camera, PL, Gold Mount. This advanced camera platform is designed to meet the demands of large-scale productions, offering an all-in-one body packed with features and optimized workflows.

The V-RAPTOR XL 8K S35 Sensor offers the widest lens selection at the highest resolution, enabling you to capture smooth and faithful character from classic cinema lenses to broadcast zooms. Choose the sensor format that best suits your shooting style and lens choices, with options including FUJINON 25-1000 F2.8 Zoom, Canon Cine-Servo 50-1000mm T5.0-8.9 PL Wildlife Zooms, and more.

Experience unprecedented precision controls with the V-RAPTOR XL's all-new electronic ND system, designed for no-compromise exposure management. Cycle through 1/4, 1/3 or full stop increments to choose exact exposures without compromising the intended shutter speed or aperture.

The V-RAPTOR XL boasts the most flexible and robust power and I/O ecosystem available in the market today, with features like 4K and HD SDI monitoring, discreet LUT management, and intuitively placed power outputs. It also offers industry-standard integrated I/O arrays, providing ultimate accessibility and on-set support for the DIT.

Enjoy more power options and flexibility with the V-RAPTOR XL, which offers the widest power source compatibility of any comparable cinema camera. Choose from industry-standard v-lock and gold mount bodies, and use standard 14V and 26V V-Lock, Gold Mount, Gold Mount Plus and Core SWX Helix Batteries for maximum flexibility.

The V-RAPTOR XL also features in-camera AI processing and on-sensor enhanced phase detect autofocus, offering the versatility and confidence for users to bring its unparalleled cinematic image performance into new worlds.

Step into the quickly evolving worlds of virtual and remote production with the V-RAPTOR XL, which provides multiple camera side solutions without compromising on image quality or camera system performance. Enjoy benefits like fast-rolling shutter, fine degree of control, sensor sync shift, and PTP sync.

The V-RAPTOR XL also features an all-new three-stage cooling system, ensuring quieter operation, less black shading, and a more robust system no matter the environment. Use standardized and high-performance media with the V-RAPTOR XL for the best reliability and performance possible.

Control one or multiple V-RAPTOR XL's over an IP connection with Red Control Pro, ideal for multi-camera arrays, multi-cam shoots, and live events. Operate the V-RAPTOR XL remotely with wireless connectivity via the free Red Control app, available now for iOS and Android devices.

RED Digital Cinema V-RAPTOR XL Features

  • All-in-one body measuring 8.5 x 6.5 x 6" and weighing 8 lbs with PL Mount
  • Electronic ND system for precise exposure control
  • Interchangeable lens mount
  • Compatibility with both 26V Gold Mount batteries with an array of high performance 12V and 24V outputs
  • Includes a built in Ambient Lockit module capable of wirelessly syncing Timecode and Genlock

Product Documents

User Manual

Key Features

  • Capture stunning visuals with the V-RAPTOR XL's 8K S35 CMOS sensor for unmatched image quality.
  • Achieve cinematic excellence with up to 16.5+ stops of dynamic range in your video capture.
  • Enjoy flexible lens options with the included shimmable PL Mount for cinema lenses.
  • Record high frame rate footage at 120fps in 8K or up to 600fps in 2K with Redcode RAW.
  • Utilize the internal ND filters (2-7 stops) for perfect exposure in any lighting condition.
  • Power your shoots with integrated Gold Mount battery interface for reliable, extended use.

What's in the box:

  • RED Digital Cinema V-RAPTOR XL 8K S35 Cinema Camera
  • PL Mount
  • PL Mount Shim Pack
  • 270W AC Power Adapter
  • 3-Pin XLR-to-4-Pin 2B Power Cable (10')
  • RED Logo Sticker
  • User Manual
  • (Cine Lenses Not Included)
  • RED Digital Cinema 2 Year Limited Warranty
