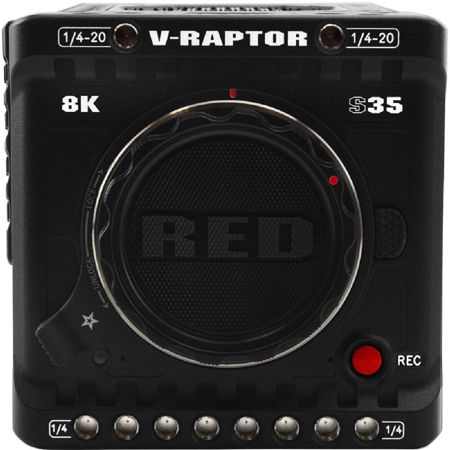

RED Digital Cinema V-RAPTOR 8K S35 DSMC3 Cinema Camera Starter Pack, RF

SKU: RDC7100373 MFR: 710-0414
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the V-RAPTOR 8K S35's impressive low light performance.
  • Record cinematic masterpieces at up to 120fps in glorious 8K resolution for smooth slow-motion.
  • Achieve professional audio with dual-channel inputs, perfect for interviews and on-set recording.
  • Enjoy flexible lens options with the RF mount, adapting to diverse shooting scenarios easily.
  • Experience superior image quality with the global shutter, eliminating motion blur and artifacts.
  • Harness the power of internal RAW recording, preserving every detail for post-production flexibility.
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

RED Digital Cinema V-RAPTOR 8K S35 Specifications

V-RAPTOR 8K S35 Camera

V-RAPTOR 8K S35 Camera

Jump to...
  • Color

    Black

  • Sensor Type

    V-RAPTOR 8K S35 35.4 Megapixel CMOS

  • Effective Pixels

    8192 x 4320

  • Sensor Size

    26.21 x 13.82mm (Diagonal: 29.63 mm)

  • Dynamic Range

    16.5+ stops

  • Mount Type

    Integrated RF mount with RF lens support
    Supports Canon EF lenses via compatible Canon RF to EF mount adapters
    Accepts other Canon RF mount-based lens adapters for diverse lens choices

  • Max Data Rates

    Up to 800 MB/s using RED branded or other qualified CFexpress media cards

  • Redcode Raw Max Frame Rates

    120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
    140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
    160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
    192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
    240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)

  • Redcode Raw Max Frame Rates (Contd.)

    320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
    480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)

  • Internal Recording Modes

    REDCODE HQ:
    8192 x 4320 up to 60.00 fps
    6144 x 3240 up to 96 fps
    4096 x 2160 up to 240 fps
    2048 x 1080 up to 480 fps

    REDCODE MQ:
    8192 x 4320 up to 60.00 fps
    6144 x 3240 up to 160 fps
    4096 x 2160 up to 240 fps
    2048 x 1080 up to 480 fps

    REDCODE LQ:
    8192 x 4320 up to 120 fps
    6144 x 3240 up to 160 fps
    4096 x 2160 up to 240 fps
    2048 x 1080 up to 480 fps

  • Internal Recording Modes (Contd.)

    REDCODE RAW:
    8192 x 4320 up to 120 fps
    7168 x 3780 up to 140 fps
    6144 x 3240 up to 160 fps
    5120 x 2700 up to 192 fps
    4096 x 2160 up to 240 fps
    3072 x 1620 up to 320 fps
    2048 x 1080 up to 480 fps

  • Redcode Raw

    8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
    7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1
    6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1
    5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
    4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
    3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
    2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1

  • Apple Prores

    Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096 x 2160)
    Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080)

  • Construction

    Aluminum Alloy

  • Battery

    Integrated V-Lock battery interface optimized for Micro V-Lock Batteries

  • Dc Power Input

    11-17V via 6-pin DC-IN

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)

  • Storage Relative Humidity

    0% to 85% non-condensing

  • Color Management

    Image Processing Pipeline 2 (IPP2)
    Supports 33 x33 x33 3D LUTs
    Supports import of CDLs

  • Audio

    Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
    Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz

  • Autofocus

    Contrast and Phase Detect

  • Focus Type

    Auto and Manual Focus

  • Focus Mode

    Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF

  • Remote Control

    Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
    Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
    Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter required) allowing remote camera control, live MJPEG preview video feed and remote media offload

  • Monitor Outputs

    Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
    12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
    6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
    3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
    1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
    SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

  • Monitor Options

    DSMC3 RED Touch 7.0" LCD
    Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
    Integrated 2.4" LCD for camera control (no preview video)

  • Red Control

    Access full camera controls and live preview from iOS or Android devices
    Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C

  • Media/Memory Card Slot

    Single Slot: CFexpress Type B (CFast 2.0)

  • Video I/O

    2x BNC (12G-SDI) Output

  • Audio I/O

    1x LEMO 5-Pin Mic/Line (+48 V Phantom Power) Input
    1x 1/8" (3.5mm) TRS Stereo Headphone Output

  • Power I/O

    1x LEMO 6-Pin (11 to 17VDC) Input

  • Other I/O

    1x USB-C Control/Data/Video
    1x 9-Pin Control/Data Input/Output

  • Tripod Mounting Thread

    1/4"-20 Female (Bottom)
    3/8"-16 Female (Bottom)

  • Accessory Mount

    28x 1/4"-20 Female

  • Battery Info

    Optional, included

  • Battery Material

    Lithium Ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

  • Dimensions

    6 x 4.25 x 4.25" (15.24 x 10.79 x 10.79cm)

  • Weight

    Without body cap and CFexpress card: 4 lbs (1.81kg)

DSMC AC Power Adapter Pack

Jump to...
  • Output Connector

    Proprietary

  • Maximum Wattage

    150 W

  • Cable Length

    12' (3.66m)

DSMC3 RED Touch 7" LCD Monitor

Jump to...
  • Material

    Aluminum Alloy

  • Resolution

    1920 x 1200

  • Pixel Density

    322 pixels per inch (ppi)

  • Refresh Rate

    60 Hz

  • Response Time

    25 ms

  • Contrast

    1250:1

  • Brightness

    1300 cd/sq. m

  • Color Depth

    10 bit

  • Colors

    100% DCI-P3

  • Viewing Angle

    +/- 160 Degree all axes

  • Display Orientation

    Landscape, 180 Degree rotation

  • Touch

    Projected Capacitive (pCap), multi-touch

  • Camera Connection

    Power and Communication via RMC cable

  • Mounting

    15mm Rail

  • Hood Mounting

    4x M3 Mounting Points

  • Buttons

    4 Buttons Function 1,2,3 & 4

  • Power Consumption

    Max 18.3W

  • Operating Temperature

    0 Degree C to 38 Degree C (32 Degree F to 104 Degree F)

  • Storage Temperature

    -18 Degree C to 49 Degree C (-0 Degree F to 120 Degree F)

  • Operating Humidity

    0% to 85%, non-condensing

  • Storage Humidity

    0% to 85%, non-condensing

  • Firmware Requirement

    Compatible with camera firmware V1.1 or later

  • Dimensions (H x W x D)

    Monitor: 4.67 x 7.09 x 1.13" (118.7 x 180.1 x 28.8mm)
    Arm: 1.18 x 2.4 x 0.7" (30 x 61 x 17.5mm)
    RED Monitor Interface: 1.67 x 4.25 x 1.51" (42.5 x 108 x 38.23mm)

  • Weight

    Monitor: Approx. 20 oz (568g)
    Arm: Approx. 1 oz (30.1g)
    RED Monitor Interface: Approx. 4.4 oz (126g)

PRO CFexpress 2TB Memory Card

Jump to...
  • Max Data Rates

    V-RAPTOR ST 8K up to 800 MB/s

  • Operating Temperature

    14 Degree F to 158 Degree F (-10 Degree C to 70 Degree C)

  • Storage Temperature

    -4 Degree F to 185 Degree F (-20 Degree C to 85 Degree C)

  • Operating Humidity

    5% to 95%, non-condensing

  • Shock Resistance (Operating)

    50 G @ 10-2000Hz

  • Vibration Resistance (Operating)

    15 G

  • Usable Capacity

    RED PRO CFexpress 2TB bytes

  • Dimensions (H x W x D)

    Approx. 1.52 x 1.17 x 0.15" (38.5 x 29.6 x 3.8mm)

  • Weight

    Approx. 0.24 oz (7g)

CFexpress Card Reader

Jump to...
  • Drive Interface

    CFexpress Type-B

  • Power

    USB Bus-Power

  • System Connection

    USB Type-C Male [USB 3.2 Gen 2x2 (20 Gb/s)]

  • Dimensions (H x W x D)

    Approx. 3.74 x 2.56 x 0.47" (95 x 65 x 12mm)

  • Weight

    4.2 oz (120g)

REDVOLT MICRO-V Battery

Jump to...
  • Compatibility

    RED Compact Dual V-Lock Charger

  • Battery

    Rechargeable Lithium-Ion Battery

  • Battery Capacity

    6600mAh / 98Wh

  • Output Voltage

    14.8 VDC

  • Maximum Load

    '12 A

  • Accessory I/O

    1x D-Tap Output
    1x USB Type-A Output

  • USB Output

    5 V

  • Operating Temperature

    50 Degree F to 113 Degree F (10 Degree C to 45 Degree C)

  • Charging Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    68 Degree F to 122 Degree F (20 Degree C to 50 Degree C)

  • Dimensions (H x W x D)

    3.93 x 2.82 x 1.94" (99.80 x 71.6 x 49.2mm)

  • Weight

    Approx. 19.1 oz (544.3g)

Compact Dual V-Lock Charger

Jump to...
  • Compatibility

    REDVOLT MICRO-V, Standard V-Lock Batteries

  • Input

    100V-240VAC 50/60Hz

  • Charge Current

    One Battery 3A, Two Batteries 1.5A

  • Charging Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    68 Degree F to 122 Degree F (20 Degree C to 50 Degree C)

  • Dimensions (H x W x D)

    4.5 x 5.5 x 3" (114.3 x 139.7 x 76.2mm)

  • Weight

    Approx. 16 oz (453.6g)

V-RAPTOR Wing Grip

Jump to...
  • Material

    Aluminum

  • Mounting to Komodo

    2x M4 captive mounting screws

  • Mounting to V-Raptor

    2x 1/4-20 mounting screws

  • Dimensions (H x W x D)

    4.21 x 1.45 x 1.07" (107 x 36.9 x 27.3mm)

  • Weight

    Approx. 2.8 oz (81.6g)

EXT-to-Timecode Cable

Jump to...
  • Connector 1

    1x 9-Pin LEMO

  • Cable Length

    3' (91.44cm)

  • Weight

    5.6 oz (158.7g)

  • UPC Code

    810016943327

47 Accessories for RED Digital Cinema V-RAPTOR 8K S35 DSMC3 Cinema Camera Starter Pack, RF

  • All Accessories (47)
  • Lenses (3)
  • Batteries & Power Supply (3)
  • Memory & Storage (9)
  • Card Readers (2)
  • Expansion Unit (1)
  • Monitor & Recorder (3)
  • Grips & Handles (1)
  • Lens Adapters & Converters (2)
  • Cables & Adapters (1)
  • Microphones & Audio (4)
  • Tripods & Monopods (5)
  • Headphones (5)
  • Camera Cages and Rigs (1)
  • Recording Monitor (1)
  • Flash & Lighting (6)

About RED Digital Cinema V-RAPTOR 8K S35

V-Raptor 8K.

V-Raptor 8K S35 is a compact and powerful system, fully functional in its smallest form or ready to be built out for any style of production. With the release of the RED V-Raptor S35, you can now accommodate Super 35mm lenses and capture full 8K resolution — even at 8K 120fps. It also comes with 16.5+ stops of dynamic range, an integrated control display, and 4K 12G-SDI outputs. Cinematographers, production companies, rental houses, and independent filmmakers will appreciate the V-Raptor S35’s advanced capabilities. Adding this camera to your gear will prove to be a future- proof investment for years to come.

V-Raptor 8K

Compact Form Factor.

A small & versatile form factor that can accomodate small run & fun shooting styles as well as rigged up on a larger production.

Compact Form Factor.

Integrated Control Display.

With an array of in comprehensive, easy to use controls, in-camera format selection, full button customization & status updates, all in a user friendly display.

Integrated Control Display.

Red Control.

Operate V-Raptor remotely with wireless connectivity via the free Red Control app, available on iOS & Android.

Red Control.

How can you elevate your cinematic production to the next level The answer lies in the V-RAPTOR 8K S35 DSMC3 Cinema Camera Starter Pack, RF. This advanced, high-quality, and professional-grade camera is the most innovative product from Red Digital Cinema, renowned for its superior film and television equipment.

The V-RAPTOR 8K S35 DSMC3 Cinema Camera boasts an impressive 8K resolution, offering unparalleled detail and image quality. It's capable of capturing up to 120 frames per second at 8K, providing smooth, high-resolution footage that surpasses many alternative cameras on the market.

This sophisticated camera system is equipped with an interchangeable lens feature, allowing users to switch between different lenses to suit their specific needs. Whether you're shooting with Fujinon 25-1000 F2.8 Zoom Broadcast Zooms, Canon Cine-Servo 50-1000mm T5.0-8.9 PL Wildlife Zooms, or any other lens from the wide selection compatible with the V-RAPTOR 8K S35, you're guaranteed exceptional results.

The V-RAPTOR 8K S35 DSMC3 Cinema Camera is not just about high resolution and lens versatility. It also offers a dynamic range of 16.5+ stops and a fast sensor scan time, reducing artifacts and enhancing image clarity. The integrated control display and advanced intelligent focus options further enhance the user experience, making this camera a top choice for professionals in the film and television industry.

Despite its compact form factor, this camera is fully functional and ready to be built out for any style of production. It's lightweight enough for run-and-gun shooting styles and can even be used in drones and gimbals. The robust professional I/O array, including 2x 4K 12G-SDI Outputs, a locking audio connector with phantom power, and a 1080p wireless livestream, make this camera a versatile tool for any filmmaker.

The V-RAPTOR 8K S35 DSMC3 Cinema Camera Starter Pack, RF also includes a PRO CFexpress 2TB Memory Card, a CFexpress Card Reader, a REDVOLT MICRO-V Battery, a Compact Dual V-Lock Charger, a V-RAPTOR Wing Grip, and a 3' EXT-to-Timecode Cable. Each of these accessories is designed to enhance the camera's performance and provide users with a comprehensive, professional-grade filming solution.

In conclusion, the V-RAPTOR 8K S35 DSMC3 Cinema Camera Starter Pack, RF is a sophisticated, innovative, and high-quality choice for any professional looking to capture stunning images and video in 8K resolution. Whether you're in the film and television industry or a professional photographer or videographer, this camera offers the flexibility, control, and high-quality output you need to produce exceptional results.

RED Digital Cinema V-RAPTOR 8K S35 Features

  • V-RAPTOR 8K S35 DSMC3 Camera Features
  • Compact body measuring only 6 x 4.25 x 4.25" and just over 4 lbs with integrated RF Mount
  • Rugged dust and water resistant design
  • Robust professional I/O array including 2x 12G SDI outputs and 5-pin audio connector w/phantom power capability
  • Integrated and easy-to-navigate control display
  • USB-C interface for remote control, ethernet offload, and more
  • Compatibility with RED Control app
  • DSMC3 Touch 7" LCD Monitor Features
  • Touchscreen Camera Control
  • 1920 x 1200 Resolution
  • 180deg Rotation, 1800 cd/m Brightness
  • 7" Daylight-Viewable LCD, 322 ppi
  • PRO CFexpress 2TB Memory Card Features
  • For Photos, Videos, and Raw 4K to 12K
  • Magnetic Proof
  • Can Withstand Extreme Temperatures
  • Designed by Angelbird for RED
  • Shock / Dust / Water / X-Ray Proof
  • CFexpress Card Reader Features
  • Bus Powered
  • CFexpress 2.0 Type B Card Slot
  • USB 3.2 Gen 2x2 Interface (20 Gb/s)
  • Write-Protect Switch
  • REDVOLT MICRO-V Battery Features
  • Compact, Micro V-Mount Form
  • Powers RED V-RAPTOR Camera
  • Transmits Camera & Select Accessory Data
  • 98Wh, Supports up to 12A Draw
  • Compact Dual V-Lock Charger Features
  • Charge 2x 98Wh Packs in <5 Hours
  • Charges 2x REDVOLT MICRO-V Batteries
  • Dual-Bay V-Mount Charger, Compact Size
  • Simultaneous Charging at 3 A
  • V-RAPTOR Wing Grip Features
  • Wing Grip is an ideal and versatile handle solution for the V-RAPTOR camera
  • 3' EXT-to-Timecode Cable Features
  • Provides a Timecode connection via 9-pin EXT connector

Product Documents

User Manual

Key Features

  • Capture stunning visuals with the V-RAPTOR 8K S35's impressive low light performance.
  • Record cinematic masterpieces at up to 120fps in glorious 8K resolution for smooth slow-motion.
  • Achieve professional audio with dual-channel inputs, perfect for interviews and on-set recording.
  • Enjoy flexible lens options with the RF mount, adapting to diverse shooting scenarios easily.
  • Experience superior image quality with the global shutter, eliminating motion blur and artifacts.
  • Harness the power of internal RAW recording, preserving every detail for post-production flexibility.

What's in the box:

  • RED Digital Cinema V-RAPTOR 8K S35 DSMC3 Cinema Camera (Black)
  • Mini World Travel Adapter Set
  • DSMC AC Power Adapter Pack (150W)
  • DSMC3 RED Touch 7" LCD Monitor
  • PRO CFexpress 2TB Memory Card
  • CFexpress Card Reader
  • 2x REDVOLT MICRO-V Battery
  • Compact Dual V-Lock Charger
  • 2x V-RAPTOR Wing Grip
  • 3' EXT-to-Timecode Cable
  • RED Logo Sticker
  • User Manual
  • RED Digital Cinema 2 Year Limited Warranty
