RED Digital Cinema V-RAPTOR 8K S35 DSMC3 Cinema Camera Production Pack, RF, Gold Mount
SKU: RDC7100377
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Accessories
Specs
Protection
Q&A

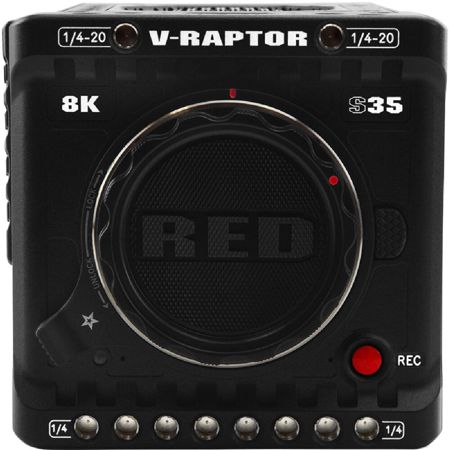

About RED Digital Cinema V-RAPTOR 8K S35
V-Raptor 8K.
V-Raptor 8K S35 is a compact and powerful system, fully functional in its smallest form or ready to be built out for any style of production. With the release of the RED V-Raptor S35, you can now accommodate Super 35mm lenses and capture full 8K resolution — even at 8K 120fps. It also comes with 16.5+ stops of dynamic range, an integrated control display, and 4K 12G-SDI outputs. Cinematographers, production companies, rental houses, and independent filmmakers will appreciate the V-Raptor S35’s advanced capabilities. Adding this camera to your gear will prove to be a future- proof investment for years to come.
Compact Form Factor.
A small & versatile form factor that can accomodate small run & fun shooting styles as well as rigged up on a larger production.
Integrated Control Display.
With an array of in comprehensive, easy to use controls, in-camera format selection, full button customization & status updates, all in a user friendly display.
Red Control.
Operate V-Raptor remotely with wireless connectivity via the free Red Control app, available on iOS & Android.
With the V-RAPTOR 8K S35 DSMC3 Cinema Camera Production Pack, you can unlock the full potential of your cinematic vision. This advanced, high-quality camera system is designed to deliver superior performance in a compact and durable package.
The V-RAPTOR 8K S35 DSMC3 Cinema Camera boasts a multi-format 8K S35 sensor, capable of capturing footage at frame rates up to 120fps at 8K resolution. Its dynamic range of 16.5+ stops and fast sensor scan time ensure reduced artifacts and stunning image quality. The integrated control display and advanced intelligent focus options, including in-camera AI processing and on-sensor enhanced phase detect autofocus, provide versatility and confidence for users.
This professional-grade camera system is compatible with a wide range of lenses, from classic cinema lenses to broadcast zooms, offering the widest lens selection at the highest resolution. The V-RAPTOR 8K S35 sensor ensures smooth and faithful character capture, making it a perfect match for various shooting styles.
The V-RAPTOR 8K S35 DSMC3 Cinema Camera is built on a modernized DSMC3 platform, featuring a compact form factor that can accommodate both small run-and-gun shooting styles and larger production rigs. Weighing just 4lbs, it's versatile enough to be used in drones and gimbals.
The robust professional I/O array includes 2x 4K 12G-SDI Outputs, a locking audio connector with phantom power, 1080p wireless livestream, and a USB-C interface for remote control, offload, and 8K streaming with RED connect. It also features Genlock, timecode-in, GPIO, and CTRL (RS-232) via the integrated 9-pin Ext Port.
The V-RAPTOR 8K S35 DSMC3 Cinema Camera is designed to withstand the rigors of professional use, with a rugged and water-resistant design. It uses standardized and high-performance CF Express media for reliable performance, and is powered by a Micro V-Lock for wide power source compatibility.
The camera can be operated remotely via the free RED control app, available for iOS and Android devices. The RED control pro allows for control of one or multiple V-RAPTOR's over an IP connection, making it ideal for multi-camera arrays, multi-cam shoots, and live events.
The V-RAPTOR 8K S35 DSMC3 Cinema Camera Production Pack also includes a DSMC AC Power Adapter Pack, a DSMC3 RED Touch 7" LCD Monitor, a PRO CFexpress 2TB Memory Card, a CFexpress Card Reader, a REDVOLT MICRO-G Battery, a Compact Dual Gold Mount Charger, a Tactical Top Plate with Gold Mount Battery Adapter, a Top Handle with Extensions Kit, and a V-RAPTOR Expander Blade.
Each component is designed to enhance the functionality and versatility of the V-RAPTOR 8K S35 DSMC3 Cinema Camera, providing filmmakers with a comprehensive solution for high-end video production.
RED Digital Cinema V-RAPTOR 8K S35 Features
- V-RAPTOR 8K S35 DSMC3 Camera Features
- Compact body measuring only 6 x 4.25 x 4.25" and just over 4 lbs with integrated RF Mount
- Rugged dust and water resistant design
- Robust professional I/O array including 2x 12G SDI outputs and 5-pin audio connector w/phantom power capability
- Integrated and easy-to-navigate control display
- USB-C interface for remote control, ethernet offload, and more
- Compatibility with RED Control app
- DSMC3 Touch 7" LCD Monitor Features
- Touchscreen Camera Control
- 1920 x 1200 Resolution
- 180deg Rotation, 1800 cd/m Brightness
- 7" Daylight-Viewable LCD, 322 ppi
- PRO 2TB CFexpress Memory Card Features
- For Photos, Videos, and Raw 4K to 12K
- Magnetic Proof
- Can with stand Extreme Temperatures
- Designed by Angelbird for RED
- Shock/Dust/Water/X-Ray Proof
- CFexpress Card Reader Features
- Bus Powered
- CFexpress 2.0 Type B Card Slot
- USB 3.2 Gen 2x2 Interface (20 Gb/s)
- Write-Protect Switch
- REDVOLT MICRO-G Battery Features
- 98Wh flight-safe capacity
- 12Amp cells for high output
- It's the perfect compact and capable option to power your V-RAPTOR and accessories
- Compact Dual Gold Mount Charger Features
- Dual-simultaneous Gold Mount charging
- Charges REDVOLT MICRO-G batteries
- 3Amps to provide charge for two batteries in less than 4.5 hours
- It will help ensure you can continue shooting with your V-RAPTOR
- Tactical Top Plate with Gold Mount Battery Adapter Features
- Two 2-Pin Aux power outputs
- Assistant side LED light
- Multiple 3/8-16 and 1/4-20 mounting threads
- Pogo connection system to interface with the battery adapter
- P-tap/D-tap and an E-Fuse safety system
- Top Handle with Extensions Kit Features
- Start/Stop Button
- Ergonomic Bocote wood inlays
- Multiple 3/8-16 and 1/4-20 mounting points
- V-RAPTOR Tactical Top Plate is required to secure Top Handle Support Arm to the camera
- V-RAPTOR Expander Blade Features
- Designed to support professional shooting configurations
- Timecode 5-Pin, R/S (Run/Stop) 3-Pin, and RED CTRL 4-pin
- V-RAPTOR Quick Release Platform Pack Features
- Provides a compact lightweight shooting configuration for V-RAPTOR users
- Arca Swiss style mount plate and a secure safety lock system with level locks
- DSMC3 5-Pin to Dual XLR Adapter Features
- Compact solution to break out the 5-Pin ODU port to Dual 3-Pin XLR ports
- Adapter can provide 48v phantom power with mic & line input
- Production Grip Features
- Compatible with V-RAPTOR or other cinema camera
- 7075 Aluminum and Rubber Material
Product Documents
User ManualKey Features
- High-end 8K S35 DSMC3 Cinema Camera with advanced, professional-grade features
- Multi-format sensor capable of up to 120fps @ 8K, with 16.5+ stops dynamic range
- Compact and durable design, ideal for versatile shooting scenarios and conditions
- Advanced intelligent focus options with in-camera AI processing
- Robust professional I/O array for comprehensive connectivity and control
- Includes a range of accessories for enhanced functionality and convenience
What's in the box:
- RED Digital Cinema V-RAPTOR 8K S35 DSMC3 Cinema Camera (Black)
- Mini World Travel Adapter Set
- DSMC AC Power Adapter Pack (150W)
- DSMC3 RED Touch 7" LCD Monitor
- 2x PRO CFexpress 2TB Memory Card
- CFexpress Card Reader
- 4x REDVOLT MICRO-G Battery
- Compact Dual Gold Mount Charger
- Tactical Top Plate w/Battery Adapter (Gold Mount)
- Top Handle w/Extensions
- V-RAPTOR Expander Blade
- (See the Specification Section for Additional Included Items)
- RED Digital Cinema 2 Year Limited Warranty
