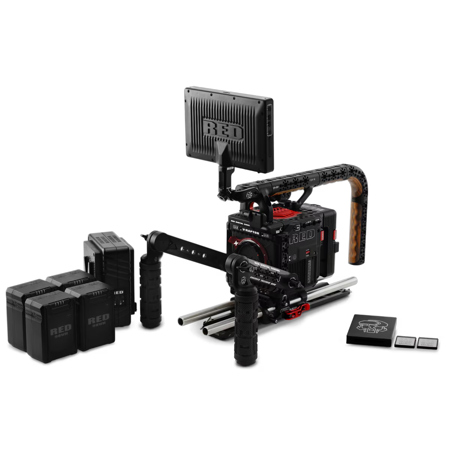

RED Digital Cinema V-RAPTOR (X) 8K VV Cinema Camera Production Pack, Rigid Hinge LCD, Gold Mount

SKU: RDC7100403 MFR: 710-0403
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the V-RAPTOR (X)'s 8K VV Global Shutter CMOS sensor.
  • Achieve cinematic brilliance with 17+ stops of dynamic range for unmatched detail.
  • Use the integrated locking RF mount, adapting to PL & EF lenses for versatility.
  • Record high-speed action with frame rates up to 120fps in 8K for smooth slow motion.
  • Enjoy seamless workflow with dual CFexpress slots, supporting up to 800 MB/s data rates.
  • Utilize the DSMC3 Touch 7" LCD for precise monitoring and intuitive camera control.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

RED Digital Cinema V-RAPTOR (X) 8K VV RH Specifications

V-RAPTOR (X) 8K VV DSMC3

V-RAPTOR (X) 8K VV DSMC3

Jump to...
  • Sensor Type

    V-RAPTOR (X) 8K VV 35.4MP Global Shutter CMOS

  • Effective Pixels

    8192 x 4320

  • Sensor Size

    40.96 x 21.6mm (Diagonal: 46.31mm)

  • Dynamic Range

    17+ stops

  • Mount Type

    Integrated locking RF mount with electronic communication
    Supports /i PL lenses with RED RF to PL Adapters
    Supports Canon EF Adapter with communication and other adapters based on the RF mount

  • Max Data Rates

    Up to 800 MB/s using RED branded or other qualified CFexpress media cards

  • Redcode Raw Max Frame Rates

    120 fps at 8K 17:9, 150 fps at 8K 2.4:1
    140 fps at 7K 17:9, 175 fps at 7K 2.4:1
    160 fps at 6K 17:9, 200 fps at 6K 2.4:1
    192 fps at 5K 17:9, 240 fps at 5K 2.4:1
    240 fps at 4K 17:9, 300 fps at 4K 2.4:1
    320 fps at 3K 17:9, 400 fps at 3K 2.4:1
    480 fps at 2K 17:9, 600 fps at 2K 2.4:1

  • Best Available Redcode Settings

    REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps
    REDCODE LQ and ELQ at 8K 17:9 up to 120 fps
    REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 96 fps
    REDCODE MQ, LQ, and ELQ at 6K 17:9 up to 160 fps
    REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 240 fps
    REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 480 fps

  • Redcode Raw Acquisition Formats

    8K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
    7K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
    6K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
    5K 17:9, 2:1, 2.4:1, 16:9, 1:1
    4K 17:9, 2:1, 2.4:1, 16:9, 1:1
    3K 17:9, 2:1, 2.4:1, 16:9, 1:1
    2K 17:9, 2:1, 2.4:1, 16:9, 1:1

  • Apple Prores

    Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) 120P
    Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P

  • Construction

    Aluminum Alloy

  • Media Type

    CFexpress Type B

  • Battery

    Gold Mount battery

  • DC Power Input

    11-17 V via 6-Pin DC-IN

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)

  • Storage Relative Humidity

    0% to 85% non-condensing

  • Red Global Vision

    Extended Highlights capability to capture more detail and color in extreme dynamic range scenarios
    Phantom Track recording mode to capture multiple LED instances as dedicated clips

  • Color Management

    Image Processing Pipeline 2 (IPP2)
    Supports 33x33x33 3D LUTs
    Supports import and adjustment of CDLs

  • Audio

    Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
    Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz
    3.5mm stereo headphone port

  • Autofocus

    Phase Detect with Face Detection

  • IP Connected

    Compatible with the RED Connect Module for live 8K R3D video over IP or live 4K over SMPTE ST 2110
    Dual band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via FrameIO or Amazon S3
    Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter required) allowing remote camera control, live MJPEG preview video feed an

  • IP Connected (Contd.)

    Wired control via USB-C or Ethernet (compatible USB-C to Ethernet adapter required) for remote camera control, live preview, direct Camera to Cloud workflow and high speed remote media offload

  • Monitor Outputs

    Proprietary Top Accessory Port for Monitoring and Control
    Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
    12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
    6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
    3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
    1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
    SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

  • Monitor Options

    DSMC3 RED Touch 7.0" LCD
    RED Compact EVF with DSMC3 Adapter A
    Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
    Integrated 2.4" LCD for camera control (no preview video)

  • Additional I/O

    Tri-Level Genlock Input via 9-Pin EXT
    LTC Timecode Input via 9-Pin EXT
    RS232 CTRL (using RCP2) via 9-Pin EXT

  • RED Control & RED Control Pro

    Access full camera controls and live preview from iOS or Android devices
    Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location

  • RED Control & RED Control Pro (Contd.)

    Standard app available from the Apple App Store and Google Play Store
    RED Control Pro available via Apple App store only and requires additional purchase
    RED Control works wirelessly or wired via USB-C

  • Dimensions (L x W x H)

    Largest Fixed: 5.9 x 4.5 x 4.3" (149.63 x 115.5 x 108mm)

  • Weight

    Without Body Cap and CFexpress Card: 4.03 lbs (1.83kg)

DSMC3 Touch 7" LCD Monitor

Jump to...
  • Color/Monochrome

    Color

  • Panel Type

    LCD

  • Display Size

    7.0" (17.8cm)

  • Screen Resolution

    1920 x 1200

  • Touchscreen

    Yes

  • Maximum Brightness

    1300 nits / cd/sq. m

  • Contrast Ratio

    '1250:1

  • Refresh Rate

    60 Hz

  • Pixels Per Inch (ppi)

    322 ppi

  • Color Gamut

    100% DCI-P3

  • Video I/O

    1 x USB-C Input/Output

  • Field of View

    160 Degree

  • Power Consumption

    18.3 W (Maximum)

  • Operating Humidity

    0 to 85%

  • Operating Temperature

    32 to 100 Degree F (0 to 38 Degree C)

  • Storage Humidity

    0 to 85%

  • Storage Temperature

    32 to 248 Degree F (0 to 120 Degree C)

  • Mounting

    2x 1/4"-20 Female

  • Material

    Aluminum

  • Dimensions

    7.1 x 4.7 x 1.1" (180 x 118.7 x 28.8mm)

  • Weight

    1.2 lbs (568g)

PRO CFexpress Memory Card

Jump to...
  • Card Type

    CFexpress Type B

  • Storage Capacity

    2TB

  • Bus Type

    PCI-Express 3.0

  • Read Speed

    Maximum: 1785 MB/s
    Sustained: 1785 MB/s

  • Write Speed

    Maximum: 1550 MB/s
    Sustained: 1300 MB/s

  • Operating Temperature

    14 to 158 Degree F (-10 to 70 Degree C)

  • Storage Temperature

    -4 to 185 Degree F (-20 to 85 Degree C)

  • Certifications

    RoHS, CE, UKCA, REACH, Kcc, RCM

CFexpress Card Reader

Jump to...
  • Media Card Reader

    1x CFexpress Type B (CFexpress 2.0 / PCIe 3.0 x4)

  • System Connection

    USB-C Male (3.2 Gen 2x2 (20 Gb/s))

  • Power Source

    USB Bus Power

  • Dimensions (W x H x D)

    3.7 x 2.6 x 0.5" (95 x 65 x 12mm)

  • Weight

    4.2 oz (120g)

REDVOLT MICRO-G Battery

Jump to...
  • Mount / Series Type

    Gold Mount

  • Chemistry

    Lithium-Ion

  • Battery Capacity

    98 Wh

  • Output Voltage

    14.8 VDC

  • Maximum Load

    '12 A

  • Accessory I/O

    1x D-Tap / P-Tap Output
    1x USB-A Output

  • USB Output

    5 V

  • Battery Info

    Optional, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    4

  • Dimensions (W x H x D)

    3.9 x 2.8 x 1.9" (99.8 x 71.6 x 49.2mm)

  • Weight

    1.2 lbs (544.3g)

Compact Dual Charger

Jump to...
  • Charger Compatibility

    RED REDVOLT / RED REDVOLT XL / Gold Mount

  • Number of Battery Bays

    2

  • Multi-Bay Charging Modes

    Independent, Simultaneous

  • Charger Power Source

    AC Power (Cable Included)

  • Charger Power I/O

    1x IEC Female Input
    100 to 240 VAC, 50 / 60 Hz

  • Charger Included Adapter / Cable

    1 x USA Type-A Plug to IEC Male Cable

  • Recharge Time

    1 to 5 Hours (98 Wh Batteries)

  • Indicator

    LED

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    68 to 122 Degree F (20 to 50 Degree C)

  • Dimensions

    5.5 x 4.5 x 3" (139.7 x 114.3 x 76.2mm)

  • Weight

    1 lbs (453.6g)

  • UPC Code

    810016944478

Related Articles & Videos

Cine Gear Expo 2024: Must-Know Cinema Cameras and Equipment

Cine Gear Expo 2024: Must-Know Cinema Cameras and Equipment

Explore top innovations from Cine Gear Expo 2024, featuring cinema cameras, lighting solutions, and filmmaking equipment that will change the industry.
Read more

11 Accessories for RED Digital Cinema V-RAPTOR (X) 8K VV Cinema Camera Production Pack, Rigid Hinge LCD, Gold Mount

  • All Accessories (11)
  • Microphones & Audio (2)
  • Viewfinder Accessories (2)
  • Viewfinders (1)
  • Flash & Lighting (6)

About RED Digital Cinema V-RAPTOR (X) 8K VV RH

Become a part of the future of digital cinema with the RED Digital Cinema V-RAPTOR (X) 8K VV Cinema Camera Production Pack. This cutting-edge camera combines the best features of RED's renowned camera families, offering an unparalleled all-purpose solution for filmmakers. The V-RAPTOR (X) 8K VV integrates the high frame rates, exceptional low-light performance, and stunning resolution of the V-RAPTOR line with the advanced global shutter technology of the KOMODO series. This synergy results in a powerful 8K VV sensor that sets new standards in digital cinema imaging.

Harness the capabilities of RED's newest 8K VV sensor, which delivers the flexibility of large format, global shutter, and high frame rate 8K acquisition, all within a compact, feature-rich body weighing just over 4 lbs. As the first large format global shutter camera available, the V-RAPTOR (X) is built on the foundational features of the original V-RAPTOR, including dual 12G SDI outputs for unique monitoring views, a locking Canon RF style lens mount for versatile lens options, and CFexpress Type B media support for up to 800MB/s formats like 8K 120P. Enhanced in-camera audio pre-amps and a redesigned sensor cavity improve contrast performance and mitigate stray light, further solidifying the V-RAPTOR's legacy.

Experience the revolutionary RED Global Vision suite, which pushes the V-RAPTOR (X) 8K VV to new heights. This suite includes Extended Highlights for enhanced HDR detail and softer SDR highlight roll-off, and Phantom Track for seamless integration in virtual production environments using GhostFrame or Frame Remapping. Capture distinct R3D clips per sub-frame slice and monitor each slice live on-set via SDI.

Stay connected with the V-RAPTOR (X) and DSMC3 platform's advanced connectivity solutions, enabling remote control, in-camera Frame.io integration, AWS direct upload, and RED Connect for live 8K R3D video over IP or live 4K over SMPTE ST 2110. The V-RAPTOR (X) Starter Pack is ideal for owner-operators, run-and-gun shooters, or anyone seeking a nimble and versatile camera setup.

The DSMC3 RED Touch 7" LCD Monitor provides an HD viewing experience with a 1920 x 1200 resolution, peak brightness of 1300 nits, and 100% DCI-P3 Color Gamut coverage for exceptional color accuracy. Powered by SmallHD PageOS, it offers full camera control and features like Waveform, Vectorscope, and more. Its lightweight design includes a removable tilt arm for versatile mounting and connectivity via a single-locking USB-C style DSMC3 RMI Cable.

The PRO 2TB CFexpress 2.0 Type-B Memory Card, developed with Angelbird Technologies, meets the high-performance demands of the V-RAPTOR system. It supports precision recording of high bit-rate files with industrial-grade performance and durability. The RED CFexpress Card Reader ensures fast data transfer to your workstation via USB 3.2 Gen 2x2, with a write-protect switch for added data safety.

Power your V-RAPTOR with the REDVOLT MICRO-G 98Wh 12A Gold Mount Rechargeable Li-Ion Battery. Compact and lightweight, this battery offers high output and compatibility with most Gold Mount cameras and accessories. The RED Compact Dual Gold Mount Charger, designed with Core SWX, provides dual-simultaneous charging, ensuring you're always ready to shoot.

Elevate your filmmaking with the RED Digital Cinema V-RAPTOR (X) 8K VV Cinema Camera Production Pack, a comprehensive solution for capturing stunning, high-resolution footage with unmatched flexibility and ease.

RED Digital Cinema V-RAPTOR (X) 8K VV RH Features

  • RED's newest 8K VV sensor
  • V-RAPTOR (X) leverages the benefits and flexibility of large format
  • Global shutter, high framerate, 8K acquisition
  • All inside of a compact and feature rich body weighing just over 4 lbs
  • 5-Pin to Dual-XLR Audio Adapter
  • Tactical Top Plate, Battery Adapter Plus

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture stunning visuals with the V-RAPTOR (X)'s 8K VV Global Shutter CMOS sensor.
  • Achieve cinematic brilliance with 17+ stops of dynamic range for unmatched detail.
  • Use the integrated locking RF mount, adapting to PL & EF lenses for versatility.
  • Record high-speed action with frame rates up to 120fps in 8K for smooth slow motion.
  • Enjoy seamless workflow with dual CFexpress slots, supporting up to 800 MB/s data rates.
  • Utilize the DSMC3 Touch 7" LCD for precise monitoring and intuitive camera control.

What's in the box:

  • RED Digital Cinema V-RAPTOR (X) 8K VV DSMC3 Camera
  • 2x PRO CFexpress 2TB Memory Card
  • Card Reader
  • 4x REDVOLT MICRO-G Battery
  • Compact Dual Gold Mount Charger
  • DSMC3 Touch 7.0" LCD
  • V-RAPTOR Tactical Top Plate
  • V-RAPTOR Top Handle
  • V-RAPTOR Top Handle Extensions
  • V-RAPTOR Expander Blade
  • V-RAPTOR Advanced Gold Mount Adapter Plus
  • V-RAPTOR QR Platform Pack
  • DSMC3 5-Pin to Dual XLR Adapter
  • Side Ribs
  • Production Plates
  • Production Grips
  • RED Digital Cinema 2 Year Limited Warranty
