RED Digital Cinema V-RAPTOR 8K S35 DSMC3 Cinema Camera Production Pack, RF, Gold Mount

SKU: RDC7100416 MFR: 710-0416
Earn VIP Reward Points

Key Features

  • Capture stunning, high-resolution footage with the V-RAPTOR 8K S35 cinema camera.
  • Achieve cinematic brilliance using the camera's impressive 16.5+ stops of dynamic range.
  • Enjoy versatile lens options with the integrated RF mount, adapting to diverse needs.
  • Record high-speed action with frame rates up to 120fps in glorious 8K resolution.
  • Experience superior low light performance with the advanced CMOS sensor technology.
  • Utilize the included accessories for professional video production and seamless workflow.
See More Product Details
Special Order?Estimated to Ship: 02/18/2026
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the maximum frame rate of the RED V-RAPTOR 8K S35 camera?

The RED V-RAPTOR 8K S35 camera can capture up to 120 frames per second at 8K resolution.

Which lens mounts are compatible with the V-RAPTOR 8K S35?

The V-RAPTOR 8K S35 features an RF lens mount compatible with various lenses, including cinema primes and broadcast zooms.

Does the V-RAPTOR support live streaming?

Yes, the V-RAPTOR supports 8K live cinematic streaming over an IP network using RED Connect.

What type of media does the V-RAPTOR use for recording?

The V-RAPTOR uses CFexpress media for high-performance and reliable recording.

Is the DSMC3 RED Touch 7" LCD Monitor compatible with other RED camera systems?

No, the DSMC3 RED Touch 7" LCD Monitor is specifically designed for the V-RAPTOR and is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.

Reviews about this item

Review Summary

RED Digital Cinema V-RAPTOR 8K S35 Specifications

General

General

Jump to...
  • Color

    Black

  • Tripod Mount

    1/4"-20 Female (Bottom)
    3/8"-16 Female (Bottom)

  • Accessory Mounting Thread

    28x 1/4"-20

  • Operating Conditions

    32 to 104°F / 0 to 40°C

  • Storage Conditions

    -4 to 122°F / -20 to 50°C up to 85% Humidity

  • Dynamic Range

    16.5+ stops

  • Material

    Aluminum

  • Power Consumption

    Max 18.3W

  • Sensor Type

    V-RAPTOR 8K S35 35.4 Megapixel CMOS

  • Sensor Size

    26.21 x 13.82mm (Diagonal: 29.63 mm)

  • Max Data Rates

    Up to 800 MB/s using RED branded or other qualified CFexpress media cards

  • Color Management

    Image Processing Pipeline 2 (IPP2)
    Supports 33 x33 x33 3D LUTs
    Supports import of CDLs

  • Refresh Rate

    60 Hz

  • Max Data Rates

    V-RAPTOR ST 8K up to 800 MB/s

  • Controls

    Run/Stop

Imaging

Jump to...
  • Lens Mount

    Interchangeable Mount with Included Canon RF

  • Lens Communication

    Yes: with Autofocus Support

  • Image Sensor

    26.21 x 13.82 mm (Super35) CMOS

  • Sensor Resolution

    35.4 Megapixel (8192 x 4320)

  • Image Stabilization

    No

  • Built-In ND Filter

    No

  • Built-In CC Filter

    No

  • Internal Filter Holder

    No

  • Capture Type

    Stills & Video

Exposure Control

Jump to...
  • Shutter Type

    Electronic Rolling Shutter

  • Advertised Dynamic Range

    16.5 Stops

  • Focus Mode

    Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF

  • Internal Recording

    REDCODE RAW
    8192 x 4320 up to 120 fps
    7168 x 3780 up to 140 fps*
    8192 x 3456 up to 150 fps
    6144 x 3240 up to 160 fps*
    7168 x 3024 up to 175 fps*
    5120 x 2700 up to 192 fps*
    6144 x 2592 up to 200 fps*
    5120 x 2160 up to 240 fps*
    4096 x 2160 up to 240 fps*
    4096 x 1728 up to 300 fps*
    3072 x 1620 up to 320 fps*
    3072 x 1296 up to 400 fps*
    2048 x 1080 up to 480 fps*
    2048 x 864 up to 600 fps*
    *Sensor Crops During Recording
    REDCODE HQ/REDCODE LQ/REDCODE MQ

  • Video Output

    Proprietary Module
    4096 x 2160
    2048 x 1080

  • Fast-/Slow-Motion Support

    Yes

  • Gamma Curve

    RED IPP2

  • Built-In Microphone

    Mono

  • Audio Recording

    2-Channel, 24-Bit at 48 kHz

  • IP Streaming

    1920 x 1080 (5000.00 Mb/s)

Interface

Jump to...
  • Media/Memory Card Slot

    Single Slot: CFexpress Type B (CFast 2.0)

  • Internal Storage

    No

  • Video I/O

    2x BNC (12G-SDI) Output

  • Audio I/O

    1x 1/8" / 3.5 mm TRS Stereo Headphone Output
    1x 5-Pin LEMO Mic/Line Input (+48 V Phantom Power)

  • Power I/O

    1x LEMO 6-Pin (11 to 17VDC) Input

  • Other I/O

    1x USB-C Control/Data/Video
    1x 9-Pin Control/Data Input/Output

  • Wireless

    Wi-Fi

  • Mobile App Compatible

    Yes: Android & iOS
    App Name: RED Control, RED Control Pro
    Functionality: Remote Control, View Live Feed

  • Global Positioning (GPS, GLONASS, etc.)

    No

Monitor

Jump to...
  • Display Type

    Primary Monitor: Fixed 2.4" Non-Touchscreen LCD

Viewfinder

Jump to...
  • Type

    Support via Video Out Only

Battery

Jump to...
  • Battery

    Micro V-Mount

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical Details

Jump to...
  • Dimensions

    6.1 x 4.3 x 4.3" / 155.5 x 108 x 108 mm

  • Weight

    4.03 lb / 1.83 kg (Body Only)

  • UPC Code

    810016944843

11 Accessories for RED Digital Cinema V-RAPTOR 8K S35 DSMC3 Cinema Camera Production Pack, RF, Gold Mount

  • All Accessories (11)
  • Microphones & Audio (2)
  • Viewfinder Accessories (2)
  • Viewfinders (1)
  • Flash & Lighting (6)

About RED Digital Cinema V-RAPTOR 8K S35

Experience the pinnacle of cinematic technology with the RED Digital Cinema V-RAPTOR 8K S35 DSMC3 Cinema Camera Production Pack. This advanced camera system is engineered to deliver unparalleled performance, offering filmmakers the flexibility and power to capture stunning visuals in any production environment.

The V-RAPTOR 8K S35 features a multi-format 8K S35 sensor, capable of capturing up to 120 frames per second at 8K resolution, ensuring smooth, high-quality footage. With an impressive dynamic range of 16.5+ stops and a fast sensor scan time that is twice as fast as previous models, this camera minimizes artifacts and enhances image clarity. The integrated control display and compact form factor make it ideal for both run-and-gun shooting and larger, rigged productions.

The camera's RF lens mount is compatible with a wide array of lenses, including Fujinon 25-1000 F2.8 Zoom Broadcast Zooms, Canon Cine-Servo 50-1000mm T5.0-8.9 PL Wildlife Zooms, Optimo Style 25-250 4th Generation Spherical Zoom Lens Cinema Zooms, Arri Zeiss Super Speeds Vintage Cinema Primes, and Summilux-C|Leitz Cine Modern Cinema Primes. This versatility allows filmmakers to choose the perfect lens for their creative vision.

The V-RAPTOR's modernized DSMC3 platform includes a robust professional I/O array with features such as 2x 4K 12G-SDI outputs, a locking audio connector with phantom power, and 1080p wireless livestream capabilities. The USB-C interface supports remote control, offloading, and 8K streaming with RED Connect, while the integrated 9-pin Ext Port offers Genlock, timecode-in, GPIO, and CTRL (RS-232) connections.

Advanced intelligent focus options, including in-camera AI processing and on-sensor enhanced phase detect autofocus, provide filmmakers with the confidence to explore new creative possibilities. Upcoming enhancements like face detection and object tracking further expand the camera's capabilities.

The V-RAPTOR is designed for virtual and remote production, offering multiple camera-side solutions without compromising image quality. RED Connect enables 8K live cinematic streaming over an IP network, ensuring seamless integration into modern production workflows.

Built to withstand challenging environments, the V-RAPTOR boasts a rugged and durable design that is water and dust resistant. It utilizes CFexpress media for reliable, high-performance recording, and offers the widest power source compatibility with its Micro V-Lock system.

The DSMC3 RED Touch 7" LCD Monitor enhances the shooting experience with a 1920 x 1200 resolution display, 1300 nits peak brightness, and 100% DCI-P3 Color Gamut coverage. The monitor's responsive menu system, powered by SmallHD PageOS, provides comprehensive camera control and features like Waveform, Vectorscope, and Histogram.

Included in the production pack are essential accessories such as the PRO CFexpress 2TB Memory Card, CFexpress Card Reader, REDVOLT MICRO-G Battery, Compact Dual Gold Mount Charger, Tactical Top Plate with Gold Mount Battery Adapter, Top Handle with Extensions Kit, and V-RAPTOR Expander Blade. Each component is meticulously designed to enhance the V-RAPTOR's functionality and ensure seamless operation in any shooting scenario.

Elevate your filmmaking with the RED Digital Cinema V-RAPTOR 8K S35 DSMC3 Cinema Camera Production Pack, where cutting-edge technology meets unmatched versatility and performance.

RED Digital Cinema V-RAPTOR 8K S35 Features

  • Compact body measuring only 6 x 4.25 x 4.25" and just over 4 lbs with integrated RF Mount
  • Rugged dust and water resistant design
  • Robust professional I/O array including 2x 12G SDI outputs and 5-pin audio connector w/phantom power capability
  • Integrated and easy-to-navigate control display
  • USB-C interface for remote control, ethernet offload, and more
  • Compatibility with RED Control app
  • 4x REDVOLT MICRO-G Batteries

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture stunning, high-resolution footage with the V-RAPTOR 8K S35 cinema camera.
  • Achieve cinematic brilliance using the camera's impressive 16.5+ stops of dynamic range.
  • Enjoy versatile lens options with the integrated RF mount, adapting to diverse needs.
  • Record high-speed action with frame rates up to 120fps in glorious 8K resolution.
  • Experience superior low light performance with the advanced CMOS sensor technology.
  • Utilize the included accessories for professional video production and seamless workflow.

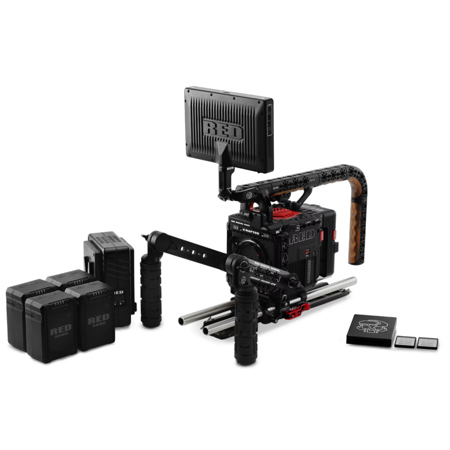

What's in the box:

  • V-RAPTOR 8K S35 DSMC3 Camera (Black)
  • DSMC3 RED Touch 7" LCD Monitor
  • 2x RED PRO CFexpress 2TB Card
  • RED CFexpress Card Reader
  • 4x REDVOLT MICRO-G Battery (Gold Mount)
  • RED Compact Dual Gold Mount Charger
  • Tactical Top Plate w/Battery Adapter Plus (Gold Mount)
  • Top Handle w/Extensions
  • Expander Blade
  • QR Platform Pack
  • DSMC3 RED 5-Pin to Dual XLR Adapter
  • RED Production Grips (Set of 2)
  • Side Ribs
  • Production Plates
  • RED Digital Cinema 2 Year Limited Warranty
