KOMODO-X 19.9MP Super 35mm Global Shutter CMOS
6144 x 3240
27.03 x 14.26mm (Diagonal: 30.56mm)
16.5+ stops
Integrated locking Nikon Z mount
Supports /i PL lenses with RED PL Adapters
Support for other adapters based on the Nikon Z mount or Canon RF Mount
Up to 560 MB/s using RED branded or other qualified CFexpress media cards
80 fps at 6K 17:9 (6144 x 3240)
96 fps at 5K 17:9 (5120 x 2700)
120 fps at 4K 17:9 (4096 x 2160)
240 fps at 2K 17:9 (2048 x 1080)
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 (6144 x 3240) up to 80 fps
REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 (4096 x 2160) up to 120 fps
REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 (2048 x 1080) up to 240 fps
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9. 1:1, and anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700) and 16:9
4K 17:9 (4096 x 2160) and 16:9
2K 17:9 (2048 x 1080)
Dedicated recording in 4K (4096 x 2160) ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, and ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 120 fps
Image Processing Pipeline 2 (IPP2)
Supports 33 x33 x33 3D LUTs
Supports import and adjustment of CDLs
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz
3.5mm stereo headphone port
Phase Detect and Contrast
Proprietary Top Accessory Port for Monitoring and Control
Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control
Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
Tri-Level Genlock Input via 9-Pin EXT
LTC Timecode Input via 9-Pin EXT
RS232 CTRL (using RCP2) via 9-Pin EXT
Wi-Fi (2.4GHz/5GHz) for camera control, video preview, and media offloading
Ethernet via USB Type-C for camera control, video preview, and media offloading
MJPEG 1080p live stream accessible through Wi-Fi and USB Type-C.
PTP for frame level synchronization
R3D live broadcasting available with RED Connect License and 5Gbps Ethernet Adapter
Access full camera controls and live preview from iOS or Android devices.
Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location
Standard app available from the Apple App Store and Google Play Store.
RED Control Pro available via Apple App store only and requires additional purchase.
RED Control works wirelessly or wired via USB Type-C
CFexpress Type B
11-17 V via 6-Pin DC-IN
32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)
-4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)
0% to 85% non-condensing
Integrated V-Lock battery interface optimized for Micro V-Lock Batteries
Optional, not included
Lithium ion
Non-universal
1
Black
Aluminum Alloy
5.1 x 4 x 3.8" (129.37 x 101.26 x 95.26mm)
2.62 lbs (1.18kg) (Without body cap and CFexpress card)
810016945130

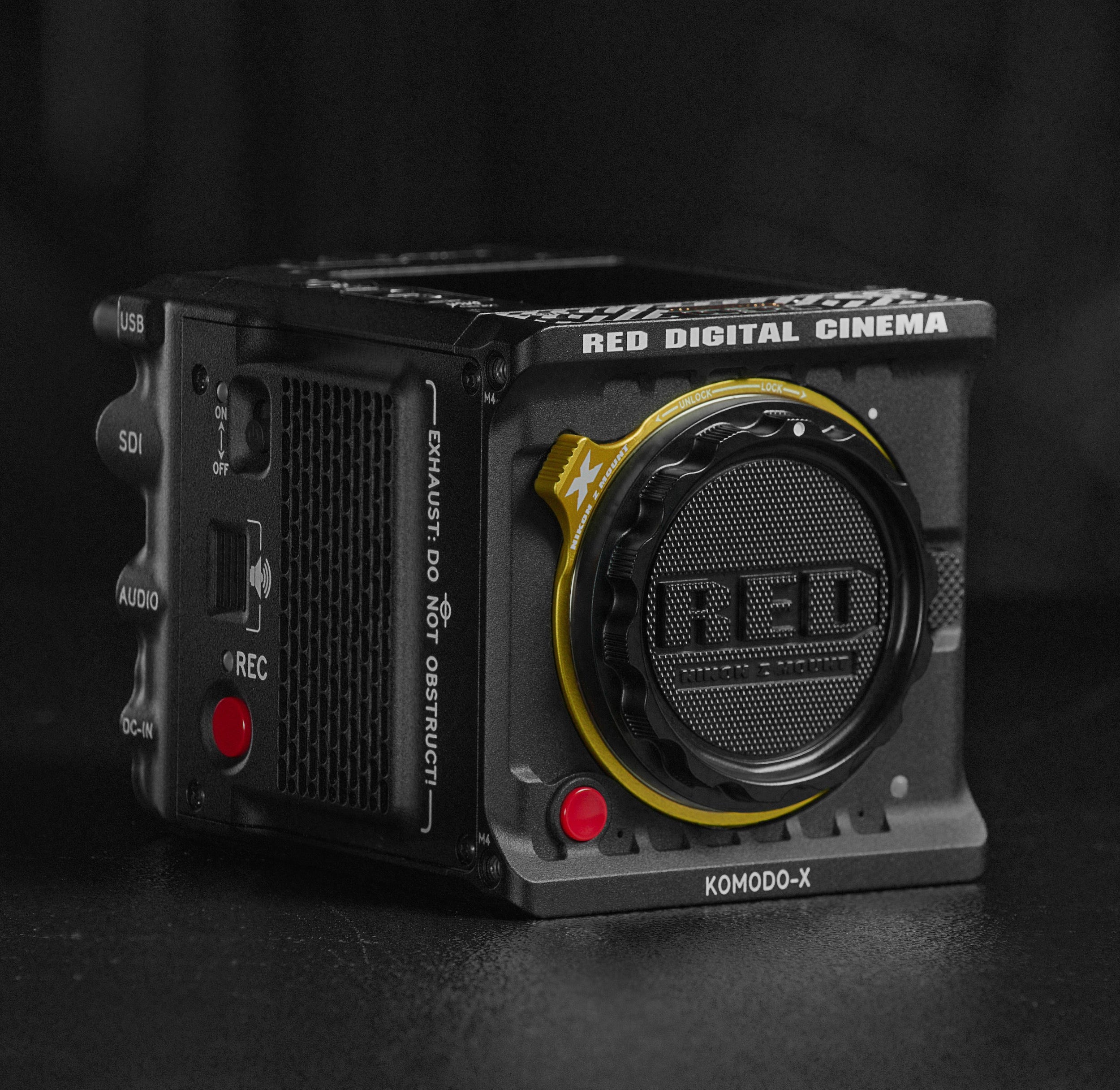

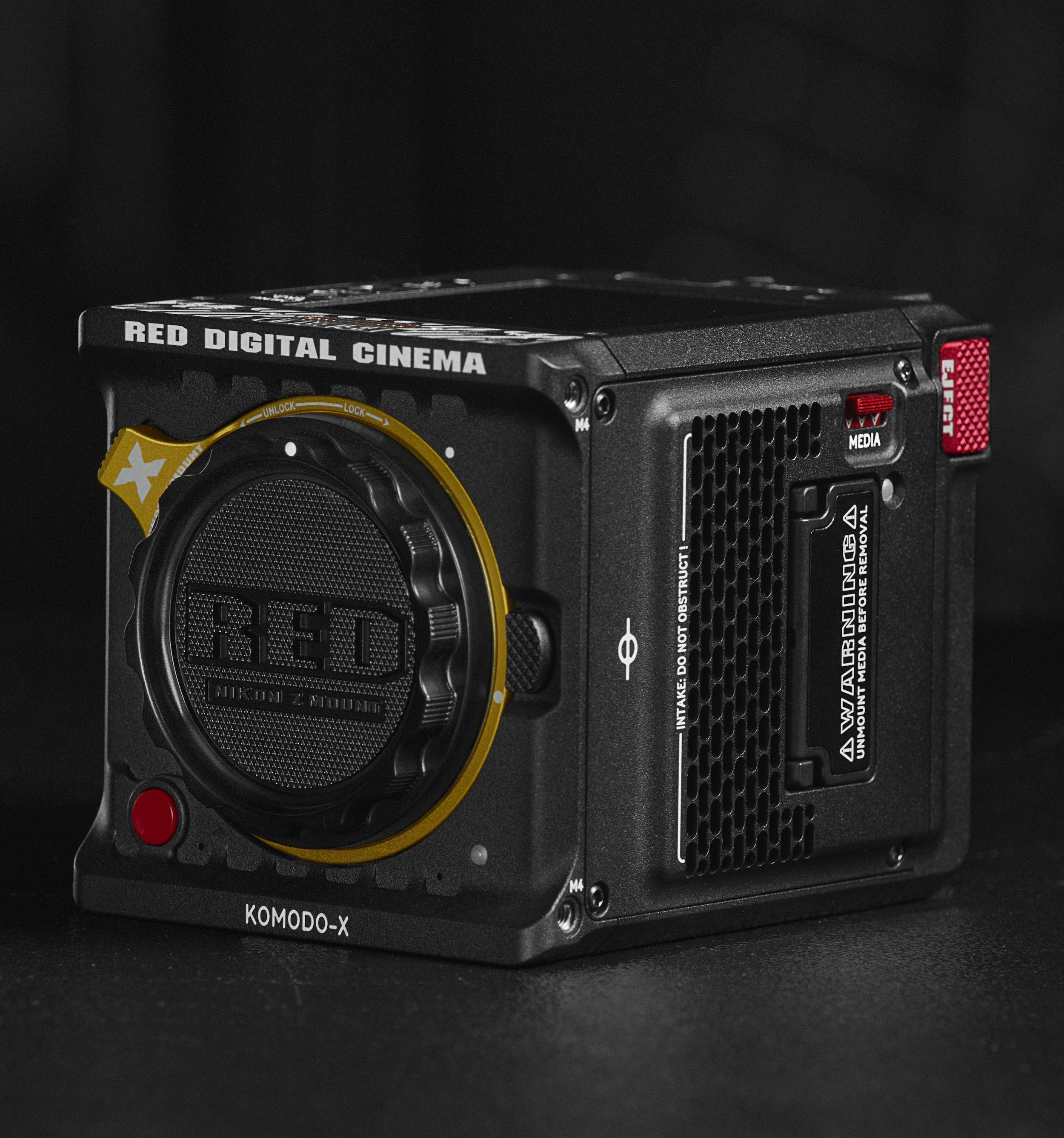

RED Digital Cinema’s latest evolution integrates Nikon’s cutting-edge Z Mount, unlocking a whole new world of lens possibilities while keeping everything you love about the KOMODO-X’s global shutter sensor.
Forget about rolling shutter issues! The KOMODO-X Z Mount’s global shutter tech ensures perfect motion capture, even in high-speed action scenes. No more wobbly lines.
Every detail can be captured in 6K at 80fps and 4K at 120fps. End up with stunning slow- motion footage with unreal clarity.
Weighing only 2.6 lbs and being 4x4x5 inches, you can easily handle this unit. Plus, its rugged design means you can mount it on gimbals, drones, or handheld rigs.
Doesn’t matter how unpredictable the scene! Nikon’s Z lenses bring fast, precise autofocus and flawless sharpness across the frame every time.
You can use it as your A-cam, B-cam, or the ultimate crash cam. The KOMODO-X Z Mount plays well with bigger rigs, but it’s just as deadly when flying solo.
The Z Mount’s ultra-wide diameter and shallow flange depth mean sharper images, better aberration control, and access to Nikon’s state-of-the-art Z lenses.
It is the next generation of cinematic innovation: the RED Digital Cinema KOMODO-X 6K S35 DSMC3 Camera with Nikon Z mount. This cutting-edge camera elevates the KOMODO series by enhancing frame rates, dynamic range, and overall usability, setting a new standard in digital cinema. The integration of the Nikon Z mount introduces Nikon's state-of-the-art optical technology to the cinema world, offering filmmakers unprecedented flexibility and precision.
The KOMODO-X features a revolutionary 6K global shutter sensor, which significantly enhances detail and color accuracy, especially in shadowed areas. This advanced sensor architecture allows for impressive frame rates, achieving 80 fps in 6K and 120 fps in 4K, facilitated by the support for CFexpress media. The camera's robust design includes a professional Micro V-Lock battery interface and newly assignable tactile buttons, ensuring a seamless shooting experience.
The Nikon Z mount, part of the Z CINEMA Series, provides a native locking mechanism that supports smooth iris control, customizable lens response, and adjustable autofocus speeds. Its shallow flange depth allows compatibility with a wide range of lens systems through third-party adapters, making it a versatile choice for filmmakers.
The KOMODO-X's expanded I/O capabilities include a full-sized 1B DC-IN connector, professional-level audio over a locking 5-pin connector, and a native USB Type-C connection. It also supports 12G SDI for up to 4K 60P output and 1080p IP Livestream for web and in-app monitoring. These features, combined with the camera's compact form factor, make it production-ready and ideal for a variety of shooting environments.
Media handling is optimized with the use of CFexpress Type B cards, offering higher capacities and faster offload times compared to CFast media. The camera supports up to 17 hours of recording time with a 4TB CFexpress card, ensuring reliability and performance during extended shoots.
Network capabilities are enhanced with integrated USB Type-C, enabling 5Gbps network control, cloud connectivity, and app-based multi-cam control. The KOMODO-X supports RED Connect and RED Control, allowing for seamless remote operation and 1080p Livestream capabilities.
The camera's interface expansion includes Ethernet offload capabilities, Timecode, and Genlock compatibility, providing robust and powerful systems for professional use. The integrated onboard LCD and DSMC3 Touch Monitor support offer comprehensive control and image preview, while the tactile buttons provide multifunctional control options.
Unlock the full potential of the KOMODO-X with advanced connectivity options, including the RED Control Pro app and RED Connect technology, ideal for multi-camera arrays and live event coverage. Stream full-resolution, live R3D video over an IP Network with ease, making the KOMODO-X a versatile and powerful tool for modern filmmakers.
