KOMODO-X 19.9MP Super 35mm Global Shutter CMOS
6144 x 3240
27.03 x 14.26mm (Diagonal: 30.56mm)
16.5+ stops
Integrated locking Nikon Z mount
Supports /i PL lenses with RED PL Adapters
Support for other adapters based on the Nikon Z mount or Canon RF Mount
Up to 560 MB/s using RED branded or other qualified CFexpress media cards
80 fps at 6K 17:9 (6144 x 3240)
96 fps at 5K 17:9 (5120 x 2700)
120 fps at 4K 17:9 (4096 x 2160)
240 fps at 2K 17:9 (2048 x 1080)
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 (6144 x 3240) up to 80 fps
REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 (4096 x 2160) up to 120 fps
REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 (2048 x 1080) up to 240 fps
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9. 1:1, and anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700) and 16:9
4K 17:9 (4096 x 2160) and 16:9
2K 17:9 (2048 x 1080)
Dedicated recording in 4K (4096 x 2160) ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, and ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 120 fps
Image Processing Pipeline 2 (IPP2)
Supports 33 x33 x33 3D LUTs
Supports import and adjustment of CDLs
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz
3.5mm stereo headphone port
Phase Detect and Contrast
Proprietary Top Accessory Port for Monitoring and Control
Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control
Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
Tri-Level Genlock Input via 9-Pin EXT
LTC Timecode Input via 9-Pin EXT
RS232 CTRL (using RCP2) via 9-Pin EXT
Wi-Fi (2.4GHz/5GHz) for camera control, video preview, and media offloading
Ethernet via USB Type-C for camera control, video preview, and media offloading
MJPEG 1080p live stream accessible through Wi-Fi and USB Type-C.
PTP for frame level synchronization
R3D live broadcasting available with RED Connect License and 5Gbps Ethernet Adapter
Access full camera controls and live preview from iOS or Android devices.
Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location
Standard app available from the Apple App Store and Google Play Store.
RED Control Pro available via Apple App store only and requires additional purchase.
RED Control works wirelessly or wired via USB Type-C
CFexpress Type B
11-17 V via 6-Pin DC-IN
32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)
-4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)
0% to 85% non-condensing
Integrated V-Lock battery interface optimized for Micro V-Lock Batteries
Black
Aluminum Alloy
5.1 x 4 x 3.8" (129.37 x 101.26 x 95.26mm)
2.62 lbs (1.18kg) (Without body cap and CFexpress card)
28 to 135mm
f/4
f/22
Nikon Z
No
Full Frame
95 mm
From Camera Sensor (Wide to Tele): 1.1 to 1.9' / 34 to 57 cm
No
1x 1/4"-20 (via Included Support Foot)
0.8 MOD
Yes
Aluminum
2x 1/4-20 captive mounting screws
KOMODO pogo connector
RECORD start/stop button
2x 1/4-20 mounting holes
360 swivel with quick handle rotation adjustment
32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)
-4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)
0% to 85%, non-condensing
20% to 85%, non-condensing
7.5 x 5 x 2.5" (191 x 127 x 64mm)
Approximately 15.52 oz (440g)
Rechargeable Lithium-Ion Battery
3300mAh / 49Wh
14.4 VDC
6A
50 Degree F - 113 Degree F (10 Degree C - 45 Degree C)
32 Degree F - 104 Degree F (0 Degree C - 40 Degree C)
68 Degree F - 122 Degree F (20 Degree C - 50 Degree C)
RED Compact Dual V-Lock Charger
Optional, included
Lithium ion
Non-universal
1
3.46 x 2.60 x 1.73" (88 x 66 x 44mm)
Approximately 10.15 oz (288g)
810016945482
RED Digital Cinema’s latest evolution integrates Nikon’s cutting-edge Z Mount, unlocking a whole new world of lens possibilities while keeping everything you love about the KOMODO-X’s global shutter sensor.
Forget about rolling shutter issues! The KOMODO-X Z Mount’s global shutter tech ensures perfect motion capture, even in high-speed action scenes. No more wobbly lines.
Every detail can be captured in 6K at 80fps and 4K at 120fps. End up with stunning slow- motion footage with unreal clarity.
Weighing only 2.6 lbs and being 4x4x5 inches, you can easily handle this unit. Plus, its rugged design means you can mount it on gimbals, drones, or handheld rigs.
Doesn’t matter how unpredictable the scene! Nikon’s Z lenses bring fast, precise autofocus and flawless sharpness across the frame every time.
You can use it as your A-cam, B-cam, or the ultimate crash cam. The KOMODO-X Z Mount plays well with bigger rigs, but it’s just as deadly when flying solo.
The Z Mount’s ultra-wide diameter and shallow flange depth mean sharper images, better aberration control, and access to Nikon’s state-of-the-art Z lenses.

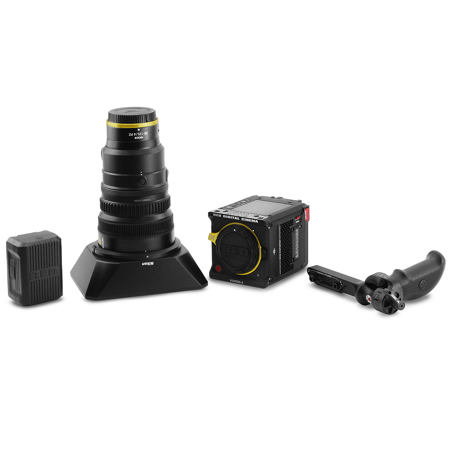

Take your cinematic creations to the next level with the RED Digital Cinema KOMODO-X 6K S35 DSMC3 Camera Power Zoom Pack, featuring the innovative NIKKOR Z 28-135mm f/4 PZ Lens. This advanced camera system is a significant leap forward in the KOMODO series, offering enhanced frame rates, dynamic range, and usability. The integration of the Nikon Z mount introduces cutting-edge optical technology to the cinema world, providing filmmakers with smooth iris control, customizable lens response, and adjustable autofocus speeds. The shallow flange depth of the Nikon Z mount also allows compatibility with a broader range of lens systems through third-party adapters.
The KOMODO-X is equipped with a next-generation 6K global shutter sensor, delivering superior detail and color accuracy, especially in shadowed areas. Its robust body design includes a professional Micro V-Lock battery interface and new assignable tactile buttons for improved functionality. Capture stunning visuals at 80 fps in 6K and 120 fps in 4K, thanks to the advanced sensor design and CFexpress support.
This camera's expanded I/O capabilities include updated monitoring options with DSMC3 Touch LCD support, a built-in USB Type-C port, and newly engineered audio hardware with a locking +48V audio connector. The KOMODO-X maintains a compact form factor while offering professional-grade monitoring, cabling, and remote capabilities like RED CONNECT.
The NIKKOR Z 28-135mm f/4 PZ Lens is a versatile addition, covering essential focal lengths with a constant maximum aperture of f/4. Its internal zoom mechanism ensures stability, making it ideal for gimbals and drones. The lens features a customizable rocker-style zoom control with 11 speed options and an STM autofocus motor for fast, reliable performance.
Enhance your shooting experience with the KOMODO Outrigger Handle, offering 360-degree swivel rotation and integrated Record Start/Stop button. The handle's rugged design includes two 1/4-20 mounting points for additional rigging flexibility.
Power your setup with the REDVOLT NANO-V Battery, a lightweight solution perfect for gimbals and drones. With a 49 Wh capacity and maximum output current of 6 amps, this battery ensures your KOMODO-X and DSMC3 RED Touch 7.0" LCD are ready for action in any configuration.
Experience the future of cinema with the KOMODO-X, where advanced connectivity options like the RED Control Pro app and RED Connect technology unlock unparalleled remote control and streaming capabilities. Whether you're shooting corporate videos, documentaries, or weddings, this camera pack delivers the performance and flexibility you need to capture every moment with precision and clarity.
