KOMODO-X 19.9MP Super 35mm Global Shutter CMOS
6144 x 3240
27.03 x 14.26mm (Diagonal: 30.56mm)
16.5+ stops
Integrated locking Nikon Z mount
Supports /i PL lenses with RED PL Adapters
Support for other adapters based on the Nikon Z mount or Canon RF Mount
Up to 560 MB/s using RED branded or other qualified CFexpress media cards
80 fps at 6K 17:9 (6144 x 3240)
96 fps at 5K 17:9 (5120 x 2700)
120 fps at 4K 17:9 (4096 x 2160)
240 fps at 2K 17:9 (2048 x 1080)
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 (6144 x 3240) up to 80 fps
REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 (4096 x 2160) up to 120 fps
REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 (2048 x 1080) up to 240 fps
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9. 1:1, and anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700) and 16:9
4K 17:9 (4096 x 2160) and 16:9
2K 17:9 (2048 x 1080)
Dedicated recording in 4K (4096 x 2160) ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, and ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 120 fps
Image Processing Pipeline 2 (IPP2)
Supports 33 x33 x33 3D LUTs
Supports import and adjustment of CDLs
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz
3.5mm stereo headphone port
Phase Detect and Contrast
Proprietary Top Accessory Port for Monitoring and Control
Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control
Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
Tri-Level Genlock Input via 9-Pin EXT
LTC Timecode Input via 9-Pin EXT
RS232 CTRL (using RCP2) via 9-Pin EXT
Wi-Fi (2.4GHz/5GHz) for camera control, video preview, and media offloading
Ethernet via USB Type-C for camera control, video preview, and media offloading
MJPEG 1080p live stream accessible through Wi-Fi and USB Type-C.
PTP for frame level synchronization
R3D live broadcasting available with RED Connect License and 5Gbps Ethernet Adapter
Access full camera controls and live preview from iOS or Android devices.
Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location
Standard app available from the Apple App Store and Google Play Store.
RED Control Pro available via Apple App store only and requires additional purchase.
RED Control works wirelessly or wired via USB Type-C
CFexpress Type B
11-17 V via 6-Pin DC-IN
32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)
-4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)
0% to 85% non-condensing
Integrated V-Lock battery interface optimized for Micro V-Lock Batteries
Optional, not included
Lithium ion
Non-universal
1
Black
Aluminum Alloy
5.1 x 4 x 3.8" (129.37 x 101.26 x 95.26mm)
2.62 lbs (1.18kg) (Without body cap and CFexpress card)
Aluminum Alloy
1920 x 1200
322 pixels per inch (ppi)
60 Hz
25 ms
1250:1
1300 cd/ sq. m
10-bit processing (8-bit panel)
100% DCI-P3
+/- 160 Degree all axes
Landscape, 180 Degree rotation
Projected Capacitive (pCap), multi-touch
Power and Communication via RMI cable
15mm Rail
4x M3 Mounting Points
4 Buttons Function 1, 2, 3 & 4
Max 18.3W
0 Degree C to 38 Degree C (32 Degree F to 104 Degree F)
-18 Degree C to 49 Degree C (-0 Degree F to 120 Degree F)
0% to 85%, non-condensing
0% to 85%, non-condensing
Compatible with camera firmware V1.1 or later
Monitor: 7.09 x 4.67 x 1.13" (180.10 x 118.70 x 28.80mm)
Arm: 2.40 x 1.18 x 0.70" (61.00 x 30.00 x 17.50mm)
RED Monitor Interface: 4.25 x 1.67 x 1.51" (108.00 x 42.50 x 38.23mm)
Monitor: Approximately 1.25 lbs (568g)
Arm: Approximately 1.06 oz (30.1g)
RED Monitor Interface: Approximately 4.44 oz (126g)
1TB
V-RAPTOR 8K up to 800 MB/s
-10 Degree C to 70 Degree C (14 Degree F to 158 Degree F)
-20 Degree C to 85 Degree C (-4 Degree F to 185 Degree F)
5% to 95%, non-condensing
50 G @ 10-2000Hz
15 G
RED PRO CFexpress 1TB: 1024209543168 bytes
1.17 x 1.52 x 0.15" (29.6 x 38.5 x 3.8mm)
Approximately 0.24 oz (7g)
CFexpress Type B
USB Bus-Power
2.56 x 3.74 x 0.47" (65.0 x 95.0 x 12mm)
Approximately 4.2 oz (120g)
Aluminum Alloy
KOMODO-X
Micro V-Lock
1x 24V Aux Power / Remote Start/Stop Outputs (3-Pin Fischer), 3A
2x Aux Power Output (2-Pin 0B), 3.0A shared
DC IN (6-Pin 1B socket)
Timecode (5-Pin 0B)
Genlock input (75 Ohm BNC)
CTRL (RS232 Rx and Tx) (4-Pin 00B)
2-position on/off slider switch
Power Information Display (OLED) 0.4 x 0.9" (12 x 23mm)
0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)
0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)
-20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)
3.38 x 3.86 x 2.80" (85.8 x 98 x 71mm) (Connected to BRAIN)
0.90 lbs (410g)
Aluminum & Bocote Hardwood
2x 1/4-20 Captive Mounting Screws
Run/Stop
0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)
-20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)
2.36 x 2.63 x 4.50" (60 x 66.8 x 114.2mm)
Approximately 0.41 lbs (188g)
Aluminum and Rubber
Via 5-Pin Audio Port
2x 3-Pin XLR (Female)
0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)
-20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)
Adapter: 2.54 x 1.31 x 1.70" (64.5 x 33.15 x 43.16mm)
Right Angle Bracket: 0.87 x 1.10 x 1.10" (22 x 28 x 28mm)
Adapter with Bracket: Approximately 0.50 lbs (224.81g)
810016945406
RED Digital Cinema’s latest evolution integrates Nikon’s cutting-edge Z Mount, unlocking a whole new world of lens possibilities while keeping everything you love about the KOMODO-X’s global shutter sensor.
Forget about rolling shutter issues! The KOMODO-X Z Mount’s global shutter tech ensures perfect motion capture, even in high-speed action scenes. No more wobbly lines.
Every detail can be captured in 6K at 80fps and 4K at 120fps. End up with stunning slow- motion footage with unreal clarity.
Weighing only 2.6 lbs and being 4x4x5 inches, you can easily handle this unit. Plus, its rugged design means you can mount it on gimbals, drones, or handheld rigs.
Doesn’t matter how unpredictable the scene! Nikon’s Z lenses bring fast, precise autofocus and flawless sharpness across the frame every time.
You can use it as your A-cam, B-cam, or the ultimate crash cam. The KOMODO-X Z Mount plays well with bigger rigs, but it’s just as deadly when flying solo.
The Z Mount’s ultra-wide diameter and shallow flange depth mean sharper images, better aberration control, and access to Nikon’s state-of-the-art Z lenses.

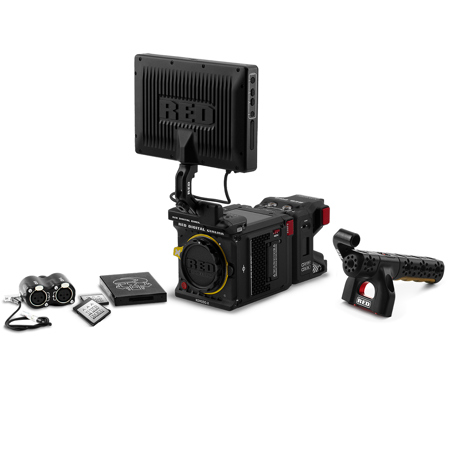

The RED Digital Cinema KOMODO-X 6K S35 DSMC3 Camera Production Pack, featuring the Nikon Z mount and V-Lock, represents the pinnacle of cinematic technology and innovation. As the latest evolution in the KOMODO series, the KOMODO-X camera is engineered to enhance frame rates, dynamic range, and overall usability, setting new standards in digital cinema.
KOMODO-X Camera with Nikon Z Mount
The KOMODO-X introduces a native locking Nikon Z mount, part of the cutting-edge Z CINEMA Series. This collaboration between Nikon and RED integrates Nikon's optical advancements into the cinema realm, offering features like smooth iris control, customizable lens response, and adjustable autofocus speeds. The shallow flange depth of the Nikon Z mount allows compatibility with a wide range of lens systems via third-party adapters, providing filmmakers with unparalleled lens flexibility.
Next Generation Global Shutter Sensor
Equipped with an all-new 6K global shutter sensor, the KOMODO-X boasts a completely revamped sensor architecture. This includes updated pixel design and enhanced detail and color reproduction in shadow areas, delivering superior image quality. The camera supports 6K recording at 80 fps and 4K at 120 fps, thanks to its advanced sensor design and processing capabilities, alongside CFexpress support.
Enhanced Body Design and I/O Options
The KOMODO-X features a robust locking lens mount and a professional Micro V-Lock battery interface, complemented by all-new assignable tactile buttons for intuitive control. The expanded I/O array includes a full-sized 1B DC-IN connector, professional-level audio over a locking 5-Pin connector, native USB Type-C connection, 12G SDI for up to 4K 60P output, and 1080p IP Livestream for web and in-app monitoring.
Advanced Connectivity and Remote Capabilities
The integrated USB Type-C interface enhances the KOMODO-X's remote capabilities, offering 5Gbps network control, cloud connectivity, app-based multi-cam control, and 1080p Livestream capability. The camera is compatible with RED Connect and RED Control, enabling seamless operation and control via iOS and Android devices.
DSMC3 RED Touch 7" LCD Monitor
The DSMC3 RED Touch 7.0" LCD provides an HD viewing experience with a 1920 x 1200 resolution display, peak brightness of 1300 nits, and 100% DCI-P3 Color Gamut coverage for exceptional color accuracy. The monitor features a responsive menu system powered by SmallHD PageOS, offering tools like Waveform, Vectorscope, and Histogram. Its lightweight design includes a removable integrated tilt arm for versatile mounting.
RED PRO CFexpress 1TB Card and Card Reader
Designed in collaboration with Angelbird Technologies, the RED PRO CFexpress 1TB card meets the high-performance demands of the V-RAPTOR system, supporting precision recording of high bit-rate files. The RED CFexpress Card Reader facilitates fast data offloading via USB 3.2 Gen 2x2.
RED Pro V-Lock I/O Module
The RED Pro V-Lock I/O Module provides a variety of input/output connections, including DC Power Input, Genlock, CTRL, Timecode, and AUX ports. It features an operator-side screen displaying power voltage and battery percentage, along with a power switch for efficient battery management.
RED Compact Top Handle and DSMC3 RED 5-Pin to Dual XLR Adapter
The RED Compact Top Handle offers ergonomic design and utility for carrying or shooting, featuring Bocote wood inlays and camera trigger control. The DSMC3 RED 5-Pin to Dual XLR Adapter provides a compact solution for breaking out the 5-Pin ODU port to Dual 3-Pin XLR ports, supporting 48V phantom power with mic and line input.
The RED Digital Cinema KOMODO-X 6K S35 DSMC3 Camera Production Pack is a comprehensive solution for filmmakers seeking cutting-edge technology, flexibility, and performance in a compact form factor.
