Review Summary
Black
No
1/4"-20 Female (Bottom)
3/8"-16 Female (Bottom)
28x 1/4"-20
32 to 104°F / 0 to 40°C
-4 to 122°F / -20 to 50°C up to 85% Humidity
17+ stops
Aluminum
V-RAPTOR XE 8K VV 35.4MP Global Shutter CMOS
40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
Up to 800 MB/s using RED branded or other qualified CFexpress media cards
Image Processing Pipeline 2 (IPP2)
Supports 33 x33 x33 3D LUTs
Supports import and adjustment of CDLs
Nikon Z
Yes
40.96 x 21.6 mm (VistaVision) CMOS
35.4 Megapixel (8192 x 4320)
No
No
No
No
Stills & Video
Electronic Global Shutter
17 Stops
Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF
REDCODE RAW
8192 x 4320 up to 60.00 fps
6144 x 3240 up to 80 fps*
4096 x 2160 up to 120 fps*
2048 x 1080 up to 240 fps*
REDCODE HQ
8192 x 4320 up to 60.00 fps
6144 x 3240 up to 80 fps*
4096 x 2160 up to 120 fps*
2048 x 1080 up to 240 fps*
ProRes 422/ProRes 422 HQ/ProRes 422LT/ProRes 4444/ProRes 4444XQ
4096 x 2160 up to 120 fps*
ProRes 422 HQ Proxy
2048 x 1080 up to 60.00 fps*
*Sensor Crops During Recording
SDI/BNC
4096 x 2160 up to 60.00 fps
2048 x 1080 up to 60.00 fps
Yes
RED IPP2
Mono
2-Channel, 24-Bit at 48 kHz
No
Single Slot: CFexpress Type B (CFast 2.0)
No
2x BNC (12G-SDI) Output
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
1x 5-Pin LEMO Mic/Line Input (+48 V Phantom Power)
1x LEMO 6-Pin (11 to 17VDC) Input
1x USB-C Control/Data/Video
1x 9-Pin (Genlock, RS-232) Control/Data Input/Output
1x 9-Pin (Timecode)
Wi-Fi
No
No
Primary Monitor: Fixed 2.4" Non-Touchscreen LCD
Micro V-Mount
optional, not included
Lithium-ion
Non-universal
1
6.1 x 4.5 x 4.3" / 155.5 x 115.5 x 108 mm
4 lb / 1.8 kg (Body Only)

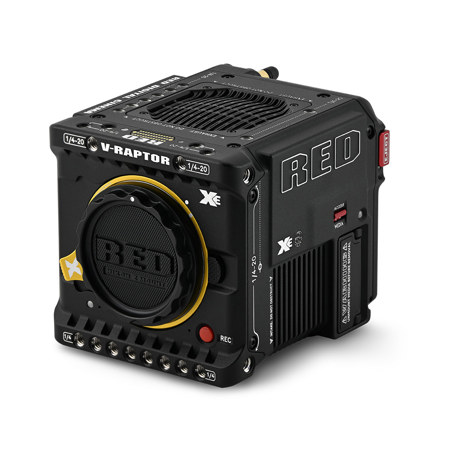

V-RAPTOR XE is built with the core features for modern filmmakers and supercharged with RED’s flagship image quality.

Record in stunning 8K full-frame resolution at up to 60 fps.
The large-format global shutter sensor captures clean and detailed images without rolling shutter artifacts.
Shoot 4K at up to 120 fps or 2K at up to 240 fps, all while retaining RED’s signature color science and dynamic range.

Unlock maximum post-production flexibility. REDCODE RAW (R3D) preserves detail, dynamic range, and color data, ensuring professional-grade control in grading and finishing.
Run multiple monitoring setups on set. The two 12G-SDI outputs allow you to send unique views to different monitors, so crew members can see exactly what they need.

The V-RAPTOR XE comes in Nikon Z mount, with a secure locking design and shallow flange depth for flexibility with a wide range of lenses.

Capture with confidence at speeds up to 800MB/s. CFexpress Type B cards handle the high data demands of 8K RAW recording while keeping workflows efficient.
Stay ready for any shot. Pre-record mode ensures you never miss action, while simultaneous proxy recording delivers faster turnaround in post-production.
Shoot clean, detailed images in challenging light. The tightly managed thermal system and R3D recording format give you outstanding performance in shadows and highlights.
Upload directly from camera to the cloud. With Frame.io and AWS integration built in, plus wireless and wired support for RED Control and RED Control Pro, you can manage, share, and control your camera from anywhere.
