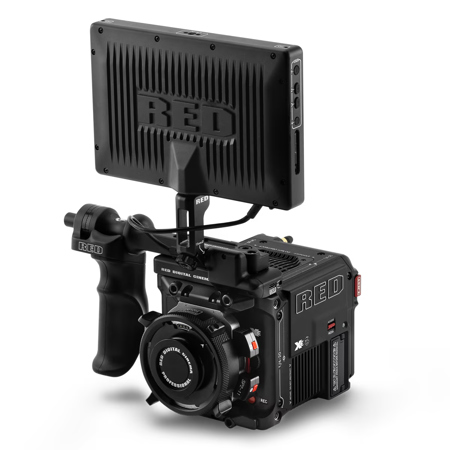

RED Digital Cinema V-RAPTOR XE 8K VV Camera Cine Essentials Pack, Canon RF

Essential by Design

V-RAPTOR XE is built with the core features for modern filmmakers and supercharged with RED’s flagship image quality.

8K VV global shutter sensor

Record in stunning 8K full-frame resolution at up to 60 fps.

The large-format global shutter sensor captures clean and detailed images without rolling shutter artifacts.

High-speed capture options

Shoot 4K at up to 120 fps or 2K at up to 240 fps, all while retaining RED’s signature color science and dynamic range.

Canon RF mount

The V-RAPTOR XE comes in Canon RF mount, with a secure locking design and shallow flange depth for flexibility with a wide range of lenses.

R3D recording format

Unlock maximum post-production flexibility. REDCODE RAW (R3D) preserves detail, dynamic range, and color data, ensuring professional-grade control in grading and finishing.

Dual 12G-SDI outputs

Run multiple monitoring setups on set. The two 12G-SDI outputs allow you to send unique views to different monitors, so crew members can see exactly what they need.

CFexpress Type B media

Capture with confidence at speeds up to 800MB/s. CFexpress Type B cards handle the high data demands of 8K RAW recording while keeping workflows efficient.

Proxy and pre-record modes

Stay ready for any shot. Pre-record mode ensures you never miss action, while simultaneous proxy recording delivers faster turnaround in post-production.

Next-level low-light performance

Shoot clean, detailed images in challenging light. The tightly managed thermal system and R3D recording format give you outstanding performance in shadows and highlights.

IP-connected workflows

Upload directly from camera to the cloud. With Frame.io and AWS integration built in, plus wireless and wired support for RED Control and RED Control Pro, you can manage, share, and control your camera from anywhere.

The V-RAPTOR XE RF Mount Cine Essentials Pack provides key accessories to the V-RAPTOR XE camera system

Essentials of Filmmaking
V-RAPTOR XE RF Mount brings the uncompromised image quality of RED's flagship large format global shutter sensor to a whole new segment of filmmakers. Leveraging the V-RAPTOR (X) platform, V-RAPTOR XE includes the essential features for modern filmmaking, including R3D recording at 8K VV 60P, 4K 120P, and 2K 240P.

V-RAPTOR XE features 2x 12G SDI's capable of unique monitoring views, a locking Canon RF style lens mount for secure and flexible lens selection, CFexpress Type B media for up to 800MB/s recording, as well as pre-record and simultaneous proxy record capabilities.

See In VV
V-RAPTOR XE offers the next level in image quality, I/O, and workflow to filmmakers looking to expand on the features of KOMODO-X. The 8K VV sensor has over 50% more pixels and overall size when compared to KOMODO-X's 6K S35, resulting in more creative control over depth of field, stabilization, and detail capture. Along with a tightly managed thermal system, V-RAPTOR XE offers best in class lowlight performance and post-latitude when paired with the R3D recording format.

IP Connected
V-RAPTOR XE features the same in-camera cloud upload integration with Frame.io or AWS, as well as compatibility with RED Control and RED Control Pro via wireless or wired configuration for complete remote control in any environment.

- DSMC3 RED Touch 7.0" -
The DSMC3 RED Touch 7.0" LCD offers an HD viewing experience for recording and viewing footage on the V-RAPTOR camera system. A 1920 x 1200 resolution display panel with peak brightness of 1300 nits and high pixel density (at 322 ppi), not only provides the optimal experience when viewing footage, but also features 100% DCI-P3 Color Gamut coverage for tremendous color accuracy. The monitor also features full control over the camera via the new responsive menu system powered by SmallHD PageOS, bringing features like Waveform, Vectorscope, Histogram, False Color, Color Picker, Pixel Zoom and more.

The lightweight display features a removable integrated tilt arm with the capability to rotate 180 degrees for versatile mounting options. It also boasts the latest generation pogo pins to provide power and video to the monitor in addition to the ability to connect via a single-locking USB-C style DSMC3 RMI Cable for video and power. No additional SDI or power cables are needed.

- RED RF to PL Adapter with Electronic ND Filter Pack -
The RED KOMODO RF to PL w/ Electronic ND Filter Adapter Pack integrates the same precise electronic ND control as used in the V-RAPTOR XL into a robust PL mount solution for the RED KOMODO and KOMODO-X.

The pack includes two filters; A clear filter for when no ND is needed and an Electronic ND Filter with a 2-7 stop range. It features precise control of 1/4, 1/3 or full stop increments which allows choosing the exact exposure without compromising the intended aperture.

Each clear and electronic ND filters thickness are measured and paired together to ensure no back focus shifts when switching between filters. ND can be controlled via the integrated buttons on the Electronic ND Filter, onboard LCD, DSMC3 RED Touch 7.0" LCD, RED Control, RED Control Pro, web interface, or any other RCP2 compatible remote control, allowing for easy access to exposure no matter how the camera is configured.

Supporting Cooke /i lens communication and record triggering, the RF to PL Adapter w/ Electronic ND expands the functionality of the camera's native RF lens mount for professional applications. Constructed of a titanium core, the shimmable RF to PL Adapter is resistant to environmental temperature changes, providing consistent and precise back focus.

The RED KOMODO RF to PL Adapter w/ Electronic ND Filter Adapter Pack includes both the KOMODO Side Ribs and Adapter Support Brackets to provide additional rigidity and a native-like mount experience.

Lens Compatibility
While the vast majority of PL lenses are compatible with the RED RF-PL Adapter w/ Electronic ND Filter, a small selection of PL lenses are not compatible due to their rear protrusion depth.

- KOMODO Outrigger Handle -
The KOMODO Outrigger Handle is a low profile handle that offers full 360 degree swivel rotation and adjustment for maximum flexibility. Rugged design and integrated Record Start/Stop button, shooters can go into any project always ready to capture the perfect shot. The handle also has two 1/4-20 mounting points for additional flexibility in rigging.

The KOMODO Outrigger Handle is ideal for shooters who use one hand on the handle for grip and record button access, and the other for lens adjustments or support.
