RDL EZ-MPA1 Microphone Preamplifier, Stereo Output with Compressors

SKU: RDEZMPA1 MFR: EZ-MPA1
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this low-noise microphone preamplifier.
  • Enhance your recordings with a wide 50 dB gain range for optimal audio levels.
  • Easily connect to various devices using XLR inputs and RCA/Mini jack outputs.
  • Enjoy robust build quality in a compact, 1/3 rack width microphone preamp.
  • Utilize switch-selectable compression to control dynamic range effectively.
  • Monitor your levels with a dual-LED VU meter for precise audio adjustments.
See More Product Details
Special Order?Estimated to Ship: 08/25/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RDL EZ-MPA1 Specifications

  • Input

    1.2 kOhms balanced on XLR jack, mic-level, -11 dBu max

  • Level control

    Off to 50 dB gain

  • Outputs (2)

    -10 dBV nominal on RCA jacks or Mini jack, +16 dBV max. without compression, -4 dBV max. with 20 dB compression

  • Frequency Response

    80 Hz to 40 kHz (+/-1 dB, mic input, -6 dB at 20 Hz with integral high-pass filter)

  • THD+N

    < 0.1% (35 Hz to 20 kHz, -50 dBu input)

  • Compression

    20 dB range, switch-selectable

  • CMRR

    > 55 dB (20 to 20 kHz)

  • Metering

    Dual-LED VU Meter, calibrated to -10 dBV output

  • Phantom

    Switch-selectable 24 V (IEC 61938: 2013)

  • Noise

    < -65 dB (below -10 dBV output, -50 dBu input)

  • 24 Vdc power supply current

    55 mA (idle), 80 mA (max.), 100 mA (max. with phantom)

  • Mounting size

    1/3 rack width

  • Dimensions (WxD)

    Case: 5.75 x 3" (14.61 x 7.62cm)

  • UPC Code

    813721010094

About RDL EZ-MPA1

Let the EZ-MPA1 Microphone Preamplifier elevate your audio experience. This high-quality, professional-grade preamplifier is equipped with a front-panel volume control and audio level metering, offering precise control over your sound. With the flip of a switch, engage the built-in audio compressor to effectively manage overloads and prevent clipping during high-level audio bursts or peaks from the microphone.

Designed to support both dynamic and condenser microphones, this versatile preamplifier features a rear-panel switchable phantom voltage. The preamplified mic signal is efficiently fed into both channels of the line output, available on RCA or MINI jacks. LED VU metering further enhances the user experience by facilitating easy level adjustment.

The EZ-MPA1 is not just a microphone preamplifier; it's a solution to add microphone inputs to mixers and amplifiers with line inputs. It's a reliable choice for a variety of settings, including houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms, studios, and commercial sound systems.

Experience the advantages of this durable and efficient preamplifier. It's optimized for dynamic or condenser mics, accommodates high input levels, and increases headroom with lower gain settings. The compressor limits clipping over a wide dynamic range, ensuring your audio is always at its best. Trust in the EZ-MPA1 Microphone Preamplifier for your professional audio needs.

RDL EZ-MPA1 Features

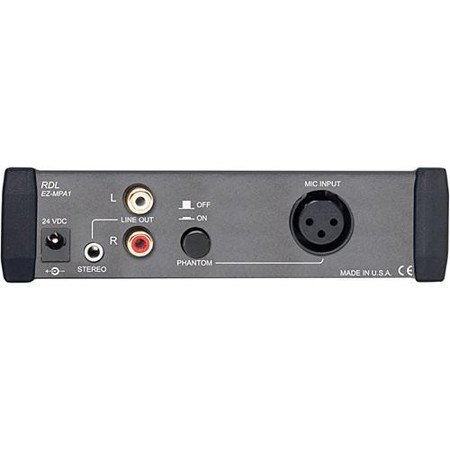

  • Balanced Microphone Input on Rear-Panel XLR
  • Switch-Selectable Phantom on Rear Panel
  • Unbalanced Output on MINI or RCA Rear-Panel Jacks
  • Preamp Feeds Left and Right Output Channels

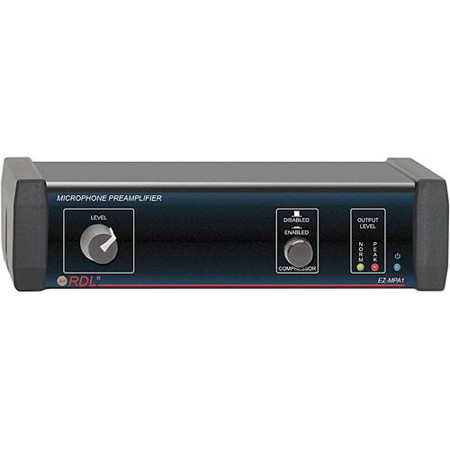

  • Front-Panel Compressor Enable/Disable Switch
  • Audio Compressor Controls Overloads
  • Front-Panel LEVEL Control
  • Dual-LED VU Meter

Product Documents

User Manual

Key Features

  • Achieve pristine sound quality with this low-noise microphone preamplifier.
  • Enhance your recordings with a wide 50 dB gain range for optimal audio levels.
  • Easily connect to various devices using XLR inputs and RCA/Mini jack outputs.
  • Enjoy robust build quality in a compact, 1/3 rack width microphone preamp.
  • Utilize switch-selectable compression to control dynamic range effectively.
  • Monitor your levels with a dual-LED VU meter for precise audio adjustments.

What's in the box:

  • RDL EZ-MPA1 Microphone Preamplifier
  • Rubber Feet
  • PS-24AS Switching Power Supply with North American Plug
  • RDL 3 Year Limited Warranty
