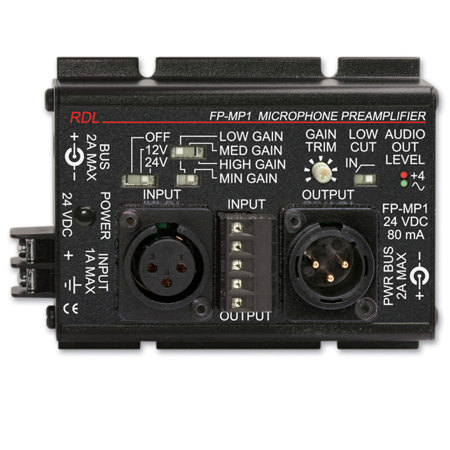

RDL FP-MP1 Studio Quality Microphone Preamplifier with Phantom, Terminal Block and XLR

SKU: RDFPMP1 MFR: FP-MP1
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with the RDL FP-MP1 microphone preamplifier.
  • Enjoy versatile gain range, from 19 dB to 65 dB, for any recording scenario.
  • Utilize the XLR connectivity for balanced inputs and outputs in your studio.
  • Ensure low noise performance, ideal for critical recording and broadcast applications.
  • Rely on the robust build quality of this studio preamplifier for long-term use.
  • Selectable phantom power (12V, 24V) enhances microphone compatibility.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RDL FP-MP1 Specifications

  • Input Impedance

    3 kOhms (balanced)

  • GAIN (4 ranges)

    MIN: 19 dB to 38 dB (switch-selectable)
    LOW: 26 dB to 45 dB (switch-selectable)
    MED: 36 dB to 55 dB (switch-selectable)
    HIGH: 46 dB to 65 dB (switch-selectable)

  • Input Clipping Level

    +4 dBu (at MIN gain)

  • Headroom

    20 dB (above +4 dBu

  • Low-Cut Filter

    80 Hz, 6 dB/Octave (switch-selectable)

  • Phantom Voltages

    12 V, 24 V (switch-selectable)

  • Buildout Standard

    IEC 61938: 2013

  • CMRR

    > 60 dB

  • Frequency Response

    20 Hz to 20 kHz (+/- 0.2 dB)

  • THD + N

    < 0.1% (+4 dBu, all gain settings)

  • IMD

    < 0.1%

  • Noise (below +4 dBu)

    < -70 dB (60 dB gain, 20 Hz to 20 kHz)
    < -72 dB (60 dB gain, "A-Weighted")
    < -80 dB (50 dB gain, 20 Hz to 20 kHz)

  • Equivalent Input Noise

    < -130 dB (gain + residual noise below +4 dBu)

  • Connector type

    XLR female (input); XLR male (output); 5 position plug-in terminal block (input and output)

  • Audio Level Indicators (2)

    Red LED: Output level > +4 dBu
    Green: -10 to +4 dBu (variable intensity)

  • Ambient Operating Environment

    0 to 50 deg. C (32 to 122 deg. F)

  • Power Requirement

    GROUND-REFERENCED, 24 Vdc at 100 mA

  • Dimensions (HxWxL)

    1.42 x 3.25 x 4.64" (3.61 x 8.26 x 11.79cm)

  • UPC Code

    813721012500

About RDL FP-MP1

Because of its superior design and functionality, the FP-MP1 Studio Quality Microphone Preamplifier stands out as an exceptional choice for both professional and amateur audio enthusiasts. Crafted by RDL, this high-quality preamplifier is equipped with exclusive low-noise discrete circuitry, delivering studio-grade performance with minimal noise interference, making it ideal for recording and broadcasting applications.

The FP-MP1's versatility is further enhanced by its XLR and plug-in terminal block connections. These features not only facilitate easy integration into rack-mounted hardwired installations but also allow for convenient remote use with standard audio cables. This makes the FP-MP1 a reliable and flexible solution for a wide range of audio setups.

One of the standout features of the FP-MP1 is its front-panel switch, which allows users to direct phantom voltage to the input connectors. This 3-position switch offers 24V, 12V, or phantom OFF options, providing the necessary power to condenser microphones that require it.

Additionally, a second switch on the FP-MP1 selects the input gain range, accommodating both standard and high output level microphones. This feature ensures optimal performance and compatibility with a broad spectrum of microphones, further enhancing the FP-MP1's versatility and appeal to audio professionals and enthusiasts alike.

In conclusion, the FP-MP1 Studio Quality Microphone Preamplifier is a durable, reliable, and professional-grade solution that delivers high-quality sound and versatile connectivity, making it a valuable addition to any audio equipment setup.

RDL FP-MP1 Features

  • Professional Studio-Quality Low-Noise Performance
  • Switchable Internal Phantom Voltage
  • XLR and Terminal Block Connections
  • Selectable Input Level Ranges
  • Adjustable Gain with Dual-LED VU Metering
  • Ultra-Compact All Metal Construction
  • Convenience of RDL FLAT-PAKs

Key Features

  • Achieve pristine sound quality with the RDL FP-MP1 microphone preamplifier.
  • Enjoy versatile gain range, from 19 dB to 65 dB, for any recording scenario.
  • Utilize the XLR connectivity for balanced inputs and outputs in your studio.
  • Ensure low noise performance, ideal for critical recording and broadcast applications.
  • Rely on the robust build quality of this studio preamplifier for long-term use.
  • Selectable phantom power (12V, 24V) enhances microphone compatibility.

What's in the box:

  • RDL FP-MP1 Studio Quality Microphone Preamplifier
  • RDL 3 Year Limited Warranty
