RDL DB-RLC10K Rotary Remote Level Control, Black

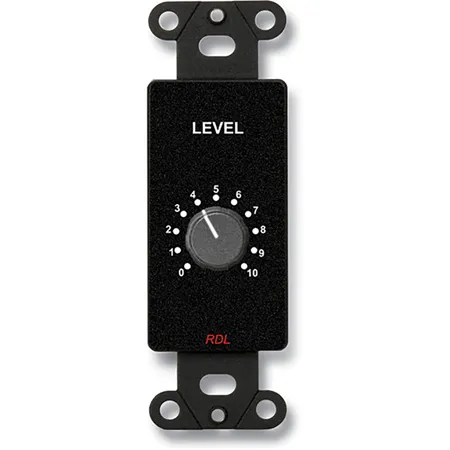

The DB-RLC10K is the ideal companion to the RDL VCA modules where levels are to be controlled from a single remote location. It is designed to directly interface with the 3-wire control input of the VCA module. The DB-RLC10K contains a high-quality 10 k Ohm potentiometer for setting the control voltage. The DB-RLC10K panel has 10 graphic increments which provide a visual indication of the level setting. The DB-RLC10K and RDL remote source selector may be mounted together in a double box/plate to form a visually appealing control of both audio source and audio level.

Three conductors are required for connection between the DB-RLC10K and an RDL VCA. A single shielded pair is normally used. All the DB-RLC10K features combine to make it the optimum economical choice for single-point remote level control in high-quality systems. Use the DB-RLC10K individually with an RDL control module, or combine it side-by-side with other RDL remote accessories as part of a complete audio/video system.
