25% Off

RDL STD-10K Passive Audio Divider/Combiner, 10 kOhms

SKU: RDSTD10K MFR: STD-10K
$80.01
$106.68
Save: $26.67 (25%)
Earn VIP Reward Points

Key Features

  • Enjoy versatile audio splitting or combining with this passive 10 kOhms divider/combiner.
  • Achieve balanced audio configurations effortlessly; supports multiple input/output setups.
  • This audio splitter works in any combination: split 1 in to 3 out, or combine 3 in to 1!
  • Experience minimal signal loss with only 3 dB insertion loss for clear audio quality.
  • Handles up to +22 dBu maximum signal input, ensuring robust audio performance every time.
  • Passive design means no power is required; a reliable audio solution for any setup.
See More Product Details
Special Order?Estimated to Ship: 08/08/2025
Calculate Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$13.99

3 Year

$20.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RDL STD-10K Specifications

  • Circuit Type

    Passive

  • Circuit Configuration

    Balanced

  • Input/Output Impedance

    10 kOhms

  • Number of Inputs / Outputs

    4 total; usable in any combination; split 1 in to 3 out; 2 in to 2 out; 3 in to 1 out

  • Insertion Loss

    3 dB

  • Isolation Between Channels

    3 dB (use RDL mixers or distribution amps for isolation)

  • Maximum Signal Input

    +22 dBu

  • Power Requirement

    Passive (not required)

  • UPC Code

    813721011251

About RDL STD-10K

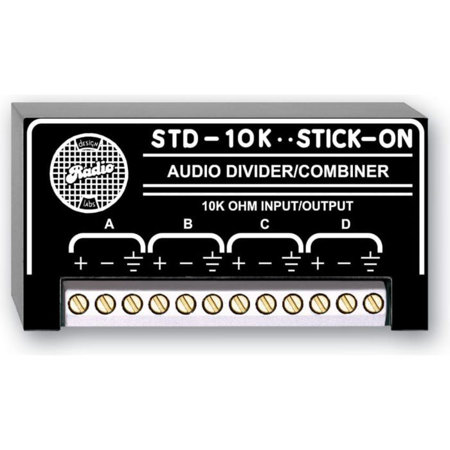

Be at the forefront of audio technology with the STD-10K Passive Audio Divider/Combiner, a high-performance device designed to optimize your audio experience. This versatile module features a resistive branching network with advanced RF filtering on each of its four channels, ensuring clear, high-quality sound every time.

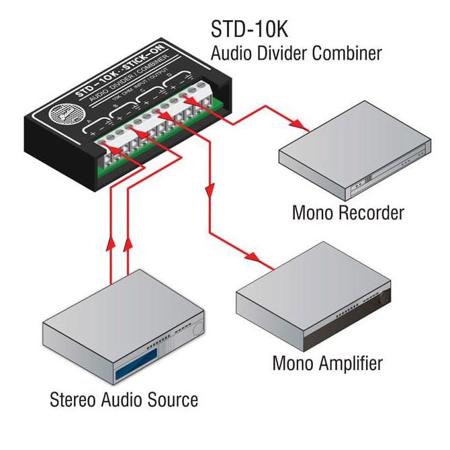

The STD-10K Passive Audio Divider/Combiner is engineered for flexibility, with each channel, from A to D, capable of functioning as either an input or an output. This unique feature allows for the seamless combination of stereo signals into mono inputs, the efficient splitting of mono signals to multiple inputs, and even the integration of microphones with output shorting switches into a single amplifier input.

Designed to cater to a wide range of audio requirements, the STD modules are available in 150 Ohms, 600 Ohms, and the 10 kOhms models. The STD-10K model, in particular, is perfect for those seeking a balance of power and performance.

All inputs and outputs of the STD-10K Passive Audio Divider/Combiner are balanced, ensuring consistent audio performance and reducing the risk of signal interference. Whether you're a professional audio engineer or an audiophile, the STD-10K Passive Audio Divider/Combiner offers a superior solution for all your audio dividing and combining needs.

RDL STD-10K Features

  • 10 kOhms Operation
  • Combine Audio Signals to a Single Output
  • Filter RF from an Audio Line
  • Combine Stereo Signals
  • Feed a Mono Signal to Stereo Inputs
  • Combine Multiple Mics to a Single Amp
  • Compactness of RDL STICK-ONs

Key Features

  • Enjoy versatile audio splitting or combining with this passive 10 kOhms divider/combiner.
  • Achieve balanced audio configurations effortlessly; supports multiple input/output setups.
  • This audio splitter works in any combination: split 1 in to 3 out, or combine 3 in to 1!
  • Experience minimal signal loss with only 3 dB insertion loss for clear audio quality.
  • Handles up to +22 dBu maximum signal input, ensuring robust audio performance every time.
  • Passive design means no power is required; a reliable audio solution for any setup.

What's in the box:

  • RDL STD-10K Passive Audio Divider/Combiner
  • RDL 3 Year Limited Warranty
