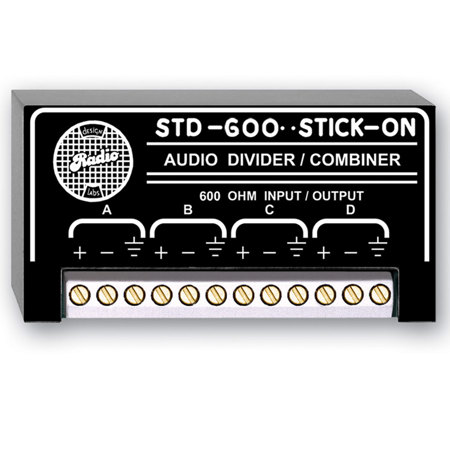

RDL STD-600 Passive Audio Divider/Combiner, 600 Ohms

SKU: RDSTD600 MFR: STD-600
$79.53
$106.05
Save: $26.52 (25%)
Earn VIP Reward Points

Key Features

  • Seamlessly split or combine audio signals with this passive 600 Ohm audio divider/combiner.
  • Achieve balanced audio configurations effortlessly using this versatile RDL splitter.
  • Enjoy a maximum signal input of +22 dBu, perfect for high-quality audio applications.
  • With 4 total inputs/outputs, customize your audio setup with any combination you need.
  • Expect only 3 dB insertion loss, maintaining excellent sound quality with this audio splitter.
  • This passive audio combiner requires no power, simplifying your setup and saving energy.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$13.99

3 Year

$20.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RDL STD-600 Specifications

  • Circuit Type

    Passive

  • Circuit Configuration

    Balanced

  • Input/Output Impedance

    600 Ohms

  • Number of Inputs / Outputs

    4 total; usable in any combination; split 1 in to 3 out; 2 in to 2 out; 3 in to 1 out

  • Insertion Loss

    3 dB

  • Isolation Between Channels

    3 dB (use RDL mixers or distribution amps for isolation)

  • Maximum Signal Input

    +22 dBu

  • Power Requirement

    Passive (not required)

  • UPC Code

    813721011244

About RDL STD-600

Take your audio experience to the next level with the STD-600 Passive Audio Divider/Combiner, designed to deliver superior sound quality with its 600 Ohms resistance. This versatile device is more than just an audio divider or combiner; it's a resistive branching network that features RF filtering on each of its four channels, ensuring clear and crisp audio output every time.

The unique design of the STD-600 allows any of its channels, from A to D, to function as either an input or an output. This flexibility enables you to combine stereo signals into mono inputs, split mono signals into multiple inputs, or even merge microphones with output shorting switches into a single amplifier input, providing a wide range of audio solutions to meet your specific needs.

The STD-600 Passive Audio Divider/Combiner is part of a broader range that includes 150 Ohms, 600 Ohms, and 10 kOhms models, catering to various audio requirements. All inputs and outputs of this device are balanced, ensuring consistent performance and optimal sound quality. Whether you're a professional sound engineer or an audiophile, the STD-600 Passive Audio Divider/Combiner is an essential tool for achieving the best audio experience.

RDL STD-600 Features

  • 600 Ohms Operation
  • Combine Audio Signals to a Single Output
  • Filter RF from an Audio Line
  • Combine Stereo Signals
  • Feed a Mono Signal to Stereo Inputs
  • Combine Multiple Mics to a Single Amp
  • Compactness of RDL STICK-ONs

Key Features

  • Seamlessly split or combine audio signals with this passive 600 Ohm audio divider/combiner.
  • Achieve balanced audio configurations effortlessly using this versatile RDL splitter.
  • Enjoy a maximum signal input of +22 dBu, perfect for high-quality audio applications.
  • With 4 total inputs/outputs, customize your audio setup with any combination you need.
  • Expect only 3 dB insertion loss, maintaining excellent sound quality with this audio splitter.
  • This passive audio combiner requires no power, simplifying your setup and saving energy.

What's in the box:

  • RDL STD-600 Passive Audio Divider/Combiner
  • RDL 3 Year Limited Warranty
