Review Summary
3.0 - 9.0x
40mm / 1.57"
1" / 2.54cm
Tac-MOA; second focal plane
32.9 - 13.1' at 100 yd (11.0 - 4.4 m at 100 m)
3.7 - 4.2" (9.39 - 10.66cm)
12.1 - 4.7 mm
1/4 MOA
56 MOA / 56 MOA
12.3" / 31.24cm
12.6oz / 357.20g
030317004064

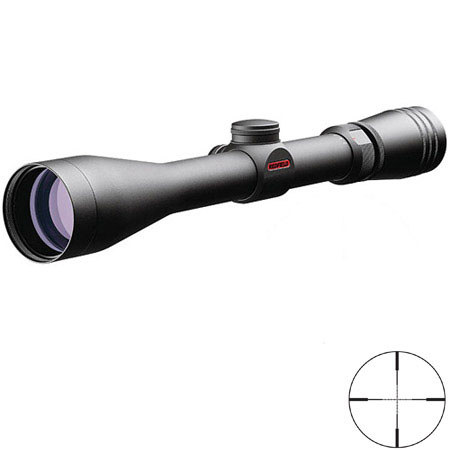

The Redfield 3-9x40 Revolution Tactical Riflescope features a weather-sealed housing and Tac-MOA crosshair reticle. This tactical version of the Revolution scope is equipped with 1/4 MOA target-style windage and elevation turrets that have deep knurling for enhanced tactile feedback. This scope is also configured with a Tac-MOA ballistic crosshair that has stadia on each axis in 2 MOA increments, assisting bullet drop and wind drift estimation.
Additionally, Revolution series scopes have a nitrogen-filled aluminum housing that is built to deliver fogproof and waterproof performance. Redfield's Illuminator Lens System produces high-contrast views that are bright throughout the 3-9x zoom range. A Rapid Target Acquisition eyepiece enables the shooter to lock-in the diopter correction for their eyesight simply by tightening the setting ring.
Illuminator Lens System
Illuminator Lens System gives you the clearest image for the cleanest shot. So take a deep breath and squeeze the trigger with complete confidence. If you're on the mark get out your knife. Premium lenses and vapor deposition, dielectric coatings deliver exceptional light transmission in the low-light, blue wavelengths that dominate at dawn and dusk, when game is most active.
Rapid Target Acquisition
See your buck, target your buck. It's easy with Revolution's generous eye relief and Rapid Target Acquisition eyepiece. No searching for the visual sweet spot when time is critical.
RUGGED RELIABILITY
This scope is test to be tough as nail, fully waterproof and ready to hunt.
ACCU-TRAC ADJUSTMENT
Precision, stainless steel, 1/4-MOA finger click adjustments let you quickly and easily zero your rifle on the range and confidently correct for windage or elevation in the field. When combined with Redfield's exclusive Accu-Range, you can quickly zero and place shots right on the money, even at long range.
100% WATERPROOF / FOG PROOF
It is built to take anything Mother Nature can dish out: driving rain, sleet, ice and snow are no match for the rugged, watertight Revolution. Nitrogen-processed main tubes are totally waterproof and stay that way, so the elements will never dampen your hunt.
REVOLUTION/TAC TACTICAL ADJUSTMENT
The Revolution/TAC syncs tactical adjustment dials and the TAC-MOA reticle to let shooters make quick, simple adjustments for better accuracy. Taller, tactical-style windage and elevation adjustments feature aggressively knurled dials and tactile/audible 1/4-MOA clicks to give you a better grip and more control over the elements.
