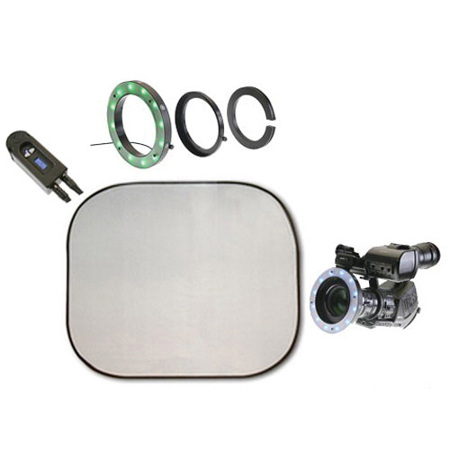

Reflecmedia 4x4' ChromaFlex EL with Small Dual LiteRing and Controller

Dual LiteRing
The Reflecmedia Dual LiteRing is designed to fit snugly around the camera lens to provide perfect illumination of the Reflecmedia Chromatte background for chromakey production and is available in 2 sizes ('small' and 'medium') to fit many different size camera & lens systems. The Dual LiteRing features high performance surface mounted Light Emitting Diodes (LEDs) arranged in a robust circular casing with a tuned diffusion to create extremely even illumination without causing discomfort to the subject.

The Dual LiteRing is powered by the Reflecmedia Dual LiteRing Controller that allows the user to switch between blue or green output. 256 steps of dimming control are available with last setting memory for fast setup and instant switch over between colors.

Dual LiteRing Controller
The Reflecmedia Dual LiteRing Controller is designed specifically for the Reflecmedia Dual LiteRing & allows the user total control over the power source and litering output. The Reflec media Dual LiteRing must ALWAYS be powered & controlled with the Reflecmedia Dual LiteRing Controller. Other controllers may damage the LiteRing and invalidate product Warranty.

Connecting the Dual LiteRing to the Dual LiteRing Controller
The LiteRing is fitted with a 3 pin XLR plug on the end of a flying lead. Insert this into the 3 pin XLR socket on the LiteRing Controller, ensuring that the plug is latched to prevent accidental removal. Always connect the LiteRing to the LiteRing Controller before connecting power or switching the controller on. Once connected, always stow any excess cable neatly. If the 3 pin XLR plug or socket is damaged, return the unit to your Reflecmedia dealer for repair.

Powering the Dual LiteRing & Dual LiteRing Controller
The Dual LiteRing Controller is tolerant of a wide range of input voltages, from 7.5 to 12Vdc. It is recommended for Studio use that the Reflecmedia 12V mains adapter (RM5224) is used to provide power; this is provided in their LiteRing Kit's. The 12V mains adapter is fitted with a 4 pin XLR plug on the end of a flying lead. Insert this into the 4 pin XLR socket on the LiteRing Controller side as shown, ensuring that the plug is latched to prevent accidental removal. Once connected, always stow any excess cable neatly. For more freedom in use, the LiteRing Controller may be powered from a battery.

This reduces the number of cables needed and allows the unit to be more mobile and flexible. Industry standard batteries of the Sony NP-F Mini DV pattern, as used on many Sony mini DV cameras have been chosen. The low power consumption of the LiteRing allows many hours of use between battery charges. Ensure that your battery is fully charged and slide it into the battery mount fitted on the rear face of the controller housing. Note that the battery needs to be pressed towards the mount whilst sliding towards the battery holder contacts to allow the latch to engage. To remove the battery, ensure that he controller is switched off (i.e. toggle switch in the centre-off position), depress the locking tab and slide the battery out of its holder.

The ½default' supply is from the XLR / mains input. If the mains input AND battery are connected then the unit will automatically run from the XLR / mains input. For safety reasons, because of the many battery technologies available, the LiteRing Controller will not charge the battery, even if connected! NB - Reflecmedia do not provide batteries but these are available from many sources. If the XLR plug, socket or M-DV battery adapter is damaged, return the unit to your Reflecmedia dealer for repair.

ChromaFlex EL
ChromaFlex EL is a 1.4m x 1.4m (4'x4') version of ChromaFlex, supplied with LiteRing components all in one bag. Designed as a cost-effective entry level solution for mid shots and head and shoulder shots, it is the perfect introduction to Chromatte production.

ChromaFlex EL offer unrivalled benefits

Fast
The pop-up screen is erected in seconds as no other fittings are needed.

Portable
ChromaFlex EL can be held, leaned against a wall or clipped to a free-standing frame - ideal when hanging isn't an option or when filming locations are unfamiliar. The ChromaFlex screen, LiteRing and LiteRing controller can be packed into a bag that fits in the back of a car.

Effective
Chromatte achieves a high quality key, with no blue 'spill' and excellent edge definition.

Inexpensive
No need for studio space, lighting and wasted labor.

Quality
The collapsible inner frame can withstand long term use and is of the highest quality construction.
