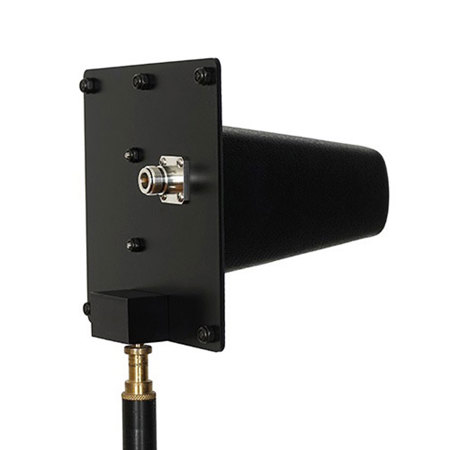

RF Venue High Performance 2.4GHz CP Beam Helical Antenna
See all RF Venue items

RF Venue High Performance 2.4GHz CP Beam Helical Antenna

SKU: RFV24BEAM
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

RF Venue 2.4GHz CP Beam Specifications

Electrical

Electrical

Jump to...

  • Operating frequency

    2.4GHz

  • Bandwidth

    200MHz

  • Impedance

    50 Ohm

  • Average return loss

    -14.3 dB

  • Average return loss

    -14.3 dB

  • Average return loss

    -14.3 dB

Azimuth X

Jump to...

  • Beam width

    63 Degree

  • F/B ratio

    -14 dB

  • F/S ratio

    -14 dB

  • Squint

    < 5 Degree

Azimuth Y

Jump to...

  • Beam width

    45 Degree

  • F/B ratio

    -13 dB

  • F/S ratio

    -17 dB

  • Squint

    < 2 dB

  • Gain

    12 dBd

Physical

Jump to...

  • Color

    Black

  • Mount threads

    1/4-20, 3/8-16, 5/8-27

  • Operating temperature

    -9.4 Degree F - 129.2 Degree F (-23 Degree C - 54 Degree C)

  • Connectors

    N female (BNC supplied)

  • Dimensions (L x H)

    7.9 x 5.9" (203 x 152mm)

  • Weight

    11.9 oz (340g)

About RF Venue 2.4GHz CP Beam

Inspired by the popular UHF CP Beam antenna, this lightweight, miniaturized version is built for maximum gain in the 2.4 GHz band. Painstakingly designed and tested in our laboratory, it provides significant performance improvements over other 2.4 GHz directional antennas intended for networking devices-antennas that make many compromises.

The 2.4 GHz CP Beam is well-suited for use with Line 6 digital wireless microphones, ClearCom Tempest intercoms, and Zaxcom Zaxnet devices. It is also equally at home extending Wi-Fi networks or other 2.4 GHz ISM devices like phones, tablets, and (yes) drones.

With 12 dBd of gain, it significantly increases useable range, indoors or out. The 2.4 GHz CP Beam's circularly polarized element also reduces signal dropouts and improves link quality.

The element is protected by a durable ABS enclosure, and includes a mounting block with 1/4-20, 3/8-16, and 5/8-27 threads.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • High Performance 2.4GHz CP Beam Helical Antenna
  • Mounting Block with Threads
  • RF Venue 1 Year Limited Warranty
