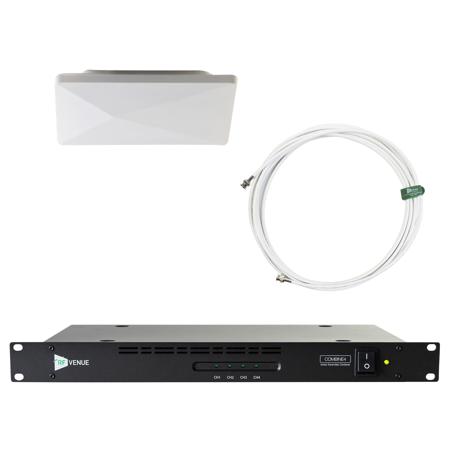

RF Venue COMBINE4 4-Channel Antenna Signal Combiner with CP Architectural Antenna

SKU: RFV4CPARC MFR: COMB4CP-ARC
Earn VIP Reward Points

Key Features

  • Maximize audio clarity with the COMBINE4, minimizing signal loss for superior sound.
  • Ensure reliable wireless microphone performance using this antenna signal combiner.
  • The CP Architectural Antenna offers a wide 400 MHz bandwidth for optimal reception.
  • Streamline your setup with the COMBINE4, supporting up to four wireless channels.
  • Enhance signal strength; the antenna's 2.5dBi gain boosts wireless microphone signals.
  • Durable RF Venue antenna system designed for wall or ceiling mount in any venue.
See More Product Details
Pre Order Now?
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RF Venue COMBINE4 Specifications

COMBINE4 Antenna Combiner

COMBINE4 Antenna Combiner

Jump to...
  • Frequency range

    470-960 MHz

  • Input connectors

    4X BNC

  • Full system gain

    0 dB ( +/-2 dB)

  • Maximum RF input power

    +20 dBm (100 mW)

  • LED indicator (input signal threshold)

    > +5 dBM (Threshold power)

  • Power consumption

    60 W

  • I/O

    4x RF inputs
    Antenna out
    4x DC outputs

  • Input AC voltage

    100-240 VAC, 50/60 Hz, Max 2A

  • Output DC voltage

    +12 V. 1 A max (4 outputs total 48 W)

  • Output DC connectors

    0.2" (5.5mm) (OD)
    0.1" (2.1mm) (ID)

  • Dimensions (W x H x D)

    19 x 2 x 10" (480 x 45 x 250mm)

  • Weight

    5 lbs (2.3kg)

CP Architectural Antenna

Jump to...
  • Color

    White

  • Operating frequency

    400-800 MHz

  • Bandwidth

    400 MHz

  • Average return loss

    10 dB

  • Impedance

    50 Ohm

  • Pattern type

    Flood

  • Polarization

    RHCP

  • Beam width

    120 Degree

  • Gain @ 500MHz

    2.5dBi

  • Mount location

    Wall or ceiling

  • Operating temperature

    14 - 104 Degree F (-10 - 40 Degree C)

  • Connector(s)

    BNC female

  • Dimensions

    11 x 11 x 2" (280 x 280 x 50mm)

  • Weight

    32 oz (907.18g)

  • UPC Code

    658580646721

About RF Venue COMBINE4

Take your audio setup to the next level with the COMBINE4 4-Channel Antenna Signal Combiner, paired with the CP Architectural Antenna. This advanced IEM transmitter combiner seamlessly integrates up to four in-ear monitor transmitter signals into a single, robust transmit antenna. This innovative design eliminates the need for multiple antennas, reducing the risk of unwanted intermodulation and enhancing the overall audio experience.

The COMBINE4 Antenna Signal Combiner is a crucial component for multi-channel systems, expertly minimizing intermodulation artifacts that can occur when multiple adjacent transmitters interfere with one another. This device is compatible with any brand of transmitter (up to 100mW) and passive antenna, making it a versatile addition to any audio setup.

In addition to its signal combining capabilities, the COMBINE4 also provides DC power for up to four IEM transmitters. This feature significantly reduces cable clutter and the need for additional power sources, streamlining your setup and making it more efficient.

Complementing the COMBINE4 is the CP Architectural Antenna by RF Venue. This high-performance antenna is specifically designed for installed in-ear monitor systems. Its slim profile and unique circularly polarized, flat antenna design allow it to be installed on any wall or ceiling, and it can even be painted to match your interior for a seamless look.

The CP Architectural Antenna offers excellent transmit signal coverage for IEMs, ensuring a reliable and consistent audio experience. Installation is quick and easy, with a pre-drilled rear plate that connects to the front plate using the included mounting screws. The rear-mounted BNC terminated coaxial cable can be connected to your in-wall or in-ceiling coaxial cable run, making the CP Architectural Antenna ready for use in minutes.

Drawing on the success of the highly acclaimed CP Beam helical antenna, the CP Architectural Antenna effectively eliminates common signal dropouts caused by changes in the angle and orientation of the RF signal for IEM bodypack receivers. This makes it an ideal choice for houses of worship, concert venues, and other locations where professional RF performance is required. With its sleek, industrial design, the CP Architectural Antenna not only enhances your audio setup but also adds a touch of sophistication to your interior design.

RF Venue COMBINE4 Features

  • COMBINE4 Antenna Signal Combiner Features
  • Freedom to place one directional antenna outside the rack for better line-of-sight and improved wireless performance
  • 1RU Full rack width to install near transmitters. Includes cabling accessories to connect and power up to four wireless transmitters
  • Compatible with all IEM transmitter
  • CP Architectural Antenna Features
  • Featuring a slim profile enclosure, can be installed in any position on wall or ceiling
  • Provides excellent transmit signal coverage for IEMs
  • Installs in minutes with wall or ceiling-mounted rear plate

Key Features

  • Maximize audio clarity with the COMBINE4, minimizing signal loss for superior sound.
  • Ensure reliable wireless microphone performance using this antenna signal combiner.
  • The CP Architectural Antenna offers a wide 400 MHz bandwidth for optimal reception.
  • Streamline your setup with the COMBINE4, supporting up to four wireless channels.
  • Enhance signal strength; the antenna's 2.5dBi gain boosts wireless microphone signals.
  • Durable RF Venue antenna system designed for wall or ceiling mount in any venue.

What's in the box:

  • RF Venue COMBINE4 4-Channel Antenna Signal Combiner
  • CP Architectural Antenna
  • 4x BNC Jumpers
  • 4x DC Jumpers
  • AC Power Cord
  • RF Venue 1 Year Limited Warranty
