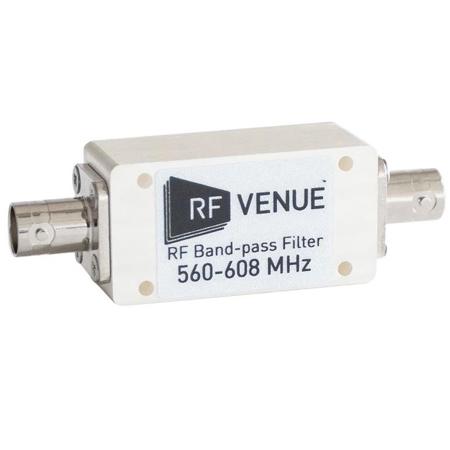

RF Venue RF Band-Pass Filter, 560-608MHz Frequency

SKU: RFVBF560T608 MFR: BPF560T608
Earn VIP Reward Points

Key Features

  • Enhance your audio with this RF Venue band-pass filter, ensuring top sound quality!
  • This RF filter is compatible with Shure, Sennheiser & Lectrosonics wireless microphone systems.
  • Minimize interference! This band-pass filter rejects signals outside the 560-608MHz range.
  • Get crystal-clear audio: insertion loss max of 3.5 dB and ripple inband max of 1.5 dB.
  • Durable RF Venue filter operates reliably from -22 to 158 Degree F for any event.
  • Protect your wireless microphone investment with this essential RF band-pass filter.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RF Venue Band-Pass Filter Specifications

  • Compatibility

    Shure J1 and J3
    Sennheiser G
    Sennheiser 6000/9000 High Band
    Lectrosonics Blocks B22 and B23

  • Pass Band

    560 - 608MHz

  • Insertion Loss Max

    3.5 dB

  • Ripple inband Max

    1.5 dB

  • VSWR

    Maximum: 1.5

  • Rejection

    40dB @ DC-535MHz
    40dB @ 633-1000MHz

  • Power

    2W

  • Temperature

    -22 Degree F to 158 Degree F (-30 to 70 Degree C)

Designed For Use With:

  • UHF Distribution & Receivers

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About RF Venue Band-Pass Filter

Are you seeking a high-quality, durable, and efficient solution to eliminate "out of band" signals that can potentially saturate the front end of your wireless microphone receivers Look no further than the RF Venue Band-Pass Filter. This innovative product is specifically designed to greatly enhance dynamic range by reducing noise and third-party interference outside the range of operation.

This reliable RF Band-Pass Filter operates within a specific frequency range of 560-608MHz, making it an ideal choice for use with particular UHF distribution and receivers. Manufactured by the reputable brand, RF Venue, known for its superior audio and video equipment, this filter guarantees top-notch performance.

The RF Venue Band-Pass Filter features industry-standard BNC connectors and boasts a compact design with a small 3" x 1.75" footprint. These hand-tuned band-pass filters require no power or user configuration, offering a user-friendly experience. They can be effortlessly connected in-line with wireless microphone antennas to reduce noise and enhance wireless system performance.

To achieve 40 dB of side rejection, simply connect the band-pass filter in-line with your wireless microphone remote antenna connections. Please note that two filters are required for diversity wireless microphone systems. With the RF Venue Band-Pass Filter, you can expect a significant improvement in your audio quality and wireless system performance.

RF Venue Band-Pass Filter Features

  • High-quality RF Band-Pass Filter from reputable brand, RF Venue
  • Operates within a specific frequency range of 560-608MHz, ideal for certain UHF distributions and receivers
  • Enhances dynamic range by reducing noise and third-party interference
  • Features industry-standard BNC connectors and a compact 3" x 1.75" footprint
  • User-friendly design requiring no power or user configuration
  • Easily connectable in-line with wireless microphone antennas for improved system performance

Key Features

  • Enhance your audio with this RF Venue band-pass filter, ensuring top sound quality!
  • This RF filter is compatible with Shure, Sennheiser & Lectrosonics wireless microphone systems.
  • Minimize interference! This band-pass filter rejects signals outside the 560-608MHz range.
  • Get crystal-clear audio: insertion loss max of 3.5 dB and ripple inband max of 1.5 dB.
  • Durable RF Venue filter operates reliably from -22 to 158 Degree F for any event.
  • Protect your wireless microphone investment with this essential RF band-pass filter.

What's in the box:

  • RF Band-Pass Filter (560-608MHz)
  • RF Venue 1 Year Limited Warranty
