RF Venue DISTRO5 HDR 5-Channel Antenna Distribution System with COMBINE6 HDR 6-Channel Combiner Super Pack

SKU: RFVC6CPS MFR: C6CPS-D5DFIN
Earn VIP Reward Points

Key Features

  • Maximize wireless microphone clarity with this professional antenna distribution system.
  • Achieve superior sound quality using the COMBINE6 HDR's 6-channel antenna combiner.
  • The Diversity Fin Antenna enhances signal reception, reducing dropouts for clear audio.
  • Enjoy broad compatibility; this system supports in-ear monitors and wireless mics.
  • Rugged and weather-resistant CP Stage Antenna ensures reliable performance, indoors or out.
  • Easy setup with included cables and rack ears, perfect for any audio professional's needs.
See More Product Details
Special Order?Estimated to Ship: 09/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RF Venue C6CPS-D5DFIN Specifications

DISTRO5 HDR Antenna Distribution System

DISTRO5 HDR Antenna Distribution System

Jump to...
  • Frequency Range

    470 - 698 MHz

  • Inputs

    1x Diversity pair BNC

  • Outputs

    5x Diversity pairs BNC

  • Power supply

    Internal, 100 - 240 VAC
    50/60 Hz 2 A

  • DC In

    12 V DC, 250 mA (optional)

  • Impedance

    50 Ohm

  • DC Out Connector

    Anderson Powerpole

  • DC Out

    12 V DC, 5 A

  • Fuse

    T3 5A 240V

  • Dimensions (D x W x H)

    8.80 x 8.25 x 1.75" (223.5 x 210 x 44.5mm)

  • Weight

    3.7 lbs (1.7kg)

Diversity Fin Antenna: Electrical

Jump to...
  • Operating frequency

    470-698 MHz

  • Bandwidth

    228 MHz

  • Average return loss

    -9.4 dB

  • Impedance

    50Ohm

Diversity Fin Antenna: LPDA

Jump to...
  • Beam width

    140 Degree azimuth

  • F/B ratio

    -8 dB

  • F/S ratio

    -5 dB

  • Gain

    5 dBd

Diversity Fin Antenna: Dipole

Jump to...
  • Beam width

    100 Degree azimuth

  • F/B ratio

    -5 dB

  • F/S ratio

    -13 dB

  • Gain

    1.8 dBd

Diversity Fin Antenna: Physical

Jump to...
  • Color

    Black

  • Operating temperature

    -9-130 Degree F (-23-54 Degree C)

  • Connector(s)

    2x BNC female

  • Mount threads

    1/4-20, 3/8-16, 5/8-27

  • Dimensions (L x H)

    12 x 14.6" (300 x 370mm)

  • Weight

    1 lbs (454g)

COMBINE6 HDR Antenna Combiner

Jump to...
  • Frequency Range USA + CAN

    470 - 608 MHz

  • Frequency Range INT'L

    470 - 698 MHz

  • RF Inputs

    6 BNC inputs

  • Maximum Input Power

    60 mW (+18 dBm) per port

  • Input Port Isolation

    50 dB, typical

  • Signal Overload Threshold

    17 dBm, typical

  • Passive Circuit Loss

    4 dB, typical

  • DC Power Supply

    External, 100 - 240 VAC, 50/60 Hz, 1 A

  • DC Power In

    +12 V, 3 A

  • Dimensions (D x W x H)

    8.8 x 8.25 x 1.75" (223.5 x 210 x 44.5mm)

  • Weight

    3.56 lbs (1.6kg)

CP Stage Antenna

Jump to...
  • Color

    Black

  • Compatibility

    In-Ear Monitors and Wireless Microphones

  • Mount location

    Wall or ceiling

  • Polarization

    Circular

  • IP-rated

    Weather resistant

  • UPC Code

    658580647179

About RF Venue C6CPS-D5DFIN

- DISTRO5 HDR 5-Channel Antenna Distribution System -
Five mic channels, higher performance, in 1/2 rack space. DISTRO5 HDR supports most bands' mic needs in less rack space.

High Performance
HDR - Increased reliability, lower noise floor, more open channels

Half Rack Size
Takes up less space and provides 5A of power

Highly expandable
Up to 25 channels

- Diversity Fin Antenna -
The Diversity Fin Antenna is a multi-purpose antenna for wireless microphones that doesn't drop out by using our patented cross-polarized design. It provides a diversity solution in a single package by combining one log-periodic dipole array (LPDA) and one dipole antenna in an orthogonal (right angle) configuration. One element captures vertically polarized signals, and the other horizontally polarized signals.

Multi - Axis coverage
Improves signal consistency in indoor reflective environments

Two Antennas in One
One Diversity Fin replaces two traditional LPDA paddle antennas

Compatible
Works with any brand wireless mic or IEM system


- COMBINE6 HDR 6-Channel Antenna Signal Combiner -
More IEM channels, higher performance, in less rack space. Six channels of clean, consistent IEM signals for the whole band, in a compact road-friendly package. COMBINE6 HDR streamlines your IEM system to give you a distraction-free, reliable monitor mix - with built-in expansion.

High Performance
HDR - Increased reliability, lower noise floor, more open channels

Half Rack Size
Takes up less space

Highly Expandable
Up to 12 channels on a single antenna


- CP Stage Antenna -
The CP Stage is a compact, weather resistant IP-rated, circularly polarized antenna designed for in-ear monitor transmitters and wireless microphone systems. Building on the success of the CP Beam and CP Architectural antennas, the CP Stage offers high performance and reliability in a portable package, making it ideal for touring and band flypacks.

Housed in a lightweight yet extremely durable IP-rated weather resistant enclosure, the CP Stage is suitable for both portable use and permanent outdoor installation. The antenna is easily connected to a microphone stand mount, providing a secure connection to boost signal quality for both in-ear monitors and microphones wherever you need it.

Note: For an in-ear monitor system, one CP Stage Antenna is required, but for wireless microphones, two CP Stages are needed for diversity receivers.

Features

Built for Better IEMs: Unreliable IEMs are a disaster for live performers. Dropouts and audible "hits" are a distraction and can quickly ruin confidence on stage. The CP Stage is built to make your band's IEM rig crystal clear so you can focus on what matters- your performance.

Circular Polarization: unlike "paddle" or "fin" antennas with , the CP Stage features a low profile circularly polarized element that delivers optimal signal to in-ear monitor bodypacks and wireless microphones. If you're using paddle antennas, swap them out for the CP Stage to see and hear the difference in your IEM system.

Ruggedized IP-Rated Enclosure: built to withstand permanent outdoor installation and the abuse of global tours and flypacks, the CP Stage will remain protected in case of weather, mic stand falls or other mishaps on the road.

RF Venue C6CPS-D5DFIN Features

  • DISTRO5 HDR 5-Channel Antenna Distribution System
  • What it is: Half rack antenna distribution system with 5 channels and HDR performance
  • Who it's for: Bands and performers using multiple wireless mics and wanting to consolidate down to 2 antennas
  • Takes up less space and provides 5A of power
  • Diversity Fin Antenna
  • You only get one shot at a live performance in front of a given audience. Dropouts are disruptive and unacceptable; the Diversity Fin never drops RF signal (within line of sight)
  • Technical space can be limited and crowded; the Diversity Fin requires less effort to set up and breakdown
  • Replaces 2 "shark fin" paddle antennas at a lower cost and with better wireless performance
  • Hybrid antenna design combines 1 LPDA and 1 cross-polarized antenna
  • Works with all brands; both analog and digital
  • Padded cover provides protection without interfering with radio waves
  • Ideal for touring and install applications (although you may prefer RF Venue's Diversity Architectural Antenna for installations)
  • Frequency Range: 470 - 698 MHz
  • COMBINE6 HDR 6-Channel Antenna Signal Combiner
  • More IEM channels, higher performance, in less rack space
  • Six channels of clean, consistent IEM signals for the whole band
  • HDR - Increased reliability, lower noise floor, more open channels
  • Half Rack Size
  • Highly Expandable
  • CP Stage Antenna
  • Compact, weather-resistant IP-rated enclosure
  • Circularly polarized for optimal signal
  • Ideal for in-ear monitors and wireless mics
  • Lightweight and durable for portable use
  • Suitable for permanent outdoor installation

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Maximize wireless microphone clarity with this professional antenna distribution system.
  • Achieve superior sound quality using the COMBINE6 HDR's 6-channel antenna combiner.
  • The Diversity Fin Antenna enhances signal reception, reducing dropouts for clear audio.
  • Enjoy broad compatibility; this system supports in-ear monitors and wireless mics.
  • Rugged and weather-resistant CP Stage Antenna ensures reliable performance, indoors or out.
  • Easy setup with included cables and rack ears, perfect for any audio professional's needs.

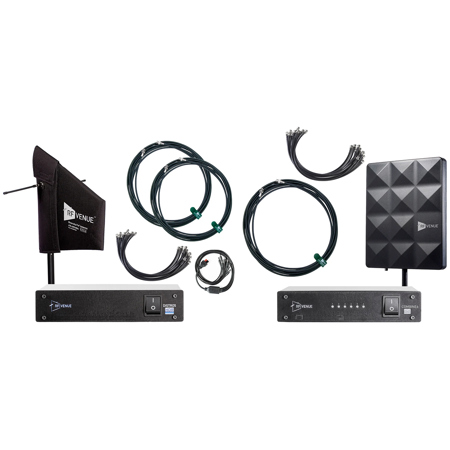

What's in the box:

  • COMBINE6 HDR 6-Channel Antenna Signal Combiner
  • DISTRO5 HDR 5-Channel Antenna Distribution System
  • Diversity Fin Antenna
  • CP Stage Antenna
  • 2x IEC Power Cables
  • 2x Rack Ears (Short and Long)
  • 2x Half Rack Connecting Plate and Mounting Hardware
  • 2x 25' Low Loss Antenna Cables
  • 20x 1.5' Low Loss BNC Interconnect Cables
  • RF Venue 1 Year Limited Warranty
