RF Venue COMBINE8 8-Channel Antenna Signal Combiner with CP Stage Antenna

SKU: RFVCOMB8CP MFR: COMB8CP-STAGE
Earn VIP Reward Points

Key Features

  • Maximize audio clarity with the COMBINE8, minimizing signal loss for pristine sound quality.
  • Simplify your setup: Connect up to 8 wireless mics to a single antenna with this combiner.
  • Enjoy broad compatibility; this antenna system works seamlessly with in-ear monitors.
  • Ensure reliable performance; the COMBINE8 operates within 470-698 MHz frequency range.
  • Mount the CP Stage Antenna easily on walls or ceilings for optimal signal coverage.
  • Get robust durability with weather-resistant design, perfect for any indoor environment.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RF Venue COMBINE8 Specifications

COMBINE8 Antenna Combiner

COMBINE8 Antenna Combiner

Jump to...
  • Frequency Range USA + CAN

    470 - 608 MHz

  • Frequency Range INT'L

    470 - 698 MHz

  • Input connectors

    8x BNC

  • Full system gain

    0 dB (+/-2 dB)

  • Maximum RF input power

    +18 dBm 760 mW)

  • LED indicator

    Input signal threshold: > +5 dBM

  • Power consumption

    84W

  • Input/Output

    8x RF inputs 1 antenna out

  • Input AC voltage

    100 - 240 VAC, 50/60 Hz, 2A

  • DC Output

    12VDC 4A

  • Dimensions (W x H x D)

    18.89 x 1.77 x 10.23" (480 x 45 x 260mm)

  • Weight

    8.15 lbs (3.7kg)

CP Stage Antenna

Jump to...
  • Color

    Black

  • Compatibility

    In-Ear Monitors and Wireless Microphones

  • Mount location

    Wall or ceiling

  • Polarization

    Circular

  • IP-rated

    Weather resistant

  • UPC Code

    658580647162

About RF Venue COMBINE8

- COMBINE8 8-Channel Antenna Signal Combiner -
The COMBINE8 IEM combiner brings together up to eight in-ear monitor transmitter signals into a single, more powerful transmit antenna, eliminating the use of problematic multiple antennas while lowering the buildup of unwanted Intermodulation.

You've got the power
Includes cabling accessories to connect and power up to eight wireless transmitters.

One for All
One (1) Antenna focused on the stage supports up to Eight (8) IEM transmitters.

Compatible
Works with all manufacturers receivers.


- CP Stage Antenna -
The CP Stage is a compact, weather resistant IP-rated, circularly polarized antenna designed for in-ear monitor transmitters and wireless microphone systems. Building on the success of the CP Beam and CP Architectural antennas, the CP Stage offers high performance and reliability in a portable package, making it ideal for touring and band flypacks.

Housed in a lightweight yet extremely durable IP-rated weather resistant enclosure, the CP Stage is suitable for both portable use and permanent outdoor installation. The antenna is easily connected to a microphone stand mount, providing a secure connection to boost signal quality for both in-ear monitors and microphones wherever you need it.

Note: For an in-ear monitor system, one CP Stage Antenna is required, but for wireless microphones, two CP Stages are needed for diversity receivers.

Features

Built for Better IEMs: Unreliable IEMs are a disaster for live performers. Dropouts and audible "hits" are a distraction and can quickly ruin confidence on stage. The CP Stage is built to make your band's IEM rig crystal clear so you can focus on what matters- your performance.

Circular Polarization: unlike "paddle" or "fin" antennas with , the CP Stage features a low profile circularly polarized element that delivers optimal signal to in-ear monitor bodypacks and wireless microphones. If you're using paddle antennas, swap them out for the CP Stage to see and hear the difference in your IEM system.

Ruggedized IP-Rated Enclosure: built to withstand permanent outdoor installation and the abuse of global tours and flypacks, the CP Stage will remain protected in case of weather, mic stand falls or other mishaps on the road.

RF Venue COMBINE8 Features

  • COMBINE8 8-Channel Antenna Signal Combiner
  • Compatible with all IEM Transmitters
  • Freedom to place one directional antenna outside the rack for better line-of-sight and improved wireless performance
  • 1RU Full rack width to install near transmitters
  • CP Stage Antenna
  • Compact, weather-resistant IP-rated enclosure
  • Circularly polarized for optimal signal
  • Ideal for in-ear monitors and wireless mics
  • Lightweight and durable for portable use
  • Suitable for permanent outdoor installation

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Maximize audio clarity with the COMBINE8, minimizing signal loss for pristine sound quality.
  • Simplify your setup: Connect up to 8 wireless mics to a single antenna with this combiner.
  • Enjoy broad compatibility; this antenna system works seamlessly with in-ear monitors.
  • Ensure reliable performance; the COMBINE8 operates within 470-698 MHz frequency range.
  • Mount the CP Stage Antenna easily on walls or ceilings for optimal signal coverage.
  • Get robust durability with weather-resistant design, perfect for any indoor environment.

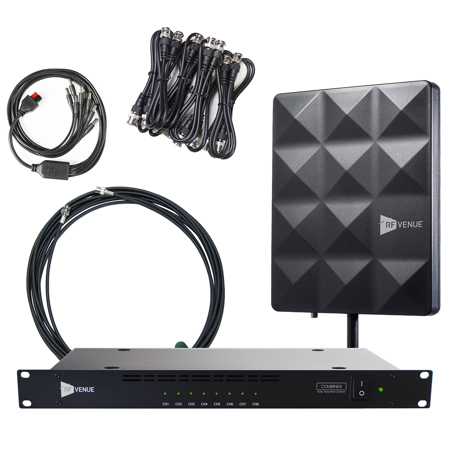

What's in the box:

  • RF Venue COMBINE8 8-Channel Antenna Signal Combiner
  • CP Stage Antenna
  • IEC Power Cable
  • 25' Low Loss Antenna Cable
  • 8x 1' BNC Interconnect Cables
  • DC Octopus 8-Connector Power Distribution Cable
  • RF Venue 1 Year Limited Warranty
