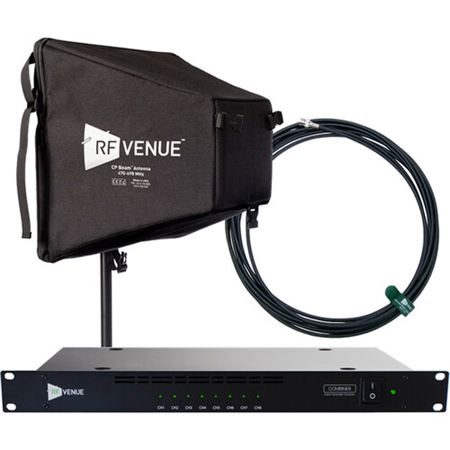

RF Venue 8-Channel In-Ear Monitor Upgrade Pack with COMBINE8 Antenna Signal Combiner and CP Beam Antenna

SKU: RFVCOMB8CPB MFR: COMB8CPB
Earn VIP Reward Points

Key Features

  • Optimize your in-ear monitor system with the COMBINE8 antenna signal combiner.
  • Achieve superior sound quality using the CP Beam antenna's focused signal.
  • Enjoy wide compatibility with UHF distribution & receivers for seamless setup.
  • The included RG8X low loss coaxial antenna cable ensures minimal signal loss.
  • Power your setup efficiently with the auxiliary AC power cable and DC octopus.
  • Durable design ensures reliable performance for professional audio environments.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RF Venue Monitor Upgrade Pack Specifications

COMBINE8 Antenna Signal Combiner

COMBINE8 Antenna Signal Combiner

Jump to...
  • Frequency range

    470 - 608 MHz

  • Input connectors

    BX BNC

  • Full system gain

    0 dB (+/-2 dB)

  • Maximum RF input power

    +18 dBm 760 mW)

  • LED indicator

    Input signal threshold: > +5 dBM

  • Power consumption

    84W

  • Input/Output

    BX RF inputs 1 antenna out

  • Input AC voltage

    100 - 240 VAC, 50/60 Hz, 2A

  • DC Output

    12VDC 4A

  • Dimensions (W x H x D)

    18.89 x 1.77 x 10.23" (480 x 45 x 260mm)

  • Weight

    8.15 lbs (3.7kg)

CP Beam Antenna: General

Jump to...
  • Color

    Black Fabric

CP Beam Antenna: Electrical

Jump to...
  • Operating frequency

    470 - 698 MHz

  • Bandwidth

    228 MHz

  • Average return loss

    -13.15 dB

  • Impedance

    50 Ohm

  • Pattern type

    Beam

  • Polarization

    RHCP

CP Beam Antenna: Azimuth X

Jump to...
  • Beam width

    63 Degree

  • F/B ratio

    -10 dB

  • F/S ratio

    -12 dB

CP Beam Antenna: Azimuth Y

Jump to...
  • Beam width

    70 Degree

  • F/B ratio

    -9 dB

  • F/S ratio

    -12 dB

  • Squint

    < 2 dB

  • Gain

    9 dBd

CP Beam Antenna: Physical

Jump to...
  • Mount threads

    1/4-20", 3/8-16", 5/8-27"

  • Operating temperature

    -9 Degree - 130 Degree F (-23 Degree - 54 Degree C)

  • Connector

    N female (BNC supplied)

  • Dimensions (L x H)

    14 x 14" (355 x 355mm)

  • Weight

    2.5 lbs (1.13kg)

RG8X Antenna Cable

Jump to...
  • Impedance

    50 Ohm

  • Connector

    BNC Male to BNC Male

  • Length

    25' (7.6m)

Designed For Use With:

  • UHF Distribution & Receivers

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About RF Venue Monitor Upgrade Pack

Just like a professional stage, your wireless In-Ear Monitor (IEM) system can be significantly enhanced with the use of a transmitter combiner and a helical antenna. The IEM Performer's Pack from RF Venue is a comprehensive solution designed to amalgamate up to 8 IEM transmitters of any brand into a single, powerful helical antenna.

The advantage of combining IEMs onto one antenna is that it eliminates the potential for interference and serious RF and audio signal issues that can arise when using multiple antennas. The CP Beam helical antenna, included in the pack, not only amplifies your IEM system's transmitting power by nearly 8X but also focuses the signal directly on your performers, preventing unnecessary signal scattering.

The IEM Performer's Pack is compatible with all brands of IEM systems and is optimized to perform at low power settings of 50 milliwatts or lower. The COMBINE8 8-Channel Antenna Signal Combiner, a key component of the pack, consolidates up to eight in-ear monitor transmitter signals into a single rear panel mounted antenna connector. This combiner also provides DC power to up to 8 IEM transmitters, eliminating the need for additional power supplies.

The CP Beam Antenna, a lightweight, circularly polarized beam antenna, ensures a consistent signal with in-ear monitors (IEMs), wireless microphone systems, and other UHF communication devices. Its compact design allows for easy setup, transport, and storage. Unlike other bulky helical antennas, the CP Beam is quickly deployed and stowed, making it the preferred choice for IEMs due to its circular polarization.

The CP Beam Antenna provides a constant signal regardless of the IEM receiver's position, offering better reception compared to omnidirectional antennas. It reduces the risk of dropouts, which can be a common issue with many IEM belt packs that are limited to a single whip antenna and change orientation as performers move around a stage.

The pack also includes a 25' RG8X Low Loss Coaxial Antenna Cable, a premium, double shielded cable with BNC male connectors, designed for wireless audio applications. This cable ensures flawless RF performance and prevents system failure due to crimps or dings in the cable.

In summary, the IEM Performer's Pack from RF Venue is a comprehensive, professional-grade solution designed to enhance your wireless In-Ear Monitor system's performance, ensuring a consistent, powerful signal for your performers.

RF Venue Monitor Upgrade Pack Features

  • COMBINE8 8-Channel Antenna Signal Combiner Features
  • Compatible with all IEM Transmitters
  • Freedom to place one directional antenna outside the rack for better line-of-sight and improved wireless performance
  • 1RU Full rack width to install near transmitters
  • CP Beam Antenna Features
  • Provides constant signal regardless of IEM receiver position
  • Not buried in a rack - better signal with line of sight to IEMs
  • Can collapse to fit in a rack drawer for transport
  • Focused beam signal - for better reception compared to omnidirectional
  • RG8X Low Loss Coaxial Antenna Cable Features
  • Premium low-loss RG8X coaxial cable with white jacket and BNC (male) connectors
  • Double-shielded (braid over foil) design. 25' (7.6m)

Key Features

  • Optimize your in-ear monitor system with the COMBINE8 antenna signal combiner.
  • Achieve superior sound quality using the CP Beam antenna's focused signal.
  • Enjoy wide compatibility with UHF distribution & receivers for seamless setup.
  • The included RG8X low loss coaxial antenna cable ensures minimal signal loss.
  • Power your setup efficiently with the auxiliary AC power cable and DC octopus.
  • Durable design ensures reliable performance for professional audio environments.

What's in the box:

  • RF Venue COMBINE8 8-Channel Antenna Signal Combiner
  • CP Beam Antenna with Stand Mount and N-BNC Connector
  • 8x BNC Jumpers
  • Auxiliary AC Power Cable with 8 Outputs
  • DC Octopus 8-Connector Power Distribution Cable
  • AC Power Cord
  • 25' RG8X Low Loss Coaxial Antenna Cable
  • RF Venue 1 Year Limited Warranty
