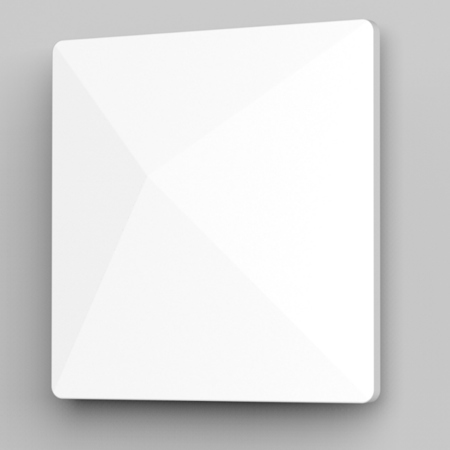

RF Venue Diversity Architectural Antenna for Wireless Microphones, White

SKU: RFVDARC MFR: D-ARC
Earn VIP Reward Points

Key Features

  • Enhance wireless microphone clarity with this RF Venue diversity antenna system.
  • Achieve superior signal strength; this antenna operates from 470 - 616 MHz.
  • Enjoy versatile mounting: install this wireless microphone antenna on walls or ceilings.
  • Ensure reliable audio; its diversity flood pattern minimizes signal dropouts effectively.
  • Durable design ensures consistent performance in temperatures from 14 to 104°F.
  • Optimize your sound; the 3 dBd gain boosts your wireless microphone signal strength.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RF Venue Architectural Antenna Specifications

General

General

Jump to...
  • Color

    White

Electrical

Jump to...
  • Operating frequency

    470 - 616 MHz

  • Bandwidth

    146 MHz

  • Impedance

    50 Ohm

  • Average return loss

    -6.4 dB

  • Pattern type

    Diversity Flood

  • Gain

    3 dBd

  • Polarization

    Linear

  • Mount location

    Wall or ceiling

  • Operating temperature

    14 Degree - 104 Degree F (-10 Degree - 40 Degree C)

  • Connector

    BNC female

Physical

Jump to...
  • Dimensions

    11 x 11 x 2" (279.4 x 279.4 x 50.8mm)

  • Weight

    2 lbs (907.18g)

  • UPC Code

    672975227395

Designed For Use With:

  • UHF Distribution & Receivers

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About RF Venue Architectural Antenna

The new Diversity Architectural Antenna by RF Venue is a high performance antenna system for wireless microphones. Featuring a slim profile enclosure, the Diversity Architectural Antenna can be installed in any position on a wall or ceiling and can be painted to match any interior. Using a unique patent-pending dual-feed antenna design, both A and B diversity connections are provided, so there's no need to install two separately spaced antennas resulting in a more professional look that room designers and architects appreciate.

The Diversity Architectural antenna installs in minutes, with a wall or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the two rear-mounted BNC terminated coaxial cables to your in-wall or in-ceiling coaxial cable run and the Diversity Architectural is ready for use.

The Diversity Architectural antenna builds on the highly acclaimed Diversity Fin, eliminating the most common signal dropouts caused by changes in angle and orientation of the RF signal. Ideally suited for conference rooms, multi-purpose meeting spaces, training rooms, and houses of worship, the Diversity Architectural fits into any interior design and delivers professional RF performance in a sleek industrially designed enclosure.

RF Venue Architectural Antenna Features

  • Blends into any background
  • Two antennas in one package
  • Avoid Dropouts with Wireless Mics
  • Installs in minutes with a wall or ceiling-mount

Key Features

  • Enhance wireless microphone clarity with this RF Venue diversity antenna system.
  • Achieve superior signal strength; this antenna operates from 470 - 616 MHz.
  • Enjoy versatile mounting: install this wireless microphone antenna on walls or ceilings.
  • Ensure reliable audio; its diversity flood pattern minimizes signal dropouts effectively.
  • Durable design ensures consistent performance in temperatures from 14 to 104°F.
  • Optimize your sound; the 3 dBd gain boosts your wireless microphone signal strength.

What's in the box:

  • RF Venue Diversity Architectural Antenna (White)
  • Ceiling Mounting Hardware
  • Wall Mounting Hardware
  • RF Venue 1 Year Limited Warranty
