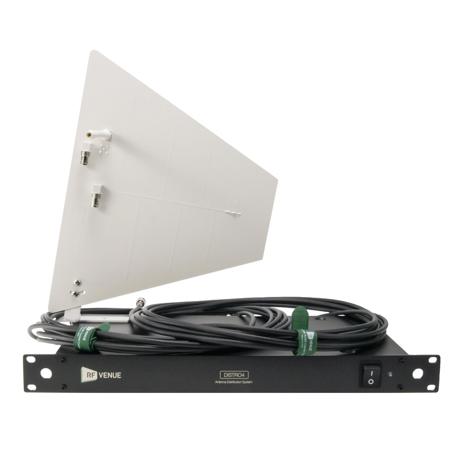

RF Venue DISTRO4 RF and DC 4-Channel Antenna Distribution System with Cloth-Covered Diversity Fin Antenna and Cables Bundle, White

SKU: RFVDFWDSTRO4 MFR: DFINWDISTRO4
Earn VIP Reward Points

Key Features

  • Optimize your audio setup with this 4-channel antenna distribution system bundle.
  • Enjoy superior RF signal quality with the included Diversity Fin antenna (white).
  • This antenna system supports a wide 470-952MHz frequency range for clear audio.
  • Includes coaxial cables and DC power jumpers for seamless connectivity and setup.
  • Distributes DC power over coax to external antennas, simplifying your setup.
  • Boost your wireless microphone system's performance with this antenna distribution.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RF Venue DISTRO4 Specifications

DISTRO4 RF & DC 4-Channel Antenna System

DISTRO4 RF & DC 4-Channel Antenna System

Jump to...
  • Frequency range

    470 - 952MHz

  • RF output level (gain)

    3 dB ( +/-2 dB)

  • Cascade output level

    0 dB - +2 dB

  • Output connection isolation

    >= 25 dB

  • Third order intercept point

    24 dBm

  • Impedance

    50 Ohm

  • Power consumption

    60W

  • Input AC voltage

    100 - 240V switching

  • DC over coax (to external antennas)

    12 - 14 VDC

  • Output DC voltage (to receiver jacks)

    +12V

  • Output DC connectors

    0.21" (5.5mm) (OD)
    0.1" (2.1mm) (ID)

  • Dimensions (W x H x D)

    18.8 x 1.7 x 9.8" (480 x 45 x 250mm)

  • Weight

    4.7 lbs (2.15Kg)

Diversity Fin

Jump to...
  • Color

    White

  • Operating frequency

    470-698 MHz

  • Bandwidth

    228MHz

  • Average return loss

    -9.4 dB

  • Impedance

    50 Ohm

  • Beam width (LPDA)

    140 Degree azimuth

  • F/B ratio (LPDA)

    -8 dB

  • F/S ratio (LPDA)

    -5 dB

  • Gain (LPDA)

    5 dBd

  • Beam width (Dipole)

    100 Degree azimuth

  • F/B ratio (Dipole)

    -5 dB

  • F/S ratio (Dipole)

    -13 dB

  • Gain (Dipole)

    1.8 dBd

  • Mount threads

    1/4-20, 3/8-16, 5/8-27

  • Operating temperature

    -9.4 Degree F - 129.2 Degree F (-23 Degree C - 54 Degree C)

  • Connectors

    2x BNC female

  • Dimensions (L x H)

    11.8 x 14.5" (300 x 370mm)

  • Weight

    16 oz (454g)

25' RG8X Coaxial Cable

Jump to...
  • Length

    25' (7.6m)

Designed For Use With:

  • UHF Distribution & Receivers

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About RF Venue DISTRO4

After extensive research and development, RF Venue presents the DISTRO4 RF and DC 4-Channel Antenna Distribution System, a high-quality and reliable solution for distributing diversity RF and DC power across four wireless microphone receivers. This innovative system is brand-agnostic, meaning it can work seamlessly with any brand of receivers.

As a true distribution amplifier, the DISTRO4 efficiently splits signals from two antennas or a single Diversity Fin connected to its rear panel. It then amplifies these signals before delivering them to multiple receivers housed in a rack. This efficient distribution system is perfect for large-scale events, broadcasts, and surveillance applications.

For larger setups, the DISTRO4 includes an additional cascade port. This feature allows for daisy-chaining multiple units together, accommodating up to 16 receivers per antenna pair. This system also boasts a 2000 mA internal power supply, eliminating the need for an external power source.

Included in this bundle is the patented Diversity Fin, a multi-purpose antenna designed to reduce dropouts. This antenna features a cross-polarized, hybrid design that combines one LPDA and one dipole antenna in an orthogonal configuration. This unique design captures both vertically and horizontally polarized waves, providing the same functionality as two "shark fin" paddles while greatly enhancing RF and audio performance.

The Diversity Fin is a versatile tool that has been adopted across multiple pro audio segments for its performance, convenience, space, and cost benefits. Whether it's high-profile live sound events, film and TV productions, or routine installations in schools and churches, the Diversity Fin is the ideal all-purpose external antenna for diversity microphone systems of any brand.

To ensure flawless RF performance, this bundle also includes 25' RG8X Coaxial Cables. These premium, low-loss, 50 Ohm RG8X coaxial cables are made in the USA and come with BNC male connectors. They are double shielded with braid over foil for a perfect balance between loss and flexibility. Each cable is custom run to RF Venue's specifications, terminated in-house, and quality checked on calibrated Agilent network analyzers for guaranteed performance.

In conclusion, the DISTRO4 RF and DC 4-Channel Antenna Distribution System with Cloth-Covered Diversity Fin Antenna and Cables Bundle is a durable, efficient, and reliable choice for any professional audio setup.

RF Venue DISTRO4 Features

  • 4-channel antenna distribution system amplifies & distributes RF/DC signals to multiple receivers
  • Universal compatibility with any brand wireless microphone receivers for versatile use
  • Includes patented Diversity Fin Antenna for superior RF performance & dropout reduction
  • Cascade port for daisy-chaining multiple units, supporting up to 16 receivers per antenna pair
  • High-quality 25' RG8X Coaxial Cables with BNC connectors ensure optimal signal integrity
  • Internal 2000 mA power supply for streamlined setup without external power sources

Key Features

  • Optimize your audio setup with this 4-channel antenna distribution system bundle.
  • Enjoy superior RF signal quality with the included Diversity Fin antenna (white).
  • This antenna system supports a wide 470-952MHz frequency range for clear audio.
  • Includes coaxial cables and DC power jumpers for seamless connectivity and setup.
  • Distributes DC power over coax to external antennas, simplifying your setup.
  • Boost your wireless microphone system's performance with this antenna distribution.

What's in the box:

  • 4-Channel Antenna Distribution System
  • Diversity Fin Antenna (White)
  • 2x 25' Coaxial Cables
  • 4x Coaxial RF Cables
  • 4x DC Power Jumpers
  • RF Venue 1 Year Limited Warranty
