RF Venue DISTRO9 HDR 9-Channel Antenna Distribution System with Diversity Omni Antenna and 2x 25' RG8X Antenna Cable

SKU: RFVDOMNID9 MFR: D-OMNID9
Earn VIP Reward Points

Key Features

  • DISTRO9 HDR system ensures top-notch sound quality for wireless microphone setups.
  • Enjoy wideband antenna coverage (50-1000 MHz) for reliable VHF, UHF, and 900 band signals.
  • Diversity Omni Antenna provides superior signal reception, minimizing dropouts effectively.
  • Includes RG8X low loss cables, maintaining signal strength for optimal audio performance.
  • Simplify power with the DC Octopus, distributing power efficiently to multiple receivers.
  • Rugged build and weather-resistant cover ensures durability for indoor/outdoor use.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RF Venue DISTRO9 Specifications

DISTRO9 HDR Antenna Distribution System

DISTRO9 HDR Antenna Distribution System

Jump to...
  • Frequency range

    50 - 1000 MHz (VHF, UHF, +900 bands)

  • RF output level

    Gain: +/- 3dB

  • Output connection isolation

    60dB @ 510MHz, 80dB @ 200 MHz

  • Third order intercept point

    15dBm @ VHF, 20+ @ UHF

  • Impedance

    50 Ohm

  • Power Requirements

    50/60 HZ, 2A

  • Fuse

    T3.15A/250V

  • Input AC voltage

    100 - 240 VAC

  • DC over coax

    12 VDC 100mA (To external antennas)

  • Output DC voltage

    12V 3A (To receiver jacks)

  • Output DC connectors

    Anderson Power Pole

  • Dimensions (W x H x D)

    19 x 2 x 10" (482.6 x 50.8 x 254mm)

  • Weight

    6 lbs (2.7kg)

Diversity Omni Antenna: General

Jump to...
  • Color

    Black and Gold

Diversity Omni Antenna: Electrical

Jump to...
  • Operating frequency

    470 - 616 MHz

  • Bandwidth

    146 MHz

  • Average return loss

    Vertical: -10.5 dB
    Horizontal: -8.3 dB

  • Impedance

    50 Ohm

Diversity Omni Antenna: Vertical

Jump to...
  • Beam width

    360 Degree azimuth

  • F/B ratio

    0 dB

  • F/S ratio

    0 dB

  • Gain

    +2 dBd @ 500MHz

Diversity Omni Antenna: Horizontal

Jump to...
  • Beam width

    360 Degree azimuth

  • F/B ratio

    0 dB

  • F/S ratio

    -1 dB

  • Gain

    -2 dBd @ 500MHz

Diversity Omni Antenna: Physical

Jump to...
  • Mount threads

    1/4-20, 3/8-16, 5/8-27

  • Operating temperature

    -9 Degree - 130 Degree F (-23 Degree - 54 Degree C)

  • Connector

    2x BNC female

  • Dimensions (L x W)

    4.2 x 8" (106.68 x 203.2mm)

  • Weight

    6.6 oz (187g)

RG8X Antenna Cable

Jump to...
  • Impedance

    50 Ohm

  • Connector

    BNC Male to BNC Male

  • Length

    25' (7.6m)

  • UPC Code

    672975227364

Designed For Use With:

  • UHF Distribution & Receivers

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About RF Venue DISTRO9

You can elevate your wireless microphone setup with the DISTRO9 HDR 9-Channel Antenna Distribution System. This innovative system offers a unique approach to high-quality RF signal distribution, designed to save time and optimize rack space. With 9 outputs and inputs for 2 zones consolidated into a single rack space, the DISTRO9 HDR is a space-efficient solution for your audio needs.

Each output is impeccably clean, thanks to the low noise figure amplifiers and superior gain structure. This ensures a high dynamic range across the spectrum, providing clear and consistent audio. The DISTRO9 HDR is also designed for easy multi-zone installations, with two zone antenna inputs that allow for coverage of large areas or multiple rooms. Additionally, DC power is available for in-line amplifiers or active antennas, enhancing the system's versatility.

The package also includes a Diversity Architectural Antenna by RF Venue. This high-performance antenna system features a slim profile enclosure that can be installed on a wall or ceiling and painted to match any interior. The patent-pending dual-feed antenna design provides both A and B diversity connections, eliminating the need for two separately spaced antennas. This results in a more professional look that is appreciated by room designers and architects.

The Diversity Architectural Antenna is easy to install, with a pre-drilled rear plate that connects to the front plate with the included mounting screws. The antenna is designed to eliminate common signal dropouts caused by changes in the angle and orientation of the RF signal, making it ideal for conference rooms, multi-purpose meeting spaces, training rooms, and houses of worship.

The system also comes with a 25' RG8X Low Loss Coaxial Antenna Cable. This premium, made-in-USA cable is double shielded with a braid over foil, providing a perfect balance between loss and flexibility. The cable is terminated in-house and passes quality assurance protocols on calibrated Agilent network analyzers for guaranteed performance.

Lastly, the package includes a DC Octopus 8-Connector Power Distribution Cable with an Anderson PowerPole Connector, designed for use with the DISTRO9 HDR. This cable ensures efficient power distribution, enhancing the overall performance of your wireless microphone setup.

RF Venue DISTRO9 Features

  • DISTRO9 HDR Antenna Distribution System Features
  • High end RF performance at a competitive price
  • Works with all Wireless Microphones
  • Designed and Assembled in USA and ETL Listed in the US and Canada
  • Turnkey bundles are available for easy setup
  • Diversity Omni Antenna Features
  • Compact design for easy placement, position wherever coverage is needed
  • Perfect for multi-zone projects where mics move between rooms, or outdoors where wide areas of coverage are needed
  • Weather resistant design allows it to be mounted outdoors by installing protection for the connectors and the provided Cordura nylon cover
  • RG8X Low Loss Coaxial Antenna Cable Features
  • Premium low-loss RG8X coaxial cable with white jacket and BNC (male) connectors
  • Double-shielded (braid over foil) design. 25' (7.6m)

Key Features

  • DISTRO9 HDR system ensures top-notch sound quality for wireless microphone setups.
  • Enjoy wideband antenna coverage (50-1000 MHz) for reliable VHF, UHF, and 900 band signals.
  • Diversity Omni Antenna provides superior signal reception, minimizing dropouts effectively.
  • Includes RG8X low loss cables, maintaining signal strength for optimal audio performance.
  • Simplify power with the DC Octopus, distributing power efficiently to multiple receivers.
  • Rugged build and weather-resistant cover ensures durability for indoor/outdoor use.

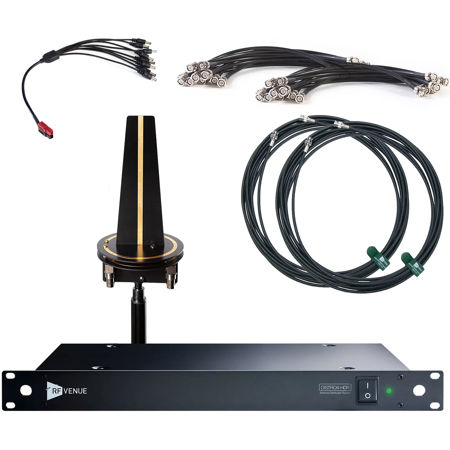

What's in the box:

  • RF Venue DISTRO9 HDR Antenna Distribution System
  • Diversity Omni Antenna
  • DC Octopus 8-Connector Power Distribution Cable
  • 2x 25' RG8X Low Loss Coaxial Antenna Cable
  • AC Power Cord
  • Stand Mount Bracket
  • Weather Resistant Cover
  • RF Venue 1 Year Limited Warranty
