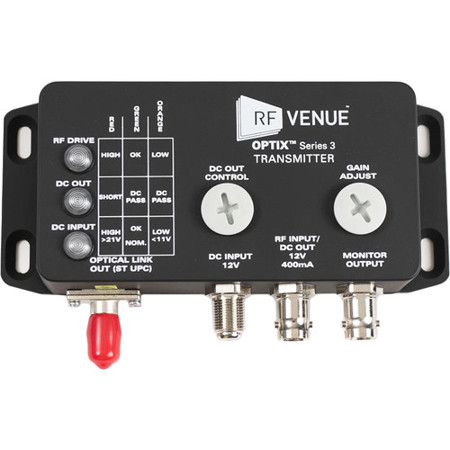

RF Venue Optix Series 3 RF Over Fiber 1-Channel Remote Antenna Distribution System for Wireless Microphones

SKU: RFVOPTIX1S3 MFR: OPTIX1-S3
Earn VIP Reward Points

Key Features

  • Extend your wireless microphone range with this RF Venue antenna distribution system.
  • Ensure top-notch sound quality by minimizing signal loss with RF over fiber technology.
  • This UHF distribution & receivers system offers wideband frequency support (175-960MHz).
  • Enjoy seamless connectivity with BNC female RF connectors for easy setup with microphones.
  • Durable design operates reliably from -13 to 167°F, perfect for any environment.
  • Maintain signal integrity with a low VSWR, ensuring your wireless mics perform optimally.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RF Venue OPTIX Series 3 Specifications

  • Typical operating frequency

    175 - 213, 470 - 698, 900 - 960MHz

  • VSWR

    Average: < 2.5:1

  • Impedance (nom)

    50 Ohm

  • RF input power

    Maximum: < 0 dBm / 1 mW

  • DC operating voltage

    5 - 22V

  • Power supply voltage

    12.25 VDC

  • Module Power Draw

    Transmitter: -166 mA @ 12VDC
    Receiver: -258 mA @ 12VDC

  • Optical wavelength

    Transmitter: 1310 nm

  • Operating temperature

    -13 Degree F - 167 Degree F (-25 Degree C - 75 Degree C)

  • RF Connectors

    BNC female

  • Optical connectors

    ST/UPCDimensions(138 x 77 x 33mm) (each, including flange and connectors)

  • Weight

    Transmitter: 7.8 oz (223g)
    Receiver: 8 oz (229g)

Designed For Use With:

  • UHF Distribution & Receivers

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About RF Venue OPTIX Series 3

OPTIX Series 3 is a high performance RF to fiber optic (RFoF) conversion system designed to facilitate the remote placement of wireless audio antennas. The OPTIX Transmitter module converts RF signals arriving from an antenna source into a singlemode optical signal, sending that signal down a length of fiber-optic cable to the OPTIX Receiver module which converts the source signal back into RF. Without any signal loss over the optical cable, the OPTIX system can extend the range of antenna placement up to several kilometers, eliminating the need for bulky and lossy coaxial cable runs.

Well-suited for live production as well as installed sound, OPTIX Series 3 features extensive user configurable controls to manage signal level, apply DC power for active antennas or amplifiers, and even directly monitor outputs to dial in performance. Compatible across VHF, UHF, and the 900 MHz band, OPTIX Series 3 is compatible across any brand wireless audio system.

RF Venue OPTIX Series 3 Features

  • OPTIX RF to fiber optic converters can be used on any wireless microphone distribution system to remote receive antennas via single mode ST/UPC terminated fiber cable
  • Attenuators are required for transmit applications, such as IEMs and IFBs. Please exercise caution when using active devices with OPTIX converters. Incorrect configuration can result in product failure and damage and will void the warranty
  • Proper fiber optic hygiene procedures must be used at all times. Microscopic contaminants as small as 9 microns that settle over the optical aperture can compromise performance
  • Factory Presets: DC (0), Gain Adjust (9), Gain Mode, (1), Output Level (3). Changing these settings is only recommended for advanced users

Key Features

  • Extend your wireless microphone range with this RF Venue antenna distribution system.
  • Ensure top-notch sound quality by minimizing signal loss with RF over fiber technology.
  • This UHF distribution & receivers system offers wideband frequency support (175-960MHz).
  • Enjoy seamless connectivity with BNC female RF connectors for easy setup with microphones.
  • Durable design operates reliably from -13 to 167°F, perfect for any environment.
  • Maintain signal integrity with a low VSWR, ensuring your wireless mics perform optimally.

What's in the box:

  • Transmitter Module
  • Receiver Module
  • RF Venue 1 Year Limited Warranty
