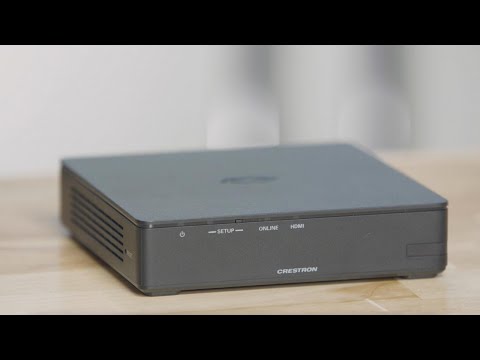

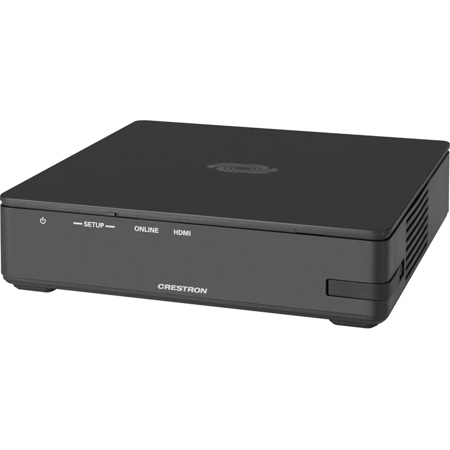

Crestron AirMedia Receiver 3100 with Wi-Fi Network Connectivity

SKU: RG6511540

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Crestron AM-3100-WF Specifications

Communications

Communications

Jump to...
  • Ethernet

    100/1000 Mbps, auto-switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, DHCP, SSL, TLS3, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1x, Active Directory authentication, HTTPS web browser setup and XiO Cloud service, 802.3af compliant

  • Wi-Fi

    Dual-band 802.11a/b/g/n/ac/ax (2.4 GHz & 5 GHz)
    Up to 100' (30m) range at 80 Mbps, subject to site-specific conditions

  • Bluetooth Communications

    Bluetooth version 5.0

  • AirMedia

    Via Ethernet: IPv4, mDNS, TLS, AES
    Via wireless access point: IEEE 802.11/b/g/n/ac/ax, 2.4 GHz or 5 GHz

  • USB Host

    USB 2.0 for connecting a USB conferencing peripheral
    USB 3.0 for connecting a USB conferencing peripheral

  • USB Device

    USB 3.0 for computer console (installer setup and firmware update)

  • HDMI Output

    HDCP 2.2, EDID, CEC
    Supports management of HDCP and EDID

  • Input Signal Types

    AirMedia
    Simultaneous display of up to four sources with AirMedia Canvas

  • Maximum Input Resolutions

    AirMedia presentation: 1920x1080@30Hz (1080p30)
    AirMedia Connect Adapter: 3840x2160@30Hz (4K30)

  • Output Signal Types

    HDMI (DVI compatible)

  • HDMI Output Resolutions

    1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x800@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 3840x2160@30Hz (2160p30), 3840x2160@50Hz (2160p50), 3840x2160@60Hz (2160p60)

  • Background & Logo File Support

    JPEG, PNG

  • Input Signal Types

    AirMedia

  • Output Signal Type

    HDMI

  • Input/Output Format

    2 channel LPCM

AirMedia Software

Jump to...
  • OS Support

    Apple iOS, Android, Windows 10, Windows 11, macOS, Chrome OS

  • Video Frame Rate

    Up to 30 fps, audio supported

  • Output Resolutions

    640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x800@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60)

  • Bitrate Peak

    0.25 to 8.5 Mbps, variable depending on content complexity

  • Bitrate Average

    1.4 Mbps typical

  • Audio Format

    Stereo

Wireless Conferencing

Jump to...
  • OS Support (AirMedia Application)

    Windows 10, Windows 11

  • OS Support (AirMedia Connect Adapter)

    Windows 10, Windows 11, macOS 11 or later

  • Supported Conferencing Services

    Microsoft Teams software
    Zoom software

Connectors

Jump to...
  • microSD

    For caching digital signage content

  • HDMI Output

    1x HDMI Type A connector
    HDMI digital video/audio output (DVI compatible)

  • USB

    2x USB Type A connectors
    USB 2.0 host port for USB conferencing peripheral
    USB 3.0 host port for USB conferencing peripheral
    1x USB Type B connector
    USB 3.0 device port for computer console

  • LAN PoE+

    1x 8-pin RJ-45 connector
    100Base-TX/1000Base-T Ethernet port and PoE+ Class 4

  • 24VDC 1.25A

    1x 0.08 x 0.21" (2.1 x 5.5mm) DC power connector
    24VDC power input
    PW-2412WU power pack sold separately

Controls and Indicators

Jump to...
  • PWR

    1x White LED, indicates operating power supplied via the local power pack or PoE+

  • Reset

    1x Recessed push button for hardware reset

  • Setup

    1x Recessed push button for onscreen IP address display and for pairing the device to an AM-TX3-100
    1x White LED, indicates pairing status

  • Online

    1x White LED, indicates control system connection

  • HDMI Out

    1x White LED, indicates HDMI signal presence at the HDMI output

  • microSD

    1x microSD slot

  • LAN PoE+

    2x LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity

  • Power over Ethernet

    IEEE 802.3af Class 4 Powered Device

  • Power Pack (sold separately)

    Input: 100-240VAC, 50/60 Hz
    Output: 1.25A @ 24VDC
    Model: PW-2412WU

  • Power Consumption

    13.5W (typical) ( When wireless conferencing is used, the receiver must be powered by either Power over Ethernet+ (PoE+) or a power pack (sold separately))

Environmental

Jump to...
  • Temperature

    32 Degree to 104 Degree F (-0 Degree to 40 Degree C)

  • Humidity

    10% to 90% RH (non-condensing)

  • Heat Dissipation

    46.0 BTU/hr

Construction

Jump to...
  • Chassis

    Plastic, black finish, with (4) integrated mounting holes, vented sides

  • Mounting

    Freestanding, surface mount

Compliance

Jump to...
  • Compliance

    Regulatory Model: M202018001

Physical

Jump to...
  • Dimensions (W x D x H)

    5 x 5 x 1.21" (127 x 127 x 31mm)

  • Weight

    11.64 oz (330g)

About Crestron AM-3100-WF

The AirMedia Receiver 3100 (AM-3100-WF) enables secure wireless collaboration in the modern digital workspace. Easy to deploy and manage, install the Receiver in conference rooms, huddle rooms, lounges, lobbies, or almost any space to establish a productive meeting environment.

Connect and Present
The Receiver can be placed beneath, mounted beside, or mounted invisibly behind a display to implement a smart room with wireless collaboration. It features AirMedia wireless presentation capability, an HDMI output to the display (up to 4K), and various USB interfaces for wireless conferencing. Connect your laptop, smart phone, tablet, AirMedia Connect adapter, or other source type to instantly present the source image on the display.

AirMedia Wireless Presentation
With AirMedia technology, users can wirelessly present content from laptops, smartphones, and tablet devices via built in Wi-Fi network capabilities or via an external Wi-Fi wireless network. Present content from desktop or laptop computers using downloadable client software, the AirMedia extension for the Google Chrome web browser, or Miracast screen mirroring technology (Windows 10 and Windows 11 computers only). Present content from Android and iOS mobile devices with the AirMedia app.

Multi-Source Presentation
Present up to four sources simultaneously with the AirMedia Canvas feature. To maximize screen coverage, AirMedia Canvas automatically configures the best possible layout based on the number of active presenters, the type of sources, and their aspect ratios. Use the AirMedia app or a connected touch screen (sold separately) to manage sources and their position on the display.

Wireless Conferencing
Wireless conferencing provides a premium collaboration experience by enabling video calling from almost any device.2 The AirMedia application provides wireless access to a host of connected conferencing peripherals, such as soundbars, cameras, or speakerphones. Peripherals are immediately available on the user's laptop for use in Microsoft Teams software or Zoom software.

Enhanced Onscreen Experience
When no source is connected, the AM-3100-WF displays a customizable welcome screen on the room display with simple instructions for connecting and presenting. Integration with Microsoft Exchange Server (for Outlook and Microsoft 365 software users), Google Calendar, or Crestron Fusion room scheduling software allows the space's availability and meeting details to appear onscreen. As the meeting progresses, notifications appear periodically to indicate both the time left in the meeting and the next scheduled event. Pop-up messages sent from Crestron Fusion may also appear in the event of an emergency or to deliver an important announcement.

Add-on Control Options
Enable manual control of the AM-3100-WF by adding a 7 in. or 10 in. Crestron TS- or TSW- 70 series touch screen. The touch screen provides an additional view of the room schedule and meeting details as well as controls for input source selection, display power on/off, and display volume and mute. Add a Power over Ethernet occupancy sensor (CEN-ODT-C-POE) to control display or digital signage on/off based on room occupancy or vacancy.

XiO Cloud Provisioning and Management Service
The AM-3100-WF is compatible with the XiO Cloud service, which enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service allows for system alerts and network management and provisioning.

Digital Signage Functionality
Integrate the Appspace digital signage application or other web-based signage providers with the AM-3100-WF. The AM-3100-WF can display digital signage content when no presentation is being made or the room is not occupied.

Crestron Fusion Room Monitoring
Presentation spaces can be managed and centrally monitored through the Crestron Fusion enterprise management service. By adding an optional occupancy sensor (CEN-ODT-C-POE), the AM-3100-WF can report and log when people are in the space, turn the display on and off accordingly, and make unused spaces available for new bookings. Crestron Fusion software supports room scheduling, and can integrate with a variety of third-party calendaring applications. Instant alerts notify the help desk to rapidly resolve any problems and maximize uptime and workflow.

Enterprise-Grade Security
The AirMedia Presentation System is an enterprise-grade solution that can be deployed across hundreds of spaces and set up easily using just a web browser, Crestron Fusion, or XiO Cloud software. Employing standard network security protocols such as 802.1x network access control, Active Directory authentication, and AES content encryption, the AM-3100-WF protects privacy and ensures compliance with your organization's IT policies.

Hybrid Wireless Connectivity with the AirMedia Adapter
As an alternative to software based AirMedia wireless presentation, the AM-3100-WF is compatible with the AirMedia Connect Adapter (AM-TX3-100). Simply plug the adapter into a personal device's USB-C port to connect to the AM-3100-WF. The adapter communicates wirelessly with the system using built-in Wi-Fi network capabilities to display content up to a 4K30 resolution. During presentations, content is scaled to the selected HDMI output resolution.

Note: All video inputs will be scaled to the selected HDMI output resolution.

Crestron AM-3100-WF Features

  • Complete room solution enables secure wireless AirMedia presentation from laptops, smartphones, tablet devices, and AirMedia Connect Adapters
  • Enables smart automation via intelligent display control, personal device control, occupancy detection, and integration into a broader connected ecosystem
  • Enterprise-grade security and content encryption protects privacy and ensures compliance with IT policies
  • XiO Cloud service support for remote provisioning and management
  • Built-in digital signage functionality with support for Appspace software and other web-based signage providers
  • Supports content sharing of up to four simultaneous sources for multi-user collaboration with AirMedia Canvas
  • Wireless conferencing and presentation allows for collaboration with in-room and remote participants

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Complete room solution enables secure wireless AirMedia presentation
  • Enables smart automation via intelligent display control, personal device control
  • Enterprise-grade security and content encryption protects privacy
  • XiO Cloud service support for remote provisioning and management
  • Built-in digital signage functionality with support for Appspace software
  • Supports content sharing of up to four simultaneous sources for multi-user collaboration

What's in the box:

  • Crestron AirMedia Receiver 3100 with Wi-Fi Network Connectivity
  • (PW-2412WU Power Pack Not Included)
  • Crestron 3 Year Limited Warranty
