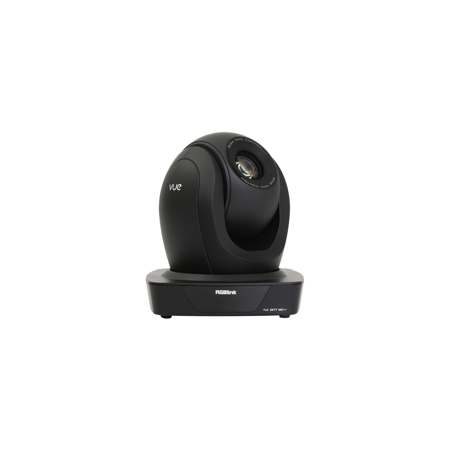

RGBlink vue 2.07MP Full HD HDMI/SDI/IP PoE 20x PTZ 2-Camera Streaming Kit with Controller

SKU: RG9819000070

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of zoom capabilities do the RGBlink vue PTZ cameras offer?

The RGBlink vue PTZ cameras feature a 20x optical zoom and a 10x digital zoom for capturing detailed video from a distance.

What output options are available with the RGBlink vue cameras?

The cameras offer versatile output options, including HDMI, SDI, H.264, and H.265, to accommodate various streaming and recording needs.

How does the TALLY crown light indicator enhance live productions?

The TALLY crown light indicator is integrated into the camera housing for 360-degree visibility, ensuring clear communication and coordination during live productions.

What protocols does the PTZ Camera Controller support?

The PTZ Camera Controller supports Onvif, Visca, and Pelco-D/P protocols, allowing for seamless integration and management of Ethernet/Serial cameras.

How many cameras can be controlled with the PTZ Camera Controller?

The PTZ Camera Controller can manage up to 255 cameras, providing extensive control capabilities for large-scale video setups.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

RGBlink vue Specifications

Interface

Interface

Jump to...
  • Output

    3G SDI: 1x BNC
    HDMI: 1xHDMI-A
    USB: 1xUSB-A
    LAN: 1xRJ45

Interface - Camera

Jump to...
  • Audio

    IN: 1x 3.5mm Stereo Jack

  • Control

    RS232 IN/OUT: 2x DIN8
    RS485: 1x 4pin Terminal

  • Power

    1x DC12V Jack

Performance - Camera

Jump to...
  • Camera

    Optical Zoom: f = 4.8-96mm
    View Angle: 3.45 Degree - 60.04 Degree
    AV: F1.8 - F2.9
    Digital Zoom: 10X
    Minimum Illumination: 0.5Lux (F1.8, AGC ON)
    DNR: 2D & 3D DNR
    White Balance: Auto/Manual/One Push/3000K to 7000K (selectable)
    Focus: Auto/Manual
    Aperture/Electronic Shutter: Auto/Manual
    BLC: ON/OFF
    WDR: OFF/Dynamic Level Adjustment

  • Camera (Contd.)

    Video Adjustment: rightness/Color/Saturation/Contrast/Sharpness/B/Wmode/Gamma curve
    SNR: >55dB
    Effective Pixels: 2.07 mega-pixel
    Sensor: 1/2.8" HD CMOS

  • Pan-and-Tilt Parameter

    Pan/Tilt Movement: -170 Degree -+170 Degree /-30 Degree -+90 Degree
    Pan/Tilt Control Speed: 0.1-60 Degree /S ; 0.1-30 Degree /S
    Preset Speed/Quantity: Pan:60 Degree /S, Tilt: 30 Degree /S; Up to 255 preset positions (10 remote control)
    360 Degree TALLY: full 360 Degree view of TALLY

Power - Camera

Jump to...
  • Input Voltage

    DC12V/1.5A

  • Max Power

    12W

Environment - Camera

Jump to...
  • Temperature

    14 Degree F-122 Degree F (-10 Degree C-50 Degree C)

  • Humidity

    20%-80%

Physical - Camera

Jump to...
  • Dimensions (W x H x D)

    7.4 x 7.8 x 7.1" (180 x 188 x 198mm)

  • Weight

    3.7 lbs (1.7kg)

Connectors - Controller

Jump to...
  • Communication

    RS232: 1x DB15
    RS422 (RS485): 1x 5Pin Terminal
    LAN: 1x RJ45

Performance - Controller

Jump to...
  • Display

    LCD Screen

  • Key Tone

    ON/OFF

  • Joystick

    Four dimensions (control: up, down, left, right, zoom, rotation)

  • Upgrade

    WEB upgrade

Power - Controller

Jump to...
  • Input Voltage

    DC12V

  • Max Power

    0.6W

Environment - Controller

Jump to...
  • Temperature

    32 Degree F-122 Degree F (0 Degree C-50 Degree C)

  • Humidity

    0%-90%

Physical - Controller

Jump to...
  • Dimensions

    12.5 x 7 x 3.9" (320 x 180 x 100mm)

About RGBlink vue

From professional video presentations to live streaming events, the RGBlink vue 2.07MP Full HD HDMI/SDI/IP PoE 20x PTZ 2-Camera Streaming Kit with Controller is designed to elevate your video capture experience. This comprehensive kit includes two advanced RGBlink vue PTZ cameras, each equipped with a sophisticated ISP image processor and a 2-megapixel sensor, ensuring exceptional image quality. The cameras boast a powerful 20x optical zoom, complemented by a 10x digital zoom, allowing you to capture intricate details from a distance. With versatile output options including HDMI, SDI, H.264, and H.265, these cameras offer flexibility for various streaming and recording needs.

The RGBlink vue cameras are engineered for precision and clarity, featuring auto-focus, dynamic level adjustment with Wide Dynamic Range (WDR), and 2D/3D Dynamic Noise Reduction (DNR), all delivering smooth video at up to 60 frames per second. A standout feature is the unique TALLY crown light indicator, integrated into the camera housing for 360-degree visibility, ensuring seamless communication during live productions. The patented design of the RGBlink vue cameras makes them suitable for any environment, whether in a studio or on location.

Accompanying the cameras is the PTZ Camera Controller, which offers seamless integration with Ethernet/Serial cameras and supports Onvif, Visca, and Pelco-D/P protocols. This controller allows for swift switching between PTZ cameras and precise parameter adjustments. Key features include a user-friendly LCD screen on the front panel, customizable control codes, and joystick-based camera speed control. With multiple control connectors, the system can manage up to 255 cameras, and it supports Power over Ethernet (PoE) for simplified setup.

Enhance your video production capabilities with the RGBlink vue 2.07MP Full HD HDMI/SDI/IP PoE 20x PTZ 2-Camera Streaming Kit with Controller, a versatile solution for capturing high-quality video in any setting.

RGBlink vue Features

  • High speed optical zoom
  • RTSP/RTMP/SRT encoding output
  • High performance in low light scenarios with Wide Dynamic Range
  • H.265/H.264 dual stream output adapted to different network environments
  • Full 1920 x1080p HD resolutions up to 60 frames per second
  • Pan and Tilt Control
  • 20X optical zoom
  • Low-power sleep function
  • Applicable to meeting, live streaming, church, classroom and more
  • Support TALLY
  • Support PoE

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning Full HD video with this PTZ camera kit, perfect for live streaming events.
  • Enjoy flexible connectivity with HDMI, SDI, and IP outputs on these versatile PTZ cameras.
  • Control two cameras simultaneously with the included PTZ controller for seamless production.
  • Experience incredible detail with the 20x optical zoom, ideal for capturing distant subjects.
  • Benefit from PoE technology for simplified setup and power delivery to both PTZ cameras.
  • Excellent low-light performance ensures clear video, even in challenging lighting conditions.

What's in the box:

  • 2x RGBlink vue 2.07MP Full HD HDMI/SDI/IP PoE 20x PTZ Camera
  • PTZ Camera Controller
  • 2x IR Remote Control
  • 2x Power Adapter
  • 2x RS-232 Cable
  • 2x Cat 6 Cable
  • Hard Carrying Case
  • RGBlink 1 Year Limited Warranty
