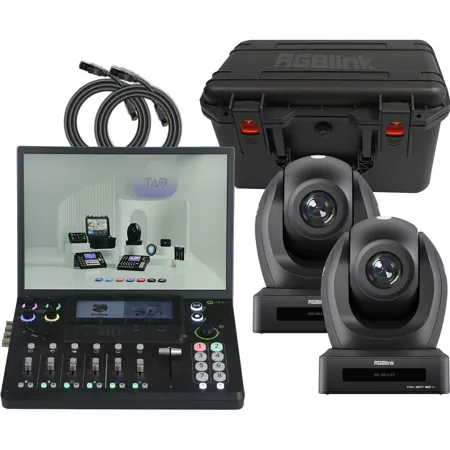

RGBlink Church Video Bundle with mini-edge SDI 10-Channel Switcher, 2x vue PTZ Cameras and 12.3" Monitor

- mini-edge SDI Switcher -
mini-edge SDI features four 4K HDMI 2.0 inputs and four 3G-SDI inputs, one UVC and one NDI bi-direction input & output, supporting digital embedded audio and video signals from PC, Camera and more. Also analog audio by 1 x Phantom, 1 x Line in and 1 x Mic, and a Bluetooth audio.

There are two separate HDMI outputs for multi-viewer Preview, Program or Test Pattern. One USB 3.0 output supports YUY2 and MJPEG capture formats, which can be recognized as a webcam for streaming to Facebook, YouTube, ZOOM, etc.

The UVC can be used bidirectionally for USB disk recording, wireless speaker and wireless microphone. This function can be applied to devices such as RGBlink AI mini. The Ethernet port with NDI license enable is bi-direction too, which ensures that the NDI encoder and decoder can work at the same time.

mini-edge SDI is built in with 5.5-inch TFT panel for menu operation and Multiview video display. Compared with mini-edge, mini-edge SDI has 4 more 3G SDI inputs, a ready-to-be-licensed bidirectional NDI, and also noise reduction for audio inputs. Else it features dynamic output control, multi-view preview, picture in picture, chroma key, transitions, on board PTZ camera controls and much more.

mini-edge SDI is webAPP ready. It is also integrated with TAO Cloud for remote control and can stream to at least 4 content platforms at the same time.

Full-Featured Keyboard Controls at a Glance
The onboard 5.5-inch HD full-color screen monitors all input channels and output images in real time. Full-featured keyboard, fast control of any function.

Integrated PTZ Camera Control
Forget about having multiple separate control panels for video and camera control. mini-edge SDI brings it all together, supporting industry standard VISCA or NDI protocol for PTZ control directly from the mixer. Control up to four separate cameras with pan, tilt, zoom and focus.

Precise Fingertip Control
Integrated joystick provides tactile control for each PTZ camera. Together with the toggle on the front panel, they can control the pan, tilt, zoom and focus of the PTZ camera. Joystick and toggle are additionally dynamically assigned to settings including scale, position and crop for enhanced usability when a layer being controlled.

Professional broadcast SDI input
Longer transmission distance and more professional broadcast SDI camera input.

Pro Color Rendering and Layers: One-Click Chroma Key
Enable presenters to be in virtual studios and environments with Chroma Key. Select from standard key colors and enable Chroma Key directly on mini-edge SDI without the need for an app. Refine color selection and tolerances from the touch screen to optimize.

Pro Level Audio

Capture Every Sound
With two separate insert audio ports, mini-edge SDI has got external balanced mic and line level audio covered. All two ports accept TRS 1/4 in jacks, with MIC supporting direct XLR connection too. Plus there is 48V phantom power directly from mini-edge SDI available too on MIC, negating the need for a separate DI, and instantly making studio mics native connections as they should be.

Follow the Action & Always be In Sync
Set AFV for any HDMI embedded audio so the audio switches with the video source to PVW and PGM automatically. Configure audio delay for MIC inputs or a camera input to keep audio in sync with the video.

Monitor & Set Live
The professional audio console with dynamic button operation is both eye -catching and convenient. It provides precise control, allowing for easy volume adjustment and enabling one - key mute and monitoring, which brings the user an excellent live-streaming experience.

Pro Level Video

Sophisticated Multi-Layer Presentation
Assemble visuals with multiple layers of video and graphics. mini-edge SDI offers 2 full video layers plus background image, two graphic overlays from the media pool as well.

Dynamically Scalable
Each of the two assignable video layers maybe scaled, positioned and cropped with these placed over the background.

Multiple Layer Sophistication
Besides dual video sources, also add media pool graphic overlays for lower -thirds and branding logos, and switch seamlessly between graphic elements.

Intuitively Interactive Operation
Select any source or preset with control panel thumbnails and iconography that makes mini-edge SDI a natural an intuitive way to present and stream.

Transition Like a Pro
mini-edge SDI includes multiple DVE transition effects from preset to program, adding sophistication and effect.

Leverage the Power of Presets
mini-edge SDI supports saving and quick recall of 16 preset scenes, including graphics, audio, and even the parameters of the PTZ position and focus enabling smooth transitions between scenes.

Go Remote
mini-edge SDI web app companion apps for laptop and mobile allow remote use from the mini-edge SDI and the video connections. Fully integrated with the RGBlink TAO cloud control streams remote too with TAO cloud.

Pro Streaming: Enhanced Streaming

H.265
Take advantage of advanced H.265 compression and encoding for higher performance streams.

Capture & Share
Connect mini-edge SDI to a laptop for instant recognition as a webcam to enable capture for apps such as OBS and more of others. Share your presentation on Teams, Zoom or any collaboration platform.

RTMP(s)
Stream up to four multiple platforms simultaneously directly over IP without a laptop. And with TAO cloud integrated directly into mini-edge SDI, cloud-stream up to 32 platforms or connections at the same time.

Recording
The USB 3.0 recording output interface can be directly connected to a hard drive with a maximum capacity of 2T. It can simultaneously record while streaming, and the recording of 160Mbps high-definition video can last 100 hours. Audio and video can be imported and used simply by inserting a USB disk.

- vue PTZ Camera -
The vue 4K PTZ features upgraded HDMI/RTSP output resolution to 4K@30Hz. The vue UHD PTZ boosts HDMI/RTSP output resolution to 4K@60Hz. They support real-time AI tracking of faces/figures/zones and incorporate a new USB 3.0 output port to meet growing demands for remote conferencing and live streaming applications.

Like its vue 4K sibling which boasts a unique 360 Degree -visible TALLY indicator and identification board (immune to device switching interference), the innovative RGBlink vue camera design with patented technology adapts seamlessly to any environment.

Features
• HD image with 1/2.8" 8.42MP sensor
• 12X/20X/30X optical zoom lenses available
• Advanced autofocus for fast, accurate, and stable focusing
• Low-noise CMOS with 2D/3D noise reduction for high SNR and clarity
• HDMI/SDI/USB/LAN outputs, SDI supports 1080P60 at 100m
• H.265/H.264 video and AAC/G.711A audio compression
• AAC audio input (16k-48kHz) and G.711A (8kHz) support
• ONVIF/RTSP/RTMP protocols with RTMP push and VISCA control
• AI tracking with face/human recognition for classrooms and meetings
• RS485/RS232 control (RS232 supports cascading)
• VISCA/PELCO-D/P protocols with auto-detection
• Silent gimbal with precision stepper motor for smooth, quiet operation
• Low-power sleep mode under 400mW
• 255 presets (10 accessible via remote)
• Infrared remote controller (anti-interference, signal passthrough)
• Ideal for education, conferences, medical, court, and command systems

- 12.3" Portable Monitor -

Full Function Type-c Interface
Designed for display power supply, audio, video signal transmission, support forward and negative interpolation.

Mini HD Interface
Responsible for audio and video signal transmission of display.

3.5mm Headphone Interface
Headphone, Audio extension interface.

Features
• 12.3" portable monitor with screen resolution 1920 x1280
• 12.3"portable monitor has OTG USB conversion to connect keyboard or mouse or U drive
• Full function USB-C interface for power supply, audio and video signal
• mini HDMI interface to fit most HD devices
• Touch screen support 10-Point Multi-Touch, Native macOS Touch Support OSD Touch Menu, Touch Scaling Follow and Touch Wake
• Fit in mini-edge SDI/mini-mx SDI /mini-max from RGBlink
• High compatibility with most phones and computers in the market
