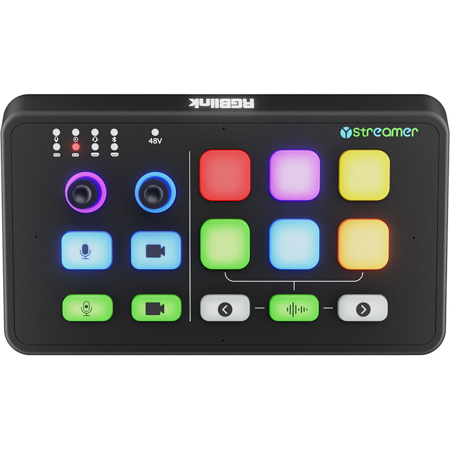

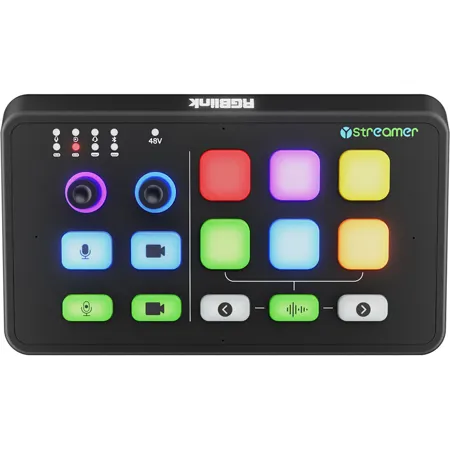

RGBlink Ystreamer Dual-Channel 4K HDMI Livestreaming AV Capture Card with Mixer
See all RGBlink items
New Arrival

RGBlink Ystreamer Dual-Channel 4K HDMI Livestreaming AV Capture Card with Mixer

SKU: RL2300013010 MFR: 230-0013-01-0
Be the first to review this item
$399.00
OR
$67/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Achieve stunning 4K HDMI livestreaming with dual-channel capture for professional productions.
  • Enjoy seamless video transitions and reliable signal processing for flawless live events.
  • Connect various devices effortlessly with versatile input options, including HDMI and XLR audio.
  • Experience high-quality output and crystal-clear audio for engaging content creation.
  • Benefit from an intuitive control interface, making live production accessible for everyone.
  • Rely on the durable build of this multimedia mixer for consistent performance in any setting.
See More Product Details
New Item?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$44.99
2-Year Adorama Protect$79.99
3-Year Adorama Protect$109.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

RGBlink Ystreamer Specifications

  • Video Inputs

    HDMI : 2x HDMI-A

  • Audio Inputs

    Audio Analog Input:
    Line In: 1x 6.35mm TRS
    Mic: 1x XLR Combo Jack (Mic/Instrument, 48V)
    Headset (I/O): 1x 3.5mm TRRS

    Audio Digital Input:
    Embedded audio: 2x HDMI-A (sharing ports with video)
    Built-in mic: 4x digital MIC
    Bluetooth 5.2: 1 xbuilt-in Bluetooth receiver
    UAC (I/O): 2x USB-C (stereo, 48KHz 24-bit)

  • Video Outputs

    HDMI loop: 2x HDMI-A
    Dual UVC stream: 1x USB-C

  • Audio Outputs

    Audio Analog Output:
    Stereo unbalanced Line out: 1x 6.35mm TRS
    Headset (I/O): 1x 3.5mm TRRS
    Built-in speaker: 2x built-in speaker (4 Ohm3W)

    Audio Digital Output:
    UAC (I/O): 2x USB-C

  • Video Standards

    Video Performance:
    Resolution (Input & Loop): up to 4096 x2160@60Hz
    Resolution (Capture dual UVC): MJPEG 4096 x2160@60Hz | YUY2 4096 x2160@30Hz
    Subsampling: RGB / YCbCr 444 | YCbCr 422 | YCbCr 420

    Audio Performance (Analog):
    Input Dynamic range: 115dBu
    Microphone Input Impedance: 1.2K Ohm
    Instrument Input Impedance: 1M Ohm

  • Video Standards (Contd.)

    Preamplifier Gain Range: 0-60 dB
    Phantom Power: 48V
    Headphone Output Power: 125mW

    Audio Performance (Digital):
    Sound track: stereo
    Sampling rate: 48KHz
    Bit depth: 16bit, 24bit

    Supported Standard:
    HDMI: 2.0
    HDCP: 2.3

  • Power

    Power Requirements: PD12V 2A

  • Working Temperature

    32 Degree F-140 Degree F (0 Degree C-60 Degree C)

  • Working Humidity

    10%-85%

  • Country Of Origin

    China

  • Dimensions

    7.38 x 4.29 x 2.55" (187.5 x 109 x 64.8mm)

  • Weight

    15.87 oz (450g)

  • UPC Code

    6976965942270

About RGBlink Ystreamer

Ystreamer is the industry's first compact desktop device that captures two independent channels of 4K60 HDMI 2.0 video and audio simultaneously. It streams both channels directly to live production software (e.g., OBS, vMix) or conferencing platforms (e.g., Teams Meeting) using a single UVC cable connection. Unlike traditional capture cards and consoles-which typically require two separate external devices, twice the cabling, and twice the number of host I/O ports-Ystreamer leverages next-generation encoding and decoding technology to deliver a streamlined, dual-channel capture solution that creators and professionals have long needed.

RGBlink Ystreamer Features

  • Dual-Channel HDMI 2.0 Video Capture Card & 9-Channel Audio Mixer
  • Dual HDMI 2.0 Inputs with Independent Loop-through Outputs
  • Captures dual 4K UVC streams on a single USB-C cable to the software such as OBS and vMIX
  • 9-Channel Professional Audio Mixer
  • Supports 48V Phantom Power for condenser microphones, dynamic microphones, and instruments (e.g., electric guitar, bass)
  • User-friendly Control Keyboard featuring dedicated keys for volume adjustment, mute, recording, privacy (black screen), and page navigation, plus 6 customizable user keys

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Achieve stunning 4K HDMI livestreaming with dual-channel capture for professional productions.
  • Enjoy seamless video transitions and reliable signal processing for flawless live events.
  • Connect various devices effortlessly with versatile input options, including HDMI and XLR audio.
  • Experience high-quality output and crystal-clear audio for engaging content creation.
  • Benefit from an intuitive control interface, making live production accessible for everyone.
  • Rely on the durable build of this multimedia mixer for consistent performance in any setting.

What's in the box:

  • RGBlink Ystreamer Dual-Channel 4K HDMI Livestreaming AV Capture Card with Mixer
  • 35W PD Power Adapter
  • 5A USB-C Cable
  • RGBlink 1 Year Limited Warranty
