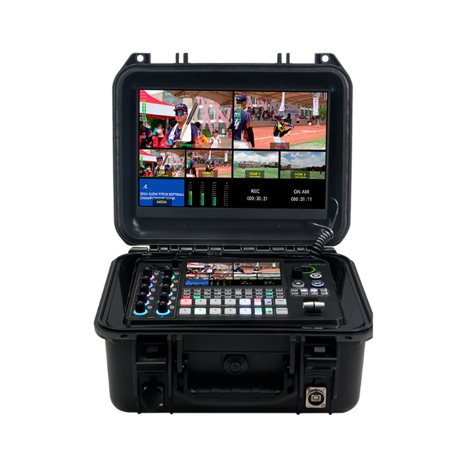

RGBlink mini-edge All-In-One Streaming Video Switcher Standard Kit with 13.3" Display and Case, Black

SKU: RGBLNK236020 MFR: RGBLINK-230-0006-02-0
Earn VIP Reward Points

Key Features

  • Achieve high video quality with 4K HDMI inputs on this all-in-one streaming video switcher.
  • Enjoy reliable connectivity for live production with multiple USB-C and RJ45 ports.
  • Experience easy setup with the user-friendly interface, perfect for real-time streaming.
  • Benefit from versatile compatibility; supports HDMI 2.0, USB 3.0, and H.265 standards.
  • Create professional broadcasts with the built-in 13.3" full HD display for monitoring.
  • Streamline your workflow with the included flight case suite for ultimate portability.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RGBlink mini-edge-st Specifications

Connectors

Connectors

Jump to...
  • Input

    HDMI: 4K 4x HDMI-A
    UVC (webcam): 1x USB-C

  • Output

    HDMI 2K: 1x HDMI-A
    UVC: 1x USB-C
    USB (record): 1x USB-C
    LAN (stream): 1x RJ45

  • Audio In

    MIC: 1x CANNON Jack (XLR)
    LINE: 1x 6.35mm TRS Jack
    Bluetooth: 1x Bluetooth Module
    UAC: 1x USB-C
    HDMI: 4x HDMI-A

  • Audio Out

    Audio:
    1x 6.35mm TRS Jack
    1x 3.5mm mini-Jack

    HDMI: 1x HDMI-A
    SDI: 1x BNC
    UVC: 1x USB-C
    LAN: 1x RJ45
    USB (record): 1x USB-C

Performance

Jump to...
  • Video

    Video Formats: HDMI 2.0 /HDCP 2.2
    Grayscale Processing: 10bit
    Video Sampling: 4:4:4 YUV
    Video Latency: <4 frames

  • Audio

    Line In Delay: up to 8 frames

    Audio Format
    HDMI: Linear PCM, 24bits/48kHz, 2ch
    USB: Linear PCM, 16bits/48kHz, 2ch

  • Record/Storage

    Record Formats: MP4
    Disk Formats: FAT32 (<=32 GB) /exFAT (64GB-2T)

  • Supported Standards

    HDMI: 2.0
    USB: 3.0
    H.265: ITU-T H.265/ ISO/IEC 23008-2

13.3" Display

Jump to...
  • Screen Size

    13.3" (33.78cm)

  • Panel Type

    IPS

  • Display Color

    16.7M, 72% NTSC/: 16.7M, 100% sRGB

  • Resolution

    1920x1080 pixels (Full HD)

  • Aspect Ratio

    1000:1

  • Gamut

    72%

  • Brightness

    350 cd/sq. m

  • Refresh Rate

    60Hz

  • View Angle

    L/R: 85 Degree /85 Degree
    U/D: 85 Degree /85 Degree

  • Input Voltage

    PD 12V/5A

  • Maximum Power

    60W

Physical

Jump to...
  • Color

    Black

  • Material

    Polypropylene

  • Dimensions (L x W x H)

    18.11 x 14.17 x 7.87" (460 x 360 x 200mm)

  • UPC Code

    6976965940634

About RGBlink mini-edge-st

Explore the RGBlink mini-edge All-In-One Streaming Video Switcher Standard Kit, a cutting-edge solution designed for seamless live production and video management. This portable kit, encased in a robust high-strength PP material, is engineered to withstand the rigors of any production environment, from music festivals and weddings to sports competitions and outdoor events. The kit features a 13.3" IPS display, offering high-definition monitoring with 350 nits brightness, ensuring clear visibility even in direct sunlight.

The RGBlink mini-edge is a powerhouse of integrated audio and video switching capabilities, PTZ camera control, multi-view monitoring, and recording, all housed in a shock-resistant carry case. Its modular design supports a wide range of input and output configurations, including HDMI, UVC, SDI, Ethernet, and Fiber, allowing for flexible signal transmission over distances from a few meters to over 1000 meters. This versatility makes it ideal for both compact studio settings and large arenas.

With cloud connectivity to TAO, the mini-edge facilitates seamless content sharing and collaboration, enabling professional teams to work remotely while on-site operators focus on production without the hassle of technical configurations. The system supports RTMP(S) streaming to TAO cloud, which can restream to over 30 content platforms, simplifying content distribution through a single connection.

The mini-edge's control system is comprehensive, allowing for the management of up to four cameras simultaneously using the standard VISCA protocol. Operators can adjust camera positions, scale, and viewing angles without needing an additional control panel. The built-in 5.5" LCD display and the 13.3" IPS highlight monitoring screen provide real-time supervision of all audio and video inputs.

Enhance your live production with 17 transition effects and multilayer preview capabilities, enabling seamless switching and preset recalls for a professional broadcast experience. The integrated LED sending card and optional professional aviation plug interface ensure high-quality performance and easy connectivity to LED displays.

Designed for durability, the mini-edge's PE case offers shockproof, compression-resistant protection, making it easy to transport and ready for use in any environment. The case includes an active cooling fan for optimal performance and is equipped with dustproof plugs for comprehensive protection against water and dust.

Whether you're producing TV programs, webcasting, or managing large-scale events, the RGBlink mini-edge All-In-One Streaming Video Switcher Standard Kit delivers high-quality output, real-time editing capabilities, and an enhanced audience experience. Its powerful practicality extends across various fields, including medical, food, housing, education, and healthcare, making it the preferred choice for live broadcast and content creation. Experience the future of immersive event production with the RGBlink mini-edge, where on-site engagement and online interaction converge seamlessly.

RGBlink mini-edge-st Features

  • Professional aviation connector to ensure high-quality performance
  • Flexible standard connectors to meet personalized application
  • Built-in 13.3" HD IPS monitor
  • High strength PP flightcase features long-lasting durability
  • Hydraulic rod support to enhance the stability
  • Powerful air-cooling system designed for outdoor use
  • Built-in 5.5" LCD screen for mini-edge
  • Quad HDMI 2.0 inputs (HDCP compliance), resolutions up to 4K@60
  • One USB (UVC) input supports camera source from RGBlink vue PTZ and webCAM
  • Eight audio inputs with Four HDMI 2.0 embedded audio inputs and Four external audio inputs (one MIC, one LINE, one Bluetooth and one Type-C digital audio)
  • Eight audio inputs allow for output of mixed audio across one or all available channels
  • Dual HDMI 1.3 outputs for monitoring of multi-window PVW, PGMor AUX
  • Dual audio out jacks for listening
  • One-key recording. Recording capacity of hard drive is up to 2TB
  • Support simultaneous streaming to 4 live streaming platforms via RTMP(S)
  • Support multi-layer overlay, layer scaling and cropping
  • 17 switching effect modes
  • 5-direction joystick for controlling up to 4 PTZ cameras
  • Support saving up to 10 scene presets and thumbnails for real-time full preview
  • Web control and monitoring, compatible with mobile devices and computers, compatible with multiple operating systems
  • Support Chroma Key
  • 5G/4G Smartphone Tethering for iOS and Android system
  • Air cooling design to ensure 24/7 stable operation

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve high video quality with 4K HDMI inputs on this all-in-one streaming video switcher.
  • Enjoy reliable connectivity for live production with multiple USB-C and RJ45 ports.
  • Experience easy setup with the user-friendly interface, perfect for real-time streaming.
  • Benefit from versatile compatibility; supports HDMI 2.0, USB 3.0, and H.265 standards.
  • Create professional broadcasts with the built-in 13.3" full HD display for monitoring.
  • Streamline your workflow with the included flight case suite for ultimate portability.

What's in the box:

  • RGBlink mini-edge All-In-One Streaming Video Switcher
  • 13.3" Display
  • Flight Case Suite
  • RGBlink 1 Year Limited Warranty
