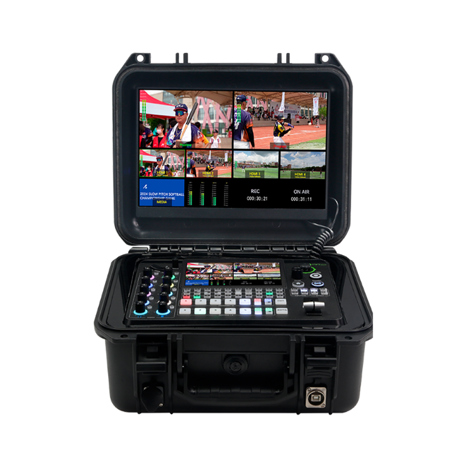

RGBlink mini-edge All-In-One Streaming Video Switcher Kit 1 with 13.3" Display and Case, Black

SKU: RGBLNK236040 MFR: RGBLINK-230-0006-04-0
Earn VIP Reward Points

Key Features

  • Create stunning live streams with the RGBlink video switcher's high video quality output.
  • Enjoy versatile compatibility with HDMI, SDI, and USB-C inputs for seamless integration.
  • The RGBlink mini-edge offers real-time performance, ensuring smooth, lag-free productions.
  • Easily manage your audio with XLR, TRS, and Bluetooth inputs on this multimedia mixer.
  • This all-in-one streaming video switcher is designed for ease of use, even on the go!
  • Record directly to USB with this affordable price video switcher, perfect for content creation.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RGBlink mini-edge-1s Specifications

Connectors

Connectors

Jump to...
  • Input

    HDMI: 4K 3x HDMI-A
    SDI: 1x BNC
    UVC (webcam): 1x USB-C

  • Output

    HDMI 2K: 1x HDMI-A
    SDI: 1x BNC
    UVC: 1x USB-C
    USB (record): 1x USB-C
    LAN (stream): 1x RJ45

  • Audio In

    MIC: 1x CANNON Jack (XLR)
    LINE: 1x 6.35mm TRS Jack
    Bluetooth: 1x Bluetooth Module
    UAC: 1x USB-C
    HDMI: 3x HDMI-A
    SDI: 1x BNC

  • Audio Out

    Audio:
    1x 6.35mm TRS Jack
    1x 3.5mm mini-Jack

    HDMI: 1x HDMI-A
    SDI: 1x BNC
    UVC: 1x USB-C
    LAN: 1x RJ45
    USB (record): 1x USB-C

Performance

Jump to...
  • Video

    Video Formats: HDMI 2.0 /HDCP 2.2
    Grayscale Processing: 10bit
    Video Sampling: 4:4:4 YUV
    Video Latency: <4 frames

  • Audio

    Line In Delay: up to 8 frames

    Audio Format
    HDMI: Linear PCM, 24bits/48kHz, 2ch
    USB: Linear PCM, 16bits/48kHz, 2ch

  • Record/Storage

    Record Formats: MP4
    Disk Formats: FAT32(<=32 GB) /exFAT(64GB-2T)

  • Supported Standards

    HDMI: 2.0
    USB: 3.0
    H.265: ITU-T H.265/ ISO/IEC 23008-2

13.3" Display

Jump to...
  • Screen Size

    13.3" (33.78cm)

  • Panel Type

    IPS

  • Display Color

    16.7M, 72%NTSC/:16.7M, 100%sRGB

  • Resolution

    1920x1080 pixels (Full HD)

  • Aspect Ratio

    1000:1

  • Gamut

    72%

  • Brightness

    350 cd/sq. m

  • Refresh Rate

    60Hz

  • View Angle

    L/R: 85 Degree /85 Degree
    U/D: 85 Degree /85 Degree

  • Input Voltage

    PD 12V/5A

  • Maximum Power

    60W

Physical

Jump to...
  • Color

    Black

  • Material

    Polypropylene

  • Dimensions (L x W x H)

    18.11 x 14.17 x 7.87" (460 x 360 x 200mm)

  • UPC Code

    6976965940641

About RGBlink mini-edge-1s

From the experts at RGBlink, the mini-edge All-In-One Streaming Video Switcher Kit 1 with a 13.3" Display and Case is a testament to 15 years of innovation in video production and display management. This portable powerhouse is designed for robust live production, making it an ideal choice for a wide range of events, from music festivals and weddings to sports competitions and conferences.

Housed in a high-strength PP material case, this kit is built to withstand the rigors of field production. The integrated 13.3" IPS display provides high-definition monitoring, ensuring clear visuals even in bright sunlight. The switcher offers seamless audio and video integration, PTZ camera control, and multi-view monitoring, all within a shock-resistant and easy-to-carry case.

The mini-edge switcher is engineered for flexibility, supporting a variety of input and output configurations including HDMI, UVC, SDI, Ethernet, and Fiber. This adaptability allows for signal transmission over distances ranging from a few meters to over 1000 meters, making it suitable for both compact studio setups and large arena productions.

With its modular design and multi-camera system, the mini-edge supports high-definition and ultra-high-definition production capabilities. It features rapid deployment and a customized workflow, enabling efficient live production. The cloud connection to TAO facilitates content sharing and remote collaboration, allowing on-site operators to focus on the operation rather than technical configurations.

The mini-edge excels in streaming workflows, offering RTMP(S) streaming to the TAO cloud, which can restream to over 30 content platforms. This all-in-one machine supports a variety of external devices, making live broadcasting more professional and versatile.

Control is intuitive, with integrated features such as canvas picture management, signal source selection, and PTZ camera preset positions. The unit can control up to four cameras simultaneously using the standard VISCA protocol, allowing for precise adjustments and angle control.

The built-in 13.3" IPS display ensures comprehensive pre-supervision of all audio and video inputs. The switcher supports 17 transition effects and multilayer previews, enabling seamless transitions and enhancing the production quality.

The robust PE case provides high-strength protection, is shockproof, compression-resistant, and durable, ensuring the equipment is safe during transport. The integrated design includes an active cooling fan for optimal performance and a dust-proof plug for all-around protection.

The mini-edge is equipped with a professional aviation plug interface for high-quality performance assurance and flexible format conversion. Its portable design makes it perfect for field production, offering significant advantages in radio, television, and video production.

Whether for live broadcast, content creation, or remote collaboration, the mini-edge All-In-One Streaming Video Switcher Kit 1 delivers high-quality output and real-time editing capabilities. It is a preferred solution for TV programs, webcasting, and large-scale events across various industries, including medical, education, and entertainment. Experience immersive event production with the mini-edge, where on-site engagement and online interaction converge seamlessly.

RGBlink mini-edge-1s Features

  • Professional aviation connector to ensure high-quality performance
  • Flexible standard connectors to meet personalized application
  • Built-in 13.3" HD IPS monitor
  • High strength PP flightcase features long-lasting durability
  • Hydraulic rod support to enhance the stability
  • Powerful air-cooling system designed for outdoor use
  • Built-in 5.5" LCD screen for mini-edge
  • Quad HDMI 2.0 inputs (HDCP compliance), resolutions up to 4K@60
  • One USB (UVC) input supports camera source from RGBlink vue PTZ and webCAM
  • Eight audio inputs with Four HDMI 2.0 embedded audio inputs and Four external audio inputs (one MIC, one LINE, one Bluetooth and one Type-C digital audio)
  • Eight audio inputs allow for output of mixed audio across one or all available channels
  • Dual HDMI 1.3 outputs for monitoring of multi-window PVW, PGMor AUX
  • Dual audio out jacks for listening
  • One-key recording. Recording capacity of hard drive is up to 2TB
  • Support simultaneous streaming to 4 live streaming platforms via RTMP(S)
  • Support multi-layer overlay, layer scaling and cropping
  • 17 switching effect modes
  • 5-direction joystick for controlling up to 4 PTZ cameras
  • Support saving up to 10 scene presets and thumbnails for real-time full preview
  • Web control and monitoring, compatible with mobile devices and computers, compatible with multiple operating systems
  • Support Chroma Key
  • 5G/4G Smartphone Tethering for iOS and Android system
  • Air cooling design to ensure 24/7 stable operation

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Create stunning live streams with the RGBlink video switcher's high video quality output.
  • Enjoy versatile compatibility with HDMI, SDI, and USB-C inputs for seamless integration.
  • The RGBlink mini-edge offers real-time performance, ensuring smooth, lag-free productions.
  • Easily manage your audio with XLR, TRS, and Bluetooth inputs on this multimedia mixer.
  • This all-in-one streaming video switcher is designed for ease of use, even on the go!
  • Record directly to USB with this affordable price video switcher, perfect for content creation.

What's in the box:

  • RGBlink mini-edge All-In-One Streaming Video Switcher
  • 13.3" Display
  • Flight Case Suite
  • RGBlink 1 Year Limited Warranty
