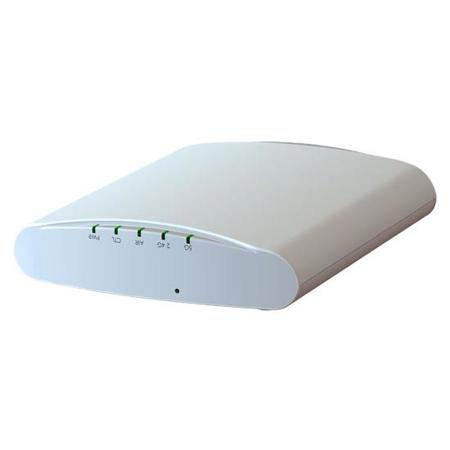

Ruckus ZoneFlex R310 Smart Dual Band Indoor 802.11ac 2x2:2 Wi-Fi Access Point, BeamFlex, PoE

The Ruckus ZoneFlex R310 delivers high-performance and reliable 802.11ac wireless networking at the industry's most affordable price point. Unlike any other 802.11ac wireless solution in its class, the ZoneFlex R310 combines patented adaptive antenna technology and automatic interference mitigation to deliver consistent, predictable performance at extended ranges with up to 4dB of statistical BeamFlex gain and up to 10dB of interference mitigation.

Additional performance enhancements to signal gain can be attributed to the chip-based transmit beamforming capability adding 3 dB when associated to a compatible client.

Each ZoneFlex R310 integrates Ruckus-patented BeamFlex, a software-controlled, high gain antenna array that continually forms and directs each 802.11ac packet over the best performing signal path. The ZoneFlex R310 automatically selects channels for highest throughput potential using Ruckus ChannelFly dynamic channel management, adapting to environmental changes. Once deployed, enterprises never have to worry about constant site surveys as the environment changes.

Patented BeamFlex Technology Extends Signal Range, Improves Stability of Client Connections
All ZoneFlex R310 Smart Wi-Fi access points integrate a software-controlled smart antenna array that delivers up to an additional 4 dB of BeamFlex gain and 10 dB of interference mitigation. This allows a 2 to 4x improvement in signal range and a reduction in packet loss from the ability to automatically mitigate interference and avoid obstacles.

Advanced WLAN Applications with Smart/OS
When used with Ruckus controllers, each ZoneFlex R310 supports a wide range of value-added applications such as guest access networking, Dynamic PSK, hotspot authentication, wireless intrusion detection and many more. With Smart/OS, WLANs can be created and mapped to the same or different APs or VLANs. In a centrally managed configuration, the ZoneFlex R310 works with a wide range of authentication servers including Microsoft's Active Directory, LDAP and RADIUS.

Flexible Deployment Options
ZoneFlex R310 APs can be deployed as a standalone AP or as part of a centrally managed wireless LAN using Ruckus's ZoneDirector or SmartZone Smart WLAN controllers. ZoneFlex R310 can be deployed across any L2/L3 network and can bridge traffic onto the local network, tunnel to a central location using L2TP or PPPoE or route between the WAN and NAT'ed private subnets. When used with the controllers, each ZoneFlex R310 is automatically configured through the network making deployment quick and easy.

Complete Local and Remote Management
Each ZoneFlex R310 can be managed as a standalone AP through a Web-based GUI, using SNMP or through the Ruckus FlexMaster Wi-Fi remote management system. Local management can also be performed using the ZoneDirector or SmartZone Smart WLAN controllers.

FlexMaster is a LINUX-based software platform that uses industry-standard protocols to perform bulk configuration, fault detection, monitoring and a wide range of troubleshooting capabilities over a wide area connection. The controllers enable local management and control of APs, adding value-added services such as transmit power control and guest access networking.

High Performance and Cost Effective
• Two-stream MIMO 2x2:2
• Concurrent dual-band (5GHz/2.4GHz) support
• 867 Mbps (5 GHz) and 300 Mbps (2.4 GHz) of user throughput
• Up to 4dB of statistical BeamFlex gain and up to 10dB of interference mitigation
• Capable of supporting up to 100 clients per access point

Adaptive antennas and Automatic interference mitigation
• Up to 2x to 4x increase in Wi-Fi signal coverage
• Automatic interference mitigation to deliver consistent, predictable performance at extended ranges

Small Form Factor for easy installation
• 138mm x 135mm x 30mm
• Flexible mounting options include: secure mounting bracket, ceiling T-Bar or flat surface

Concurrent support for HD IPTV, VoIP and data
• Support for isochronous, multicast IP video streaming
• Four queues per client station

Differentiated services with multiple SSIDs
• Support for up to 8 BSSIDs per radio (16 BSSIDs per access point) with unique QoS and security policies
• WPA-PSK (AES), 802.1X support
• Zero-IT and Dynamic PSK
• Captive portal and guest accounts
• RADIUS and Active Directory support

Benefits

Industry's lowest cost enterprise class 802.11ac solution
Unprecedented performance with extended range at the industry's most affordable price point.

Extended range requires fewer APs
Adaptive antenna technology delivers a 2x to 4x increase in Wi-Fi signal coverage minimizing the number of APs required to service any area.

Sleek, low profile enclosure for ease-of-deployment
Aesthetically-pleasing design fits almost anywhere. Powerful 802.11ac technology that literally fits in the palm of your hand for easy deployment.

Channel selection optimizes throughput
ChannelFly dynamically chooses the best channel, giving users the highest possible throughput even in highly congested environments.

Intuitive configuration and management
The industry's simplest configuration and management through a Web-based wizard and automated deployment capabilities.

Hassle free migration to higher speed Wi-Fi
Support for standard 802.3af power over Ethernet allows enterprises to use existing PoE switches without costly upgrades.
