The Industry's First Outdoor 802.11ac AP with BeamFlex+ designed for High Density Venues
The ZoneFlex T301 Series are the first dual-band 802.11ac outdoor access points (AP) designed explicitly for high density user environments such as stadiums, arenas, train stations, convention centers and major metro areas.
The T301 Series are the only 802.11ac access points on the market to integrate patented BeamFlex technology. The T301 Series has internal high gain directional antennas to provide directed coverage solutions eliminating the need for bulky panel antennas and confusing and expensive external RF cabling. The T301 Series enable focused Wi-Fi coverage to mitigate interference and implicitly improve signal-to-interference-plus-noise ratio (SINR) in the most challenging RF environments.
In addition, the T301 Series uniquely leverages a predictive model for channel selection (ChannelFly) that uses actual activity to learn what channels will yield the most capacity to provide the highest client speeds and reduced interference.
Designed for easy installation within an ultra lightweight and low profile enclosure, the T301 Series is ideal for venue owners looking to quickly and economically deploy Wi-Fi in high-capacity environments such as stadiums, arenas, train stations, convention centers and major metro areas. Using directed coverage, the APs can be deployed in close proximity, mitigating co-channel interference. This is critical as high density deployments require a large number of APs within a fixed space.
The T301 Series can be centrally managed by the ZoneDirector Smart WLAN controller or the SmartCell Gateway 200 (SCG 200) as part of a unified indoor/outdoor wireless LAN, deployed as a standalone AP and managed individually or through the FlexMaster remote Wi-Fi management system.

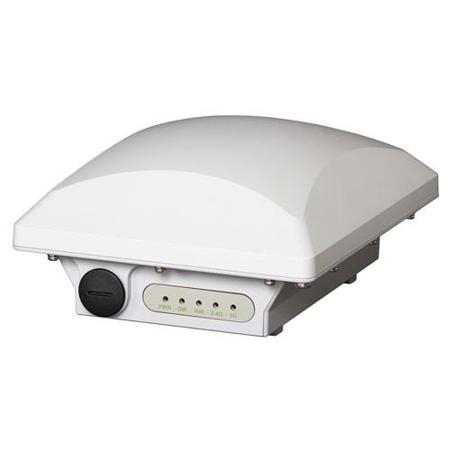

ZoneFlex T301s
Dual-band 802.11ac 2:2x2, 1200 Mbps
Internal sector adaptive antenna for 2.4GHz and 5GHz, 120 deg. sector coverage.
• Well suited to high-density deployments
• Best coverage and capacity at 120 deg. x 30 deg.
Internal Narrow Beam Antenna Technology
• 30 deg. narrow beam or 120 deg. sectorized antennas for very high-density deployments in arenas, stadiums, airports, etc.
• Up to 10 dB of implicit interference mitigation
• The antennas are integrated into the T301 Series APs for a minimal form factor which is essential in many deployments
Ideal for High-density locations
• Narrow beam antennas are ideal for high-density venues where RF energy must be very narrowly focused
Hardened enclosure for harsh outdoor environments
• IP-67 water and dustproof plastic enclosure with flexible wall or pole mounting options
High speed client performance with integrated adaptive antennas
Patented BeamFlex technology greatly improves connection reliability and increases WLAN capacity.
Light, slim design for easy deployment
Compact, lightweight design with integrated antennas provide flexible deployment options with quick and easy installation.
Highly Scalable
The ability to cost effectively scale high density networks.
Predictive channel selection for increased capacity and reduced interference
ChannelFly automatically selects the best performing channel based on statistical, real-time capacity analysis of all RF channels.
Standard 802.3af power
Easy installation using standard 802.3af PoE switches or PoE injectors.
Unmatched Wi-Fi capacity and reliability
BeamFlex delivers up to 4 dB of added signal gain and up to 10dB of interference mitigation.
Enhanced receive capabilities
Support for signal polarization diversity with maximal ratio combining (PD-MRC) ensures reliable connectivity for mobile devices.
