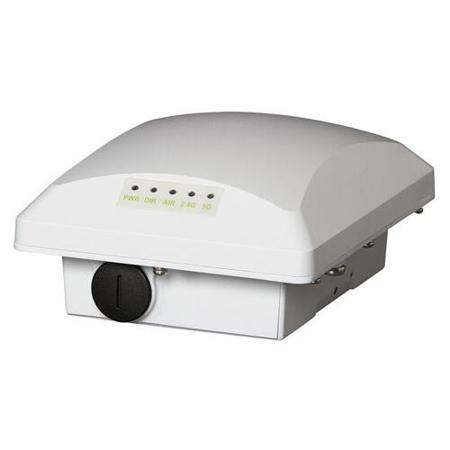

Ruckus ZoneFlex T300 Unleashed Entry-Level 802.11ac Outdoor Wi-Fi Access Point

SKU: RK9U1T3CUS01

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Ruckus ZoneFlex T300 Specifications

Performance and Capacity

Performance and Capacity

Jump to...
  • Physical Layer Modulation Data Rate

    2.4GHz 802.11b/g/n 300Mbps
    5GHz 802.11a/n/ac 867Mbps

  • Concurrent Stations

    Up to 512 clients per AP

  • Simultaneous VoIP Clients

    Up to 30

  • Standards

    5GHz IEEE 802.11ac
    2GHz IEEE 802.11g/n

  • Frequency Bands

    IEEE 802.11g/n 2.4-2.472GHz (ch1-13 CE, ch1-11 US)
    IEEE 802.11ac 5GHz
    U-NII-1 5.15-5.25GHz
    U-NII-2 5.25-5.35 (DFS)
    U-NII-2B 5.37-5.47
    U-NII-2C 5.47-5.725 (DFS)
    U-NII-3 5.725-5.825
    ISM 5.725 - 5.875
    U-NII-4 5.85-5.925

  • WLAN Radio Configuration

    Dual band concurrent 2 x 2:2 stream radios

  • Maximum TX Power

    26 dBm for 2.4GHz
    25 dBm for 5.0GHz

  • Channelization

    2.4GHz 802.11b/g/n 20/40 MHz
    5GHz 802.11a/n/ac 20/40/80 MHz

  • BSSID

    Up to 32 (27 configurable) on 2.4GHz
    Up to 16 (13 configurable) on 5GHz

  • Certifications

    U.S.

Certification

Jump to...
  • Transporation

    ISTA 2A:
    Random Vibration & Drop Test
    Compression & Loose Cargo Test
    ETSI EN 300 019-2-2 Specification T 2.2 Careful transportation

  • Safety

    Safety Listing - EU
    EN 60950-1:2006/A12:2011
    EN 60950-22:2006/AC:2008
    International
    CB Scheme Certificate
    CB Bulletin
    IEC 60950-1: 2005 Second Edition
    IEC 60950-22: 2005 First edition
    CISPR 22
    CISPR 24
    CAN/CSA C22.2 60950-1 Edition 2
    CAN/CSA C22.2 60950-22 Edition 1

  • Health and Human Safety to RF Exposure

    EN 62311:2008
    EN 50385:2002
    FCC OET-65
    ICNIRP:2010

  • Hazardous Materials

    RoHS Directive 2002/95/EC
    RoHS Directive 2011/65/EU
    WEEE

  • Immunity

    EN61000-4-2 Level 4 Contact / Level 3 Air ESD Immunity
    EN61000-4-5 Level 1 & 2 Immunity
    EN61000-4-3 Level 4 EMC Immunity
    GR1089 - 1kV 25A Surge (data ports)

  • Railway and Rolling Stock

    EN50121-1
    EN50121-4
    EN61373 (for trackside use)

  • Wi-Fi Alliance

    Wi-Fi CERTIFIED a, b, g, n, ac
    WPA - Enterprise, Personal
    WPA2 - Enterprise, Personal
    Optimization - WMM

General

Jump to...
  • Power

    802.3af PoE Input (Class 3 PD)

  • Ethernet Ports

    10/100/1000Base-T 802.3, 802.3 u, 802.3ab
    802.3at/af PoE PD Input
    Jumbo frame support (2290 byte max MTU)

  • RF Connectors

    N female qty 2 (optional 5GHz only)

  • Operating temperature range

    -20 to 55 deg. C (-4 to 131 deg. F)

  • Weather protection

    IP67 per IEC 60529

  • Power Draw

    PoE Input
    Idle: 6.5W
    Typical: 7.5W
    Peak: 11W

  • Mounting Options

    Wall Mount
    Pole Mount Diameter 1" to 2.5"

  • Dimensions (LxWxH)

    7 x 5.9 x 3.4" (17.78 x 14.99 x 8.64cm)

  • Weight

    2.1 lbs (0.95kg) with bracket
    2 lbs (0.91kg) without bracket

About Ruckus ZoneFlex T300

802.11AC Access Point with BeamFlex+ for Cost-Effective Deployments in High Density Outdoor Venues
Ruckus T300 Unleashed enables controller-less Wi-Fi architecture for small business environments with superior performance, lower costs and simplified management. Separate controllers and access point licenses are no longer needed, significantly reducing upfront costs. Set-up is also easy, thanks to a simplified web interface that helps businesses configure Wi-Fi in just 60 seconds.

These environments require support for users that demand high capacity and mobile device ready WLAN services. The T300 Unleashed is uniquely designed to serve these demanding environments with dual-polarized adaptive antennas that dynamically select the best antenna patterns on a per-packet basis to provide reliable client connections and to increase network capacity while implicitly mitigating interference and improving signal-to-interference-plus-noise ratio (SINR).

In addition, the T300 Unleashed Series uniquely leverages a predictive model for channel selection (ChannelFly) that uses actual activity to learn what channels will yield the most capacity to provide the highest client speeds and reduced interference.

Designed for easy installation within an ultra lightweight and low profile enclosure, the T300 Unleashed Series is ideal for venue owners and enterprises looking to quickly and economically deploy Wi-Fi in high-capacity environments. With the ZoneFlex T300 Unleashed Series, venue operators can now deliver an enhanced Wi-Fi experience, which directly translates into increased customer loyalty and ultimately increased revenue.

ZoneFlex T300

Dual-band 802.11ac 2:2x2, 1200 Mbps
Internal Omni directional antenna for 2.4GHz and 5GHz

• Well suited to high-density deployments
• Best for Omni coverage and high capacity

Integrated BeamFlex+ Smart Antenna Technology
• Omni directional for very high-density deployments in arenas, stadiums, airports, etc. or external antennas
• BeamFlex+ support for up to 4 dB of signal gain and 10 dB of interference mitigation in addition to the antenna gain
• Internal antenna for a minimal form factor, which is essential in many deployments
• Polarization Diversity with Maximal Ratio Combining (PD-MRC) ensures reliable connectivity for mobile devices

Hardened enclosure for harsh outdoor environments
• IP-67 water and dustproof plastic enclosure with flexible wall or pole mounting options.

Benefits

Unleash The Performance
In the Unleashed version, the ZoneFlex T300 series is capable of supporting controller-less deployments for up to 25 access points and 512 concurrent clients

High speed client performance with integrated adaptive antennas
Patented BeamFlex technology greatly improves connection reliability and increases WLAN capacity

Light, slim design for easy deployment
Compact, lightweight design with integrated antennas provide flexible deployment options with quick and easy installation

Highly Scalable
The ability to cost effectively scale high density networks

Predictive channel selection for increased capacity and reduced interference
ChannelFly automatically selects the best performing channel based on statistical, real-time capacity analysis of all RF channels

Standard 802.3af power
Easy installation using standard 802.3af PoE switches or PoE injectors

Unmatched Wi-Fi capacity and reliability
BeamFlex delivers up to 4 dB of added signal gain and up to 10dB of interference mitigation

Enhanced receive capabilities
Support for signal polarization diversity with maximal ratio combining (PD-MRC) ensures reliable connectivity for mobile devices

Ruckus Unleashed

Controller-less Access Point Solution for SMB
Smart devices are playing a critical role in influencing customer decisions and behaviors. While Wi-Fi devices have become an absolute requirement for customers and employees, small to midsize businesses (SMBs) are challenged to deploy a reliable wireless network within a limited budget and little to no IT staff.

Ruckus Unleashed is a controller-less wireless LAN solution that enables SMBs to deliver an optimal wireless experience at an affordable price point. Configured in 60 seconds and deployed in minutes, Ruckus Unleashed eliminates the complexity pitfall of a controller-based WLAN. With easy migration options to the Ruckus ZoneDirector, SmartZone or future Ruckus platforms, Ruckus Unleashed scales with your business. Now SMBs can deliver a Wi-Fi user experience with high RF performance and network resiliency.

With 802.11ac Ruckus Unleashed access points (AP), users can take advantage of higher speeds, better coverage and improved reliability. Unleashed APs include key Ruckus technologies, such as BeamFlex+ Adaptive Antenna Technology to maximize signal coverage, throughput and network capacity and ChannelFly, our predictive capacity management for RF channel selection. And Zero-IT enables easy device onboarding with several key guest features, such as guest WLAN access, captive portal, Guest Pass and Custom Logo, to provide key value add services to users.

With Unleashed, each AP in the network will actively serve clients. And this controller-less solution supports single location deployments, up to 25 APs and/or 512 clients.

Simple Deployment
The Unleashed WLAN network can be set up in a matter of minutes, eliminating the need for large IT staff. There are 3 simple steps to set up the Unleashed network:

• Simply power on the Unleashed access points
• Connect to the Unleashed AP via open SSID or DNS
• Easily configure one master access point using the Unleashed online wizard

When configuring the network, a standby AP will be chosen automatically. This ensures resiliency in the network. Additionally, all member APs will automatically discover and join the master.

Take advantage of a low-cost controller-less solution
• No expert IT staff required
• Save time with a fast deployment and easy network management
• No AP license, controller or cloud subscription including support and trouble shooting is required

Network Investment Protection
58% of SMBs are expected to grow within 6-12 months. With Ruckus Unleashed, SMBs can easily migrate to the ZoneDirector, SmartZone or future Ruckus platforms. There is flexibility to choose virtual or physical appliances to best meet business needs. Now is the time to deploy a network that grows with your business.

Who can take advantage of Ruckus Unleashed?
Ruckus Unleashed is ideal for SMBs who are interested in providing high RF performance Wi-Fi that is easy to deploy, at a low price. Furthermore, Unleashed is a scalable solution, which meets the growing needs of the SMB market.

A small deployment with up to 512 devices, such as a hotel, individual and independent retailers, warehousing and local services such as private insurance/title companies is ideal for Unleashed. In this segment, retailers have limited budget and little to no IT staff to manage the network. Ruckus Unleashed enables them to provide a reliable network in addition to value-add services, such as guest access, captive portal and Hotspot/WISPr.

Ruckus ZoneFlex T300 Features

  • Concurrent dual-band (5GHz/2.4GHz) support
  • 1200 Mbps of total WLAN RF capacity
  • BeamFlex+ adaptive antenna technology and advanced RF management
  • Up to 10dB interference mitigation
  • Optimized for high-density environments
  • Polarization diversity for optimal mobile device performance
  • IP-67 rated, -20 deg. C to +55 deg. C
  • Adjustable bracket included
  • Small, lightweight and sleek form factor
  • Standalone or centrally managed by ZoneDirector, SCG 200, or FlexMaster
  • Dynamic, per-user rate-limiting for hotspot WLANs
  • WPA-PSK (AES), 802.1X support for RADIUS and Active Directory
  • BYOD, Zero-IT and Dynamic PSK
  • Captive portal and guest accounts
  • Admission control/load balancing
  • Band balancing
  • Application recognition and control
  • Secure HotSpot
  • SPOT location services
  • Intelligent Band steering
  • Airtime fairness
  • SmartMesh
  • Smart QoSs

What's in the box:

  • Ruckus ZoneFlex T300 Unleashed Entry-Level 802.11ac Outdoor Wi-Fi Access Point
  • Mounting Bracket
  • Ruckus 1 Year Warranty
