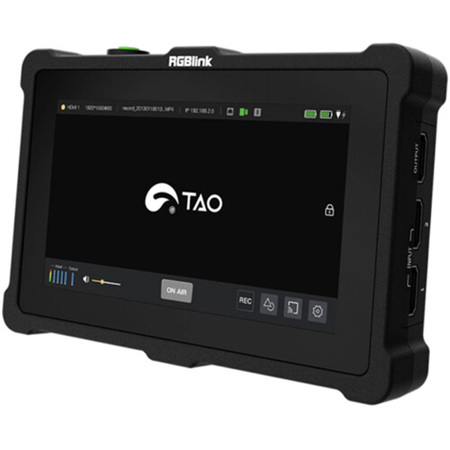

RGBlink TAO 1pro HDMI/USB/NDI Video Switcher with 5.5" Full HD Display
See all RGBlink items

RGBlink TAO 1pro HDMI/USB/NDI Video Switcher with 5.5" Full HD Display

SKU: RLTAO1PRO
Be the first to review this item

This item is no longer available.

Recommended Alternatives

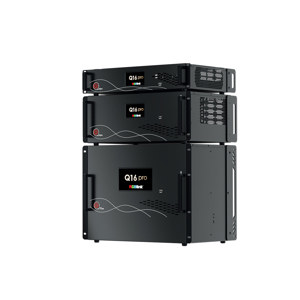

RGBlink Q16pro: Picture 1 regular
RGBlink Q16pro Gen2 8U 4K Mediahub and Multiple Canvas Video Wall Processor
$6,200.00

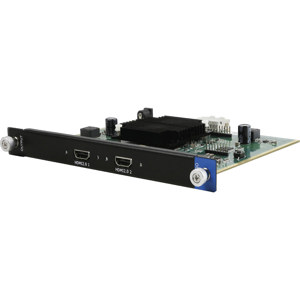

RGBlink Q Series Input Module: Picture 1 regular
RGBlink Q Series Dual HDMI 2.0 and Dual DP 1.2 Input Module for Q16pro Gen2 8U
$2,000.00
RGBlink Q Series Output Module: Picture 1 regular
RGBlink Q Series Dual HDMI 2.0 Output Module for Q16pro Gen2 8U
$2,400.00

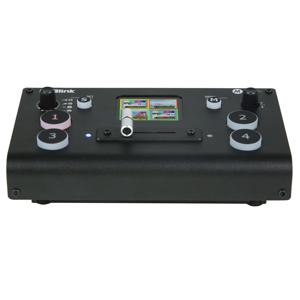

RGBlink Mini+: Picture 1 regular
RGBlink Mini+ 4-Ch HDMI Live Streaming Production Switcher with DSK, PTZ Control
$399.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

RGBlink TAO 1pro Specifications

Connectors

Connectors

Jump to...

  • Input

    HDMI: 1.3 2x HDMI-A
    USB 3.0: 2x USB TypeA

  • Output

    HDMI: 2.0 1x HDMI-A
    Record USB 2.0: 1x USB TypeA

  • Audio

    In: 1x 3.5mm Audio Jack
    Out: 1x 3.5mm Audio Jack

  • Communication/Stream

    LAN: 1x RJ45

  • Power

    1x USB-C

ScreenFeature

Jump to...

  • Screen Size

    5.5" (13.97cm) TFT

  • Resolution

    1080x1920 pixels

  • Dot Pitch (H x W)

    0.063 x 0.021mm

  • Aspect Ratio

    16:9

  • Brightness

    450cd/sq. m

  • Contrast Ratio

    1000:1

  • Backlight

    LED

  • View Angle

    80 Degree /80 Degree (L/R)80 Degree /80 Degree (U/D)

Power

Jump to...

  • Input Voltage

    9V/2A

  • Max Power

    18W

Environment

Jump to...

  • Temperature

    32 degree F - 131 degree F (0 degree C - 55 degree C)

  • Humidity

    5%-85%

Battery

Jump to...

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    -

  • Battery Quantity

    2

Physical

Jump to...

  • Dimensions

    6.33 x 4.17 x 1.41" (161 x 106 x 36mm)

  • Weight

    Without battery: 12.34 oz (350g)
    With battery: 31.11 oz (882g)

Other

Jump to...

  • UPC Code

    6970447703540

About RGBlink TAO 1pro

TAO 1pro is a Broadcasting streaming decoder with a 5.5 inch FHD preview display, but also a 4 channels seamless video switcher for 2 USB 3.0 and 2 HDMI 1.3 inputs, and supports streaming directly by ethernet output which is ready to connect to external cloud based router and streaming from Anywhere to Everywhere.

TAO 1pro is compatible with standard USB 2.0 and USB 3.0 cameras by UVC protocol, and brings itself as a much affordable and user friendly streaming tools for anybody, the talents who is willing to be Anchor Online.

TAO 1pro is also with touch panel for finger configuration, and with optional 2 chargable battery extending its capacity for outdoor application.

RGBlink TAO 1pro Features

  • 5.5" touchscreen operation
  • Network HD streaming
  • Seamless switcher
  • 2x UVC inputs, 2x HDMI 1.3 input and 1x HDMI 2.0 output
  • NDI 5.0 encoder
  • Recording via USB 2.0 port,mobile hard disk stores up to 2T
  • Multistream up to 4 Live Streaming platforms simultaneously

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 5.5" touchscreen operation
  • Network HD streaming
  • Seamless switcher
  • 2x UVC inputs,2x HDMI 1.3 input and 1x HDMI 2.0 output
  • NDI 5.0 encoder
  • Recording via USB 2.0 port,mobile hard disk stores up to 2T

What's in the box:

  • RGBlink TAO 1pro HDMI/USB/NDI Video Switcher
  • Power Adapter
  • USB 3.0 Type-A Cable
  • RGBlink 1 Year Limited Warranty
