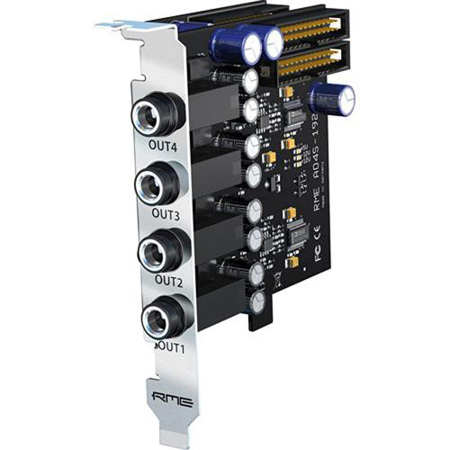

RME AO4S-192 AIO 4-Channel 24 Bit Analog Output Expansion Board
See all RME items

RME AO4S-192 AIO 4-Channel 24 Bit Analog Output Expansion Board

SKU: RMAO4SAIO
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

RME AO4S-192 AIO Specifications

  • No of Channel

    4

  • Resolution DA

    24-bit

  • Signal to Noise ratio

    114 dB RMS unweighted, 118 dBA at 44.1 kHz (unmuted)

  • THD

    <-104 dB, < 0.00063 %

  • THD + N

    <-102dB, <0.0008%

  • Crosstalk

    > 110 dB

  • Maximum output level

    +19dBu

  • Frequency Response

    1Hz to 22kHz, -0.5dB at 44.1kHz
    1Hz to 34kHz, -0.5dB at 96kHz
    1Hz to 50kHz, -0.5dB at 192kHz

  • Output

    4x 1/4" TRS jack, servo balanced

  • Output impedance

    50 Ohm

  • Output level

    Hi Gain, +4 dBu, -10 dBV

  • Output level at 0 dBFS

    At Hi Gain: +19 dBu
    At +4 dBu: +13 dBu
    At -10 dBV: +2 dBV

  • Analog Inputs

    No

  • Specialties

    Works with both the HDSPe AIO and the HDSP 9632

  • Power Requirements

    Supplied via ribbon cable

  • Dimensions

    3.5 x 3.7" / 88.90 x 93.98mm

About RME AO4S-192 AIO

This analog expansion board adds 4 analog outputs in professional quality to RME's HDSPe AIO. Level adjustment, balanced circuit design, 118 dBA SNR and highest suppression of PC-noise guarantee perfect sound quality.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • RME AO4S-192 AIO 4-Channel 24 Bit Analog Output Expansion Board
  • 26 Pins Flat Ribbon Cable
  • Mounting Hardware
  • Drill Template
  • Manual
  • RME 2 Year Warranty
