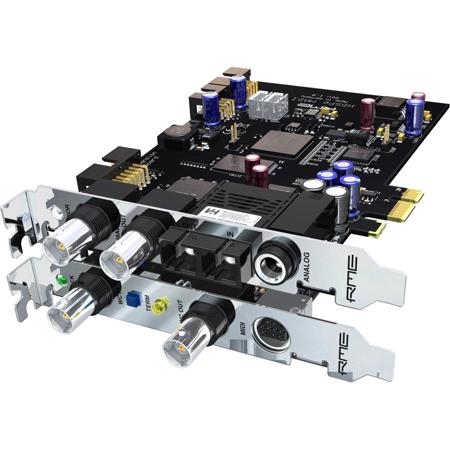

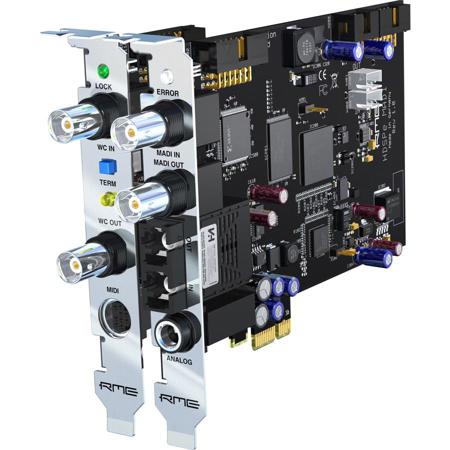

RME HDSPe MADI 128 Channel Sound Card

SKU: RMMADI MFR: HDSP MADI-E
Earn VIP Reward Points

Key Features

  • Experience pristine audio quality with this RME MADI sound card for professional recordings.
  • Achieve ultra-low latency performance, essential for time-critical audio applications and workflows.
  • Manage large-scale projects using the 128-channel capacity of this powerful audio interface.
  • Enjoy seamless software compatibility with TotalMix FX, offering flexible routing and monitoring.
  • Built with rock-solid RME build quality, ensuring reliability for studio and live environments.
  • Get precise synchronization using Word Clock I/O, maintaining perfect timing across your setup.
See More Product Details
Special Order?Estimated to Ship: 08/10/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RME HDSPe MADI Specifications

  • Connectivity

    PCI Express Interface
    64 Input channels / 64 Output channels
    1x MADI I/O (optical and coaxial)
    2x MIDI I/O
    Stereo Analog Out
    Word Clock I/O
    TotalMix

  • 1-Lane PCI Express Endpoint device

    Revision 1.1. (no PCI Express to PCI Bridge)

  • Line speed

    2.5Gbps

  • Packet-based full-duplex communication

    Up to 500 MB/s transfer rate

  • Sync sources

    MADI coaxial, MADI optical, word clock, internal

  • Varipitch

    Input signal or word clock

  • Sample rates

    44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, variable (Sync/word clock)

  • Sample rate range

    MADI: 32 kHz - 96 kHz
    word clock: 27 kHz - 200 kHz

  • Jitter

    < 1 ns, internal and all inputs

  • Jitter sensitivity

    PLL operates even at 100 ns Jitter without problems

  • Input

    MADI optical, MADI coaxial (BNC), 2 x MIDI, word clock (BNC)

  • Output

    MADI optical, MADI coaxial (BNC), 2x MIDI, word clock (BNC), stereo analog line/phones

  • Input word clock

    BNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), switchable termination

  • Output word clock

    BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof

  • MIDI input and output

    Via four 5-pin DIN jacks

  • DIGICheck

    Ultimate measurement, analysis and test tool

  • All settings changeable in real-time

    Yes

  • Master/slave clock control

    Yes (Automatic and intelligent)

  • UPC Code

    00874792002234

About RME HDSPe MADI

The HDSPe MADI is RME's both inexpensive and outstanding PCI Express card with MADI interface. HDSPe MADI is based on the award-winning HDSP MADI card and represents the new top model of this world-wide successful card line. The PCI Express card consequently uses all advantages of the MADI format, the professionals' multi-Channel audio interface, offering 64 channels of 24-bit audio at a sample rate of up to 48 kHz, 32 channels at up to 96 kHz and 16 channels at up to 192 kHz. Transmission is done via a single line, either coaxial with BNC plugs or by fiber cable. In both cases more than 100 m cable length can be achieved.

Compared with the HDSP MADI (Standard PCI version), the express card offers some new features: Support of higher sample rates than 96 kHz, more features in TotalMix (phase and internal loopback per channel, +6 dB gain for the hardware outputs) and the direct support of the Time Code Option. HDSPe MADI provides even lower latencies, making the card the perfect partner for live recording and live mixing applications. The analog monitor output is equipped with the low-latency converter technology of the ADI-8 QS, thus guaranteeing stunning SNR and THD values too. HDSPe MADI is fully compatible to all devices with MADI interface. In combination with the ADI-648 an 8 x ADAT optical PC interface is realized, unbeatable in price and performance. With the ADI-6432 a bidirectional AES/EBU frontend with 64 channels is available.

On a powerful PC/Mac three HDSPe MADI can be used in a combination, providing 192 inputs and 192 outputs on a single workstation simultaneously. HDSPe MADI offers full support for 56 and 64 channel modes and double and single wire technology (96k frame) for 96 kHz. Full 64 channel support can also be found in the hardware mixer TotalMix. All 64 inputs and 64 playback channels can be routed and mixed to 64 physical outputs completely freely, which translates to a 8192 channel mixer. With that, HDSPe MADI offers the most powerful router/mixer ever implemented on a PCI card and allows much more than a usage as pure computer I/O unit:
• MADI optical patchbay and router
• MADI coaxial/optical or vice versa converter and splitter
• MADI redistributor, patchbay and router

TotalMix can be completely remote controlled via MIDI. Furthermore, the hardware delivers RMS and peak level meters for full control over 192 audio channels at minimal CPU load. While most MADI-based devices require an additional word clock or AES line, the Hammerfall DSP MADI (like the ADI-648) uses SteadyClock to extract the reference clock at lowest jitter directly from the MADI signal, making long-distance connections even more convenient. As usual with RME, HDSPe MADI offers further sensible features. For instance an analog 24-bit/96 kHz line/headphone output with 116 dB dynamic range for direct control of all input and output signals.

The included expansion board carries word clock I/O (BNC) and MIDI I/O. The word clock input is galvanically isolated via transformer and operates on both single and double speed signals automatically. MIDI I/O offers two completely independent MIDI inputs and outputs via breakout cable (4 DIN sockets). A virtual MIDI port allows for a direct transmission of MIDI data over MADI. RME uses a configuration memory for the most important settings of the card. Instead of operating in a default mode on computer power-up until loading the driver, HDSPe MADI activates the last used sample rate, master/slave configuration and MADI format immediately when switched on. This eliminates disturbing noises and clock network problems during power-up or re-boot of the computer.

Included software:
• DIGICheck for Windows: Spectral Analyser, professional level meter for 2, 8 or 64 channels, Vector Audio Scope, various other audio analysis tools
• Drivers: Windows 2000/XP/Vista/64 (full ASIO multi-client operation of WDM, GSIF 2.0 and ASIO 2.0), Mac OS X Intel (Core Audio and Core MIDI)
Thanks to RME's flash update technology, future firmware improvements, adjustments and bug fixes can be installed easily at any time.

Settings Dialog
Just click on the hammer symbol in the systray of the taskbar and the settings dialog of the HDSPe MADI comes up. The clear structured, easy to understand window plus the unique informative status windows for input signal, clock mode and sample rate make your work with Hammerfall DSP to a real pleasure. When working with several digital sources it is not only necessary to know if these are properly locked, but also if they are totally synchronized. RME's exclusive SyncCheck checks all input signals and displays their actual state and thanks to their new Intelligent Clock Control (ICC) concept you have all clocks and states under control - with ease.

HDSPe MADI is equipped with SteadyClock, RME's unique sync and clock technology. With this, the device becomes a sync reference for the whole studio. SteadyClock refreshes clock signals, removes jitter and takes permanent care of optimal conversion quality, thus guarantees a sensational sound quality, completely independent from the reference clock's quality. SteadyClock allows the HDSPe MADI to control the sample rate freely on its own. The Settings dialog includes a direct choice of the video and audio world's most often used sample rates. Additionally, two faders can be used to set the sample rate freely and in real-time, within the range of +/- 4% and +/- 0.4%.

Product Documents

User Manual

Key Features

  • Experience pristine audio quality with this RME MADI sound card for professional recordings.
  • Achieve ultra-low latency performance, essential for time-critical audio applications and workflows.
  • Manage large-scale projects using the 128-channel capacity of this powerful audio interface.
  • Enjoy seamless software compatibility with TotalMix FX, offering flexible routing and monitoring.
  • Built with rock-solid RME build quality, ensuring reliability for studio and live environments.
  • Get precise synchronization using Word Clock I/O, maintaining perfect timing across your setup.

What's in the box:

  • RME HDSPe MADI 128 Channel Sound Card
  • HDSPe MADI Expansion Board
  • Quick Info Guide
  • Driver CD
  • MIDI Breakout Cable
  • Expansion Board Ribbon Cable (14-conductor)
  • RME 6 Month Limited Warranty
