RME MADIface XT USB 3.0 Audio Interface, MADI Optical, Coaxial, AES/EBU, 2/4 Analog I/O

SKU: RMMADIXT MFR: MADI-XT
$2,849.00
Earn VIP Reward Points

Key Features

  • Experience pristine audio quality with this RME digital audio interface for professional recordings.
  • Achieve ultra-low latency for seamless tracking and mixing in your studio sessions.
  • Connect all your gear with versatile input/output options, including MADI and AES/EBU.
  • Get precise control with the TotalMix mixer, offering 4096 channels for complex routing.
  • Enjoy stable clocking with SteadyClock, ensuring jitter-free performance for critical audio.
  • This RME interface offers standalone operation with MIDI remote control for flexible use.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RME MADIface XT Specifications

  • Interface

    External PCI Express, USB 3.0 and USB 2.0

  • Sample Rate

    32kHz up to 192kHz, variable (Sync/word clock)

  • Input Gain

    Analog: 60dB

  • Signal to Noise Ratio

    Input: 108 dB RMS unweighted, 111 dBA
    Output: 112 dB RMS unweighted, 115dBA

  • MIDI

    3 virtual MIDI over MADI I/Os, one external MIDI I/O

  • Mixer

    TotalMix: 4096-channel mixer with 46-bit internal resolution

  • Clock

    SteadyClock: Super-stable digital clock, highest jitter suppression

  • Stand-Alone

    Full stand-alone operation, including MIDI remote control

  • Connectivity

    196 Input / 198 Output channels
    2x MADI I/O optical
    1x MADI I/O coaxial
    2x Analog Mic/Line Preamp Input (XLR/TRS)
    4x Analog Output (Main XLR + Phones)
    1x AES/EBU I/O via breakout cable
    1x MIDI I/O via breakout cable
    3x virtual MIDI I/O via MADI I/O

  • UPC Code

    4260123363543

About RME MADIface XT

Under the umbrella of advanced audio interfaces, the RME MADIface XT stands out as the world's first USB3 audio interface. This compact, portable device offers unparalleled access to hundreds of audio channels, making it a powerful tool for both live performances and studio recordings.

Despite its small size, the MADIface XT is packed with features that enhance usability and connectivity. It is compatible with both USB 2.0 and USB 3.0, with the latter offering a higher channel count and lower latency. The unique PCI Express port allows for connections to External PCI Express cards and Thunderbolt adapters, ensuring the fastest interfacing technologies are at your disposal.

The MADIface XT is not just about digital audio. It also includes two digitally controlled high-end mic/line preamps, two balanced line outputs, and a stereo phones output. This comprehensive I/O set makes it ideal for a wide range of applications.

The device also supports full stand-alone operation with remote control over MADI and TotalMix FX for unlimited mixing, routing, and processing. For added convenience, the RME Advanced Remote Control can be connected.

The MADIface XT is designed to seamlessly transfer digital audio data directly into a computer from any device equipped with a MADI interface. It also supports analog sources through a stereo analog input, and two stereo analog outputs provide full monitoring connectivity.

Installation is straightforward, thanks to the latest Plug and Play technology. The device's unique features and well-thought-out configuration dialogs make it a top-tier choice among digital audio interfaces.

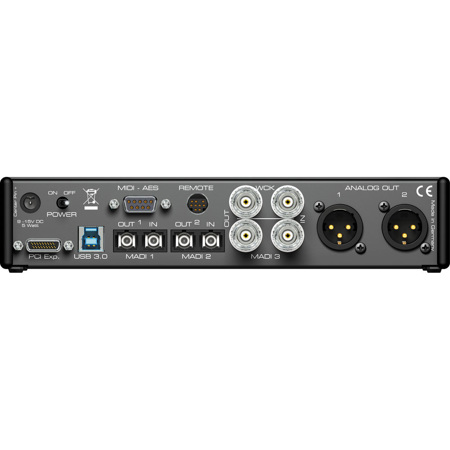

The front panel of the MADIface XT features 2 XLR/TRS line and microphone inputs, a stereo line/headphone output, two rotary encoders with push functionality, four menu keys, a graphical color display, and six status LEDs. The rear panel houses two balanced analog outputs, word clock I/O, MADI coaxial I/O, two MADI optical I/O, a USB 3 port, a PCI Express connector, MIDI/AES I/O, a power socket, and a power switch.

The MADIface XT also includes a powerful digital real-time mixer, the Hammerfall DSP mixer, based on RME's unique, sample-rate independent TotalMix technology. This allows for virtually unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs.

The MADIface XT is compatible with Windows Vista/7/8 (32 bit & 64 bit, multi-client operation of ASIO and WDM) and Mac OS X (Core Audio, Core MIDI). Please note that compatibility with USB 3.0 depends on the specific implementation and may vary.

In summary, the RME MADIface XT USB 3.0 Audio Interface is a compact, feature-rich device that offers unparalleled audio channel access, making it a must-have tool for audio professionals.

RME MADIface XT Features

  • World's first USB3 audio interface offering unparalleled access to hundreds of audio channels
  • Compact and portable design with high-end mic/line preamps and balanced line outputs
  • Compatible with both USB 2.0 and USB 3.0 for versatile connectivity
  • Includes a unique PCI Express port for connections to External PCI Express cards and Thunderbolt adapters
  • Supports full stand-alone operation with remote control over MADI and TotalMix FX for unlimited mixing and routing
  • Easy installation with Plug and Play technology, making it user-friendly for even inexperienced users

Product Documents

User Manual

Key Features

  • Experience pristine audio quality with this RME digital audio interface for professional recordings.
  • Achieve ultra-low latency for seamless tracking and mixing in your studio sessions.
  • Connect all your gear with versatile input/output options, including MADI and AES/EBU.
  • Get precise control with the TotalMix mixer, offering 4096 channels for complex routing.
  • Enjoy stable clocking with SteadyClock, ensuring jitter-free performance for critical audio.
  • This RME interface offers standalone operation with MIDI remote control for flexible use.

What's in the box:

  • RME MADIface XT USB 3.0 Audio Interface
  • Breakout Cable
  • Software CD-ROM
  • RME 2 Year Limited Warranty
