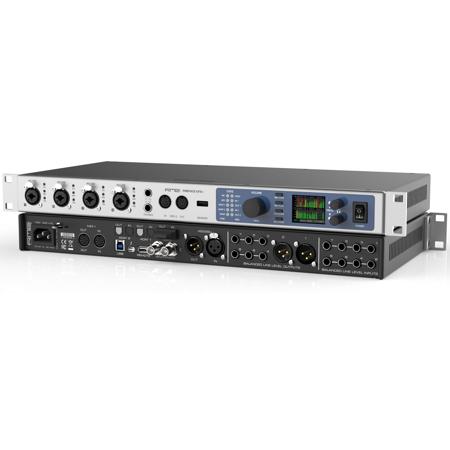

RME Fireface UFX+ USB 3.0 and Thunderbolt Audio Interface
See all RME items

RME Fireface UFX+ USB 3.0 and Thunderbolt Audio Interface

SKU: RMUFXP
Be the first to review this item

This item is no longer available.

Recommended Alternatives

RME 12Mic: Picture 1 regular
RME 12Mic 19" 1RU 12-CH Digitally Controlled Mic Preamp w/ Integrated AVB & MADI
$3,199.00$2,999.00
RME Fireface 802: Picture 1 regular
RME Fireface 802 USB and Firewire Audio Interface
$2,299.00
RME ADI-2 FS: Picture 1 regular
RME ADI-2 FS 9.5" 1RU High-Precision 192kHz 2-Channel AD/DA Converter
$1,149.00$949.00
RME ADI-642: Picture 1 regular
RME ADI-642 8-Channel 24-Bit/192kHz MADI/AES Format Converter
$3,199.00$2,749.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

RME Fireface UFX+ Specifications

  • Analog: AD, Line In 1-8, rear

    Resolution AD: 24 bit
    Signal to Noise ratio (SNR): 113dB RMS unweighted, 116dBA
    Frequency response at 44.1kHz, -0.1dB: 5 Hz - 20.8kHz
    Frequency response at 96kHz, -0.5dB: 3 Hz - 45.8kHz
    Frequency response at 192kHz, -1dB: 2 Hz - 92kHz
    THD: < -110dB, < 0.00032 %
    THD+N: < -104dB, < 0.00063 %
    Channel separation: > 110dB
    Maximum input level: +19dBu
    Input: 6.3 mm TRS jack, electronically balanced
    Input impedance: 8 kOhms unbalanced, 12kOhms balanced

  • Analog: AD, Line In 1-8, rear (Cont.)

    Input sensitivity switchable to Lo Gain, +4dBu
    Input level for 0dBFS at Lo Gain: +19dBu
    Input level for 0dBFS at +4dBu: +13dBu
    Variable gain: 0 to +12dB
    Minimum level for 0dBFS: +1dBu, -1.2dBV

  • Analog: Microphone In 9-12, front

    As AD, but:
    Input: XLR, electronically balanced
    Input impedance: 3.4kOhms
    Signal to Noise ratio (SNR): 115dB RMS unweighted, 118dBA
    Gain range: 75dB
    Maximum input level, Gain 0dB: +18dBu
    Maximum input level, Gain 75dB: -57dBu
    CLIP LED: 0dBFS SIG LED: -60dBFS

  • Analog: Instrument In 9-12, front

    As AD, but:
    Input: 6.3 mm TS jack, unbalanced
    Input impedance: 1MOhms
    Signal to Noise ratio (SNR): 114dB RMS unweighted, 118dBA
    Gain range: 42dB
    Maximum input level, Gain 8dB: +21dBu
    Maximum input level, Gain 50dB: -21dBu

  • Analog: DA, Line Out 3-8, rear

    Resolution: 24 bit
    Dynamic range (DR): 115dB RMS unweighted, 118dBA
    Frequency response at 44.1kHz, -0.5dB: 5 Hz - 20.8kHz
    Frequency response at 96kHz, -0.5dB: 5 Hz - 45kHz
    Frequency response at 192kHz, -1dB: 5 Hz - 89kHz
    THD: < -110dB, < 0.00032 %
    THD+N: < -104dB, < 0.00063 %
    Channel separation: > 110dB
    Maximum output level: +19dBu
    Output: 6.3 mm TRS jack, servo-balanced

  • Analog: DA, Line Out 3-8, rear (Conti.)

    Output impedance: 75Ohms unbalanced, 150Ohms balanced
    Output level switchable Hi Gain, +4dBu, -10dBV
    Output level at 0dBFS at Hi Gain: +19dBu
    Output level at 0dBFS at +4dBu: +13dBu
    Output level at 0dBFS at -10dBV: +2dBV

  • DA - Stereo Monitor Output XLR (1-2)

    As DA, but:
    Output: XLR, balanced
    Output level switchable 24dBu, Hi Gain, +4dBu, -10dBV
    Output level at 0dBFS at 24dBu: +24dBu
    Output level at 0dBFS at Hi Gain: +19dBu
    Output level at 0dBFS at +4dBu: +13dBu
    Output level at 0dBFS at -10dBV: +2dBV

  • DA - Stereo Monitor Output Phones (9-12)

    As DA, but:
    Output: 2x 6.3 mm TRS stereo jack, unbalanced
    Maximum output level at 0dBFS, High: +19dBu
    Maximum output level at 0dBFS, Low: +2dBV
    Output impedance: 2Ohms
    Max power per channel at 32Ohms load, 0.1% THD: 210 mW (2.6 Vrms, +10.5dBu)

  • MIDI

    2x MIDI I/O via 5-pin DIN jacks
    Galvanically isolated by optocoupled input
    Hi-speed mode: Jitter and response time typically below 1 ms
    Separate 128 byte FIFOs for input and output

    1x MIDI I/O via MADI
    Invisible transmission via User bit of channel 56 (up to 48kHz)
    Invisible transmission via User bit of channel 28 (up to 96kHz)

  • Digital

    Clocks: Internal, ADAT, AES, MADI, word clock
    Low Jitter Design: < 1 ns in PLL mode, all inputs
    Internal clock: 800 ps Jitter, Random Spread Spectrum
    Jitter suppression of external clocks: > 30dB (2.4kHz)
    Effective clock jitter influence on AD and DA conversion: near zero
    PLL ensures zero dropout, even at more than 100 ns jitter
    Digital Bitclock PLL for trouble-free varispeed ADAT operation
    Supported sample rates: 28kHz up to 200kHz

  • Digital Inputs: MADI

    Optical via FDDI duplex SC connector
    62.5/125 and 50/125 compatible
    Coaxial via BNC (Word Clock input), 75 Ohm
    High-sensitivity input stage (< 0.2 Vpp)
    Accepts 56 channel and 64 channel mode, plus 96k Frame
    Standard: up to 64 channels 24 bit 48kHz
    S/MUX: up to 32 channels 24 bit 96kHz
    S/MUX4: up to 16 channels 24 bit 192kHz
    Lock range: 25kHz - 54kHz
    Jitter when synced to input signal: < 1 ns

  • Digital Inputs: AES/EBU

    1x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
    High-sensitivity input stage (< 0.3 Vpp)
    SPDIF compatible (IEC 60958)
    Accepts Consumer and Professional format
    Lock range: 27kHz - 200kHz
    Jitter when synced to input signal: < 1 ns
    Jitter suppression: > 30dB (2.4kHz)

  • Digital Inputs: ADAT Optical

    2x TOSLINK, format according to Alesis specification
    Standard: 2 x 8 channels 24 bit, up to 48kHz
    Double Speed (S/MUX): 2 x 4 channels 24 bit 96kHz
    Quad Speed (S/MUX4): 2 x 2 channels 24 bit 192kHz
    Bitclock PLL ensures perfect synchronization even in varispeed operation
    Lock range: 31.5kHz - 50kHz
    Jitter when synced to input signal: < 1

  • Digital Inputs: SPDIF optical (ADAT2)

    1x optical, according to IEC 60958
    Accepts Consumer and Professional format
    Lock range: 27kHz - 200kHz
    Jitter when synced to input signal: < 1 ns
    Jitter suppression: > 30dB (2.4kHz)

  • Digital Inputs: Word Clock

    BNC
    Internal termination 75Ohms switchable
    Automatic Double/Quad Speed detection and internal conversion to Single Speed
    SteadyClock guarantees super low jitter synchronization even in varispeed operation
    Not affected by DC-offsets within the network
    Signal Adaptation Circuit: signal refresh through auto-center and hysteresis
    Overvoltage protection

  • Digital Inputs: Word Clock (Conti.)

    Level range: 1.0 Vpp - 5.6 Vpp
    Lock Range: 27kHz - 200kHz
    Jitter when synced to input signal: < 1 ns
    Jitter suppression: > 30dB (2.4kHz)

  • Digital Outputs: MADI

    Optical via FDDI duplex SC connector
    62.5/125 and 50/125 compatible
    Cable length: up to 2000 m
    Coaxial via BNC, 75Ohms
    Output voltage 600 mVpp
    Cable length: up to 100 m
    Generates 56 channel and 64 channel mode, plus 96k Frame
    Standard: up to 64 channels 24 bit 48kHz
    S/MUX / 96k Frame: up to 32 channels 24 bit 96kHz
    S/MUX4: up to 16 channels 24 bit 192kHz

  • Digital Outputs: AES/EBU

    XLR, transformer-balanced, galvanically isolated, according to AES3-1992
    Output level Professional 4.5 Vpp, Consumer 2.6 Vpp
    Format Professional according to AES3-1992 Amendment 4
    Format Consumer (SPDIF) according to IEC 60958
    Single Wire mode, sample rate 28kHz up to 200kHz

  • Digital Outputs: ADAT

    2x TOSLINK
    Standard: 2 x 8 channels 24 bit, up to 48kHz
    Double Speed (S/MUX): 2 x 4 channels 24 bit 96kHz
    Quad Speed (S/MUX4): 2 x 2 channels 24 bit 192kHz

  • Digital Outputs: SPDIF optical (ADAT2)

    Format Consumer (SPDIF) according to IEC 60958
    Sample rate 28kHz up to 200kHz

  • Digital Outputs: Word Clock

    BNC
    Max. output voltage: 5 Vpp
    Output voltage at 75Ohms termination: 4.0 Vpp
    Output impedance: 10Ohms
    Frequency range: 27kHz - 200kHz

  • Power supply

    Internal switching PSU, 100 - 240 V AC, 36 Watts

  • Idle power consumption

    19 Watts

  • Typical Power Consumption

    22-25 Watts

  • Total Depth

    240mm (9.45")

  • Temperature range

    +5 to +50deg. C (41 to 122 deg. F)

  • Relative humidity

    < 75%, non condensing

  • Dimensions (WxHxD)

    Including Rack Ears: 440 x 44 x 210mm (17.32 x 1.73 x 8.27")
    Without Rack Ears: 440 x 44 x 210mm (17.32 x 1.73 x 8.27")

  • Weight

    3 kg ( 6.6 lbs)

  • UPC Code

    4260123363109

About RME Fireface UFX+

20th Anniversary Flagship Interface
The Fireface UFX+ becomes the center of any multitrack studio because it is able to handle up to 94 channels I/O with ease. With unprecedented flexibility, compatibility, the inclusion of DURec (Direct USB Recording) and RME's famous low latency hardware and driver designs, the Fireface UFX+ raises the bar to new heights.

Packed with features not found on its older sibling, including MADI I/O (188 channels of I/O, 128 channels more than the Fireface UFX), a more powerful DSP, USB 3.0, Thunderbolt technology and a new optional remote control firmly places the RME Fireface UFX+ as the new reference in multitrack recording, mixing and monitoring.

You name it, you connect it
Its flexibility in connectivity and expansion is unrivalled - Analog, ADAT, MADI, AES, SPDIF. USB 2, USB 3 and Thunderbolt technology are standard on the Fireface UFX+. The UFX+ has an impressive channel count: 12 analog + 16 ADAT + 2 AES + 64 MADI = 94 channels input plus output = 188 channels in total. Thunderbolt technology gives the Fireface UFX+ real PCI Express audio performance under Mac and Windows, with lowest latency, lowest system overhead and lowest CPU load. The Fireface UFX+ is fully Thunderbolt technology compatible under Windows, including hot-plugging.

All new AD/DA converters, optimized analog I/O circuits, as well as improved SNR and THD values guarantee pristine, crystal clear and transparent audio. A new PAD-free mic circuit design with +18 dBu maximum input level and 75 dB gain range serves even the most critical recording situation and source trouble-free.

New low impedance Hi-Power phones outputs (2 Ohms) with +19 dBu maximum output level provide ample output power as well as volume on any phones, high or low impedance.

Comprehensive MADI Connectivity
The Fireface UFX+ opens the doors to a host of RME and 3rd party digital and analog I/O solutions. Expanding your analog channel count, the ability to route/mix within the digital domain through numerous sources presents many flexible options. Multiple external MADI devices can also be connected in series.

To further enhance MADI flexibility, the Fireface UFX+ boasts some typical RME-style features. For example in USB 2 mode, which is limited to 30 channels I/O (12 analog plus 16 ADAT plus AES), the MADI I/O is still available via RME's integrated hardware mixer TotalMix FX. Word Clock I/O (BNC) can be switched to MADI I/O (coaxial) and a special split mode even supports the use of both MADI I/Os simultaneously, with 32 channel each on optical and coaxial.

ARC USB Remote Control - Plug'n Play Plus
The ARC USB connects to your computer via USB and talks to TotalMix FX directly. It has 15 freely assignable and illuminated buttons, one encoder wheel and a TS jack to connect a foot switch.

The ARC USB is a USB 1.1 MIDI remote control for the Fireface UFX+. Thanks to operating as a UAC 1 class device, it is natively compatible to Windows and Mac OS X. As soon as it is present in the operating system, TotaIMix FX will automatically detect the ARC USB and communicate with it via simple MIDI remote commands to control the UFX+.

TotalMix FX
Since 2001, TotalMix has added unlimited routing and mixing to RME audio interfaces. Its unique capability to create as many independent submixes as output channels available, turned it into the most flexible and powerful mixer of its kind.

With supported hardware, TotalMix FX includes a complete effects system, which not only adds flexibility to the recording chain, but also makes latency saddled software solutions obsolete. TotalMix FX can completely replace an external mixer, enabling the creation of multiple latency-free monitor mixes with EQ, Dynamics, Reverb and Delay for any outputs, incl. main monitors and headphone mixes for musicians.

TotalMix FX for iPad App
TotalMix FX for iPad adds full control over hardware mixer and DSP effects for Fireface UFX+, UFX, UCX, 802, Babyface, Babyface Pro and MADIface Pro when in Class Compliant Mode and lets you create, store and load complete mixes directly from the iPad

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • RME Fireface UFX+ USB 3.0 and Thunderbolt Audio Interface
  • 1.8m USB 3.0 Cable
  • Power Cord
  • Manual
  • Driver CD
  • RME 6 Month Limited Warranty
