Key Features

  • Control your LED lighting with ease using this versatile DMX decoder for dynamic shows.
  • Achieve flicker-free video with adjustable PWM from 500Hz to 30kHz on your LED fixtures.
  • This RoscoLED DMX interface supports multiple connections: 5-Pin XLR, RJ45, & terminals.
  • Power up to 12 LED channels, each at 5A, making your lighting setup robust and reliable.
  • Operate confidently in a range of environments with a temperature range of -4° to 122°F.
  • This FCC & CE certified DMX decoder ensures safety and compliance for professional use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$29.99
2-Year Adorama Protect$49.99
3-Year Adorama Protect$59.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does the RoscoLED Variable PWM DMX Decoder do?

The RoscoLED Variable PWM DMX Decoder is designed to control RoscoLED products. It operates in both DMX and Stand-Alone Modes, allowing you to manage your lighting setup with or without a DMX console. It also allows you to adjust the Pulse Width Modulation (PWM) and Gamma Curve of the unit for precise control over your lighting environment.

Can I use the RoscoLED Variable PWM DMX Decoder without a DMX console?

Yes, the RoscoLED Variable PWM DMX Decoder operates in both DMX and Stand-Alone Modes. This means you can control your RoscoLED products even without a DMX console.

What is Pulse Width Modulation (PWM) and Gamma Curve adjustment?

Pulse Width Modulation (PWM) and Gamma Curve adjustment are advanced features of the RoscoLED Variable PWM DMX Decoder. They allow you to fine-tune the lighting environment of your RoscoLED products, giving you complete control over your lighting setup.

Is the RoscoLED Variable PWM DMX Decoder user-friendly?

Yes, the RoscoLED Variable PWM DMX Decoder has a user-friendly interface. It's designed to make it easy for both professional and amateur lighting enthusiasts to operate and adjust settings.

Who can use the RoscoLED Variable PWM DMX Decoder?

The RoscoLED Variable PWM DMX Decoder is ideal for anyone who wants precise control over their RoscoLED lighting products. This includes both professional and amateur lighting enthusiasts.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Rosco RoscoLED Decoder Specifications

  • Input Voltage

    12 - 24VDC

  • Output Current

    12 x 5A

  • Output Power

    12 x (60-120W)

  • DMX In/Out

    5-Pin XLR, RJ45, Wire Terminals

  • PWM Adjustment

    500Hz - 30kHz

  • IP Rating

    IP20

  • Operating Temperature

    -4 Degree to 122 Degree F (-20 Degree to 50 Degree C)

  • Approvals

    FCC Certified
    CE Certified

  • Dimensions

    6.54 x 3.93 x 1.5" (166 x 100 x 38mm)

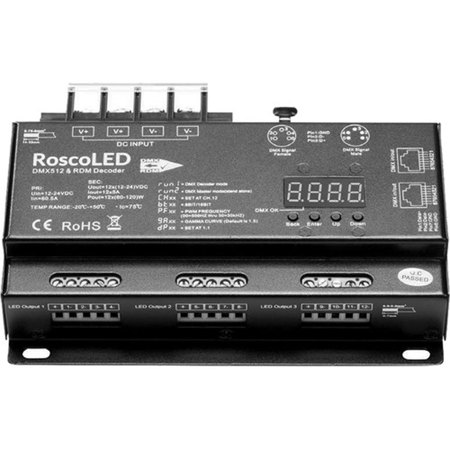

About Rosco RoscoLED Decoder

The RoscoLED Variable PWM DMX Decoder, 12 x 5A, is a high-performance device meticulously engineered for the most challenging lighting applications. This decoder is designed to seamlessly control RoscoLED products, with the flexibility of operating in both DMX and Stand-Alone Modes. This means you can manage your lighting setup with or without a DMX console, providing unparalleled versatility for lighting professionals.

What sets the RoscoLED DMX Decoders apart is their advanced functionality that allows users to adjust the Pulse Width Modulation (PWM) and Gamma Curve of the unit. This feature offers comprehensive control over your RoscoLED products, enabling you to fine-tune your lighting environment to your exact specifications.

Ideal for both professional and amateur lighting enthusiasts, the RoscoLED Variable PWM DMX Decoder, 12 x 5A, is a robust solution for managing complex lighting systems. Its user-friendly interface and advanced features make it a must-have tool for anyone seeking precise control over their RoscoLED lighting products.

Rosco RoscoLED Decoder Features

  • 8-Bit and 16-Bit modes
  • Adjustable Dimming curve Gamma: 0.1 to 9.9
  • Easy-to-read digital display
