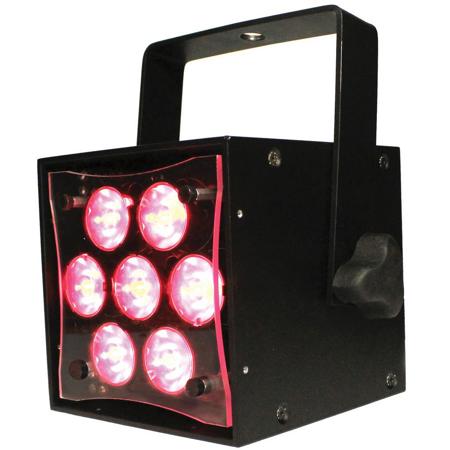

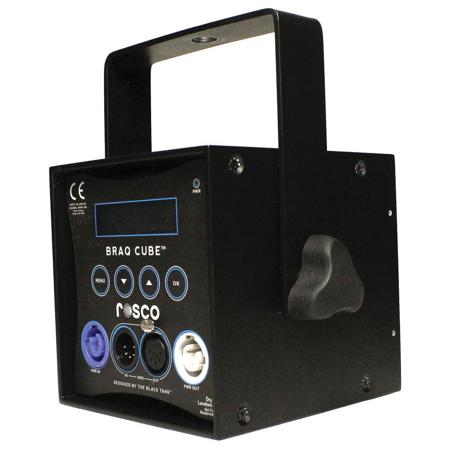

Rosco Braq Cube 4C RGBW LED Light, Black, With Power Cord

SKU: ROBC4CLPCB

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Rosco Braq Cube 4C Specifications

  • Power Cord

    8-ft AWG16 cord with Neutrik Powercon and 3-prong Edison ends

  • LED

    7 x 12W Osram Ostar multi-chip

  • Output

    1800 Lumens (no lens)

  • Lumen Maintenance

    80,000 hours B10 L70 at 25½C
    (LM79-08 Standard)

  • Color Range

    4.2 billion discrete mixes (255 x 255 x 255 x 254)

  • Operation

    DMX: 8 or 16 bit DMX512
    Manual: Full Text LCD user interface sets color output

  • Input Voltage

    90 - 240 VAC 50/60Hz

  • Power/AC Input

    Neutrik Powercon input and pass-thru

  • Data

    5-pin XLR Male, 5-pin XLR Female - DMX

  • Power Consumption

    100 Watts at maximum output

  • Operating Temperature

    -13½ to 113½ F (-20½ to 45½ C)

  • Humidity

    0 - 95% non condensing

  • Housing

    Powder coated aluminum extrusion (1/8 in wall)

  • Approvals and Listings

    FCC Class A Radiated and Conducted
    ETL / UL Standards 1573 and 8750
    cETL / CSA C22.2#166-M1983
    CE
    RoHS Compliant
    IP20 Rated
    Dry locations only

  • Dimensions

    5 x 5 x 5.3" (127 x 127 x 135mm)

  • Weight

    3.5 lbs (1.6 kg)

About Rosco Braq Cube 4C

Size matters - and Braq Cubes deliver where others can't! The Braq Cube 4C packs an unprecedented 100 watts of color-mixing output into just a 5 inch cube! Despite its surprisingly small size, the Braq Cube pushes out more than enough light to replace conventional wash lights in broadcast studios, on stage, in film sets or in commercial architectural installations.

Using the best-in-class RGBW quad-chip emitters, the Braq Cube 4C produces a gorgeous palette of saturated, mid-tone and pale tint colors that can be dialed in at the touch of a button. Thanks to the high quality of the emitters, the Braq Cube 4C is also capable of mixing a "true white" that is superior to the unflattering mixed amber compromise found in other color mixing lights. The single chip optic eliminates multi-colored shadows and creates a powerful, fully blended color wash wherever the designer needs it.

• Powerful, quad-chip, RGBW LED emitters blend light without shadow fringing
• RGBW color mixing offers a dramatic, saturated palette that is balanced with a subtle, nuanced range of tints and accent colors
• Optional "Filament Mode" mimics the delayed blackout glow of an incandescent lamp
• Low 100W power consumption puts more than 40 fixtures on a single 20A circuit
• No expensive power supply unit or ballast required. Directly connect 90-240 VAC mains power
• Comes with a complete lens set including: 20½ spot, 40½ medium and 60½ wide flood
• Flicker free DMX dimming (0 ~ 100%) and control
• Intuitive full text LCD panel for manual operation
• Compact design suitable for mounting in small spaces or architectural installations
• Track lighting mounting adapters available for many common track brands or with our fully integrated DMX Data Track.
• Auto temperature sensing with fault detection and protection
• ETL/CE listed

Color and Control
Using RGBW emitters, mixing the right color is simple for the Braq Cube 4C. However, the quality of that light is what sets it above the crowd. Powered by the newest generation of 4-channel chips from Osram, the fully blended color mix of the Braq Cube 4C offers superior rendering and a single, fringe-free shadow. Combined with a complete set of lenses in 20½, 40½ and 60½ beam spreads, the Braq Cube 4C gives a lighting designer all the control they demand from a modern luminaire.

Innovative Compact Design
Very little space is wasted in the elegant, rugged design of the Braq Cube. The unique, patented heat management system allows 100 watts of LEDs to be packed into a tiny, self-contained 5 inch cube - a fraction of the space needed by other comparable, 100W lights on the market. The Braq Cube has been engineered to be durable, reliable and affordable without sacrificing the qualities expected by demanding lighting professionals.

Future Proof
Using heat sinks, power supplies and electronics assemblies that are common to both models, the Braq Cube luminaires have been designed to allow their engineers to quickly respond to improvements in LED technologies without significant alterations to the base unit. Braq Cubes are completely connectorized internally - allowing new LED boards to be installed in minutes. This feature is excellent for repairs and upgrades, or for converting a WNC to a 4C in the field.

Versatile and Modular
Braq Cubes are small enough to be built into scenery or soffits, and light enough to mount as a track light. A novel yoke design allows cubes to be easily hung with c-clamps, configured in linear strips or in stacked arrays, mounted on c-stands, fit with floor trunions, converted to canopy mount, retrofit with track hanging adapters - or virtually any configuration an installer requires.

What's in the box:

  • Rosco BRAQ Cube 4C LED Light
  • Power Cord
  • 20 & 40 and 60 Lenses
  • Rosco 1 Year Warranty
