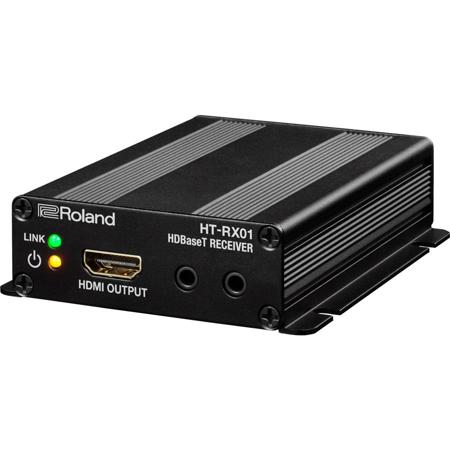

Roland HT-RX01 HDBaseT Receiver
SKU: ROHTRX01
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Reviews about this item
Review Summary
2021-03-19T08:54:22
Rated 5 out of 5
Roland RX 01
Great product! We have 3 of them
KYLE S.
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest In Your Gear and Peace Of Mind!
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Accidental Damage
Protect your product from drops, spills, and more.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Malfunction Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
Roland HT-RX01 Specifications
Input Formats
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
RGB formats: Conforms to VESA DMT Version 1.0 Revision 11
The maximum refresh rates of RGB is 75Hz (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 60Hz)
1920 x 1200/60Hz: Reduced blankingAudio Formats
The maximum is PCM 8ch, Dolby Digital, True HD DTS-HD Master Audio
Input Connectors
1x RJ45
Output Connectors
1x HDMI: Type A (19 Pins)
Other Connectors
1x RS-232: 9 pins D-sub type
Communication method: Synchronous (asynchronous), full-duplex
Communication speed: 9600 bps, 19200 bps, 38400 bps, 115200 bps
Data length: 8 bit
Stop bit: 1 bit
Code set: ASCIITransmission distance
Maximum: 328.08'/ 100m
Operating temperature range
0 to 40 deg. C / 32 to 104 deg. F
Operating temperature humidity
10 to 85 % (no condensation)
Storage temperature range
-20 to 60 deg. C / -4 to 140 deg. F
Storage temperature humidity
10 to 85 % (no condensation)
Power Supply
2A AC Adaptor
Dimensions (W x D x H )
81 x 93 x 24mm / 3.19 x 3.66 x 0.94"
Weight
03kg / 6.61lbs (excluding AC adaptor)
UPC Code
761294507155
About Roland HT-RX01
FEATURED REVIEWS
Roland RX 01
By KYLE S.
Great product! We have 3 of them
What's in the box:
- Roland HT-RX01 HDBaseT Receiver
- AC Adapter
- 3x AC Plugs
- 6.5' RS-232 Conversion Cable
- 3x Ferrite Core
- Roland 1 Year Parts and 90 Day Labor Limited Warranty
