Rolls 4-Channel RCA Distribution Amplifier
See all Rolls items

Rolls 4-Channel RCA Distribution Amplifier, +12 dBV Max Input Level, >90 dB S/N Ratio

SKU: ROLDA134
(1)

This item is no longer available.

Recommended Alternatives

Rolls DA134: Picture 1 regular

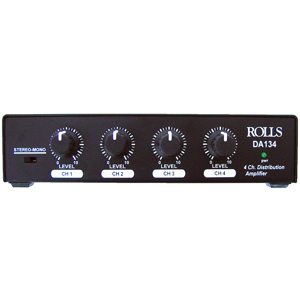

Rolls DA134 4-Channel Professional Stereo RCA Distribution Amplifier
$159.00$139.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-09-03T19:34:43

Rated 5 out of 5

Quality built.

Does exactly what I needed.

Brett B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Rolls 4-Channel RCA Distribution Amplifier Specifications

  • Input Impedance

    10 K Ohms

  • Max Input Level

    +12 dBV

  • Output Impedance

    470 Ohms

  • Max Output Level

    +12 dB

  • Max Gain

    20 dB

  • S/N Ratio

    >90 dB

  • Cross Talk

    -70 dB (stereo)

  • Frequency Response

    DC - 60 kHz, +/- 1 dB

  • THD

    <.008%

  • Power

    15 VDC

  • Dimensions

    6.5" x 3.5" x 1.5" / 165.1 x 88.9 x 38.1 mm

  • Weight

    1.19 lbs / 0.54 kg

  • UPC Code

    675889013405

About Rolls 4-Channel RCA Distribution Amplifier

FEATURED REVIEWS

Quality built.

By Brett B.

Does exactly what I needed.

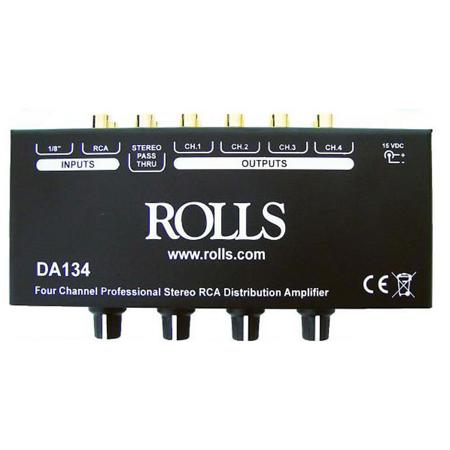

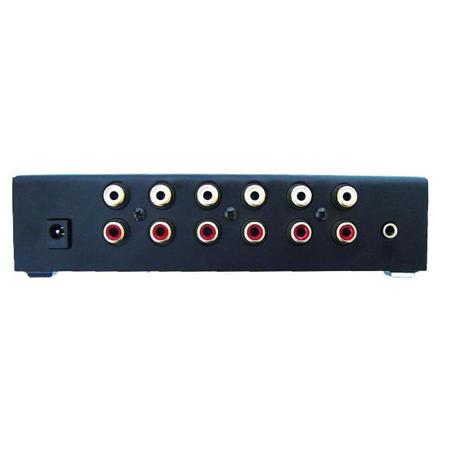

Designed for high end RCA audio distribution the Rolls DA134 is a four-channel distribution amplifier. RCA and 1/8" inputs that can be switched from mono or stereo. The DA134 will distribute a mono signal to eight outputs, or a stereo signal to four stereo outputs. The outputs are designed to drive line level signals. The DA134 is the perfect distribution amp anywhere high quality sound distribution is required.

Rolls 4-Channel RCA Distribution Amplifier Features

  • Expands the output of a stereo device to multiple outputs
  • Can raise the output level to true line level for any output
  • Stereo 4 channel distribution amplifier
  • Front panel volume controls
  • Mono or Stereo operation
  • DC low end frequency for audiophile frequency response
  • Small compact design
  • Accepts inputs directly from iPad / iPod or laptop
  • Stereo pass thru: For connection to another DA134

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Stereo 4 channel distribution amplifier
  • Front panel volume controls
  • Mono or Stereo operation
  • Small compact design
  • Accepts inputs directly from iPad / iPod or laptop
  • Stereo pass thru

What's in the box:

  • Rolls 4-Channel RCA Distribution Amplifier
  • PS27s Power Supply
  • Rolls 1 Year Parts and Labor Limited Warranty
